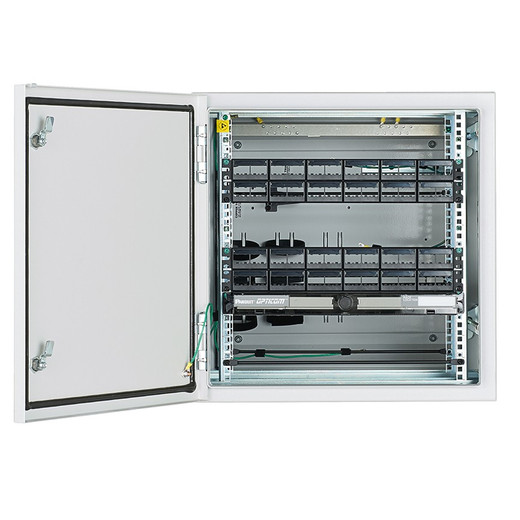

Panduit ZDF242430 Pre-Configured Industrial Distribution Frame

Overview

The Panduit ZDF242430 is a 12RU pre-configured Industrial Distribution Frame (IDF) purpose-built to house and protect two 19-inch rack-mount switches on the factory floor. Part of Panduit's IndustrialNet™ product line, this enclosure ships with the mounting hardware, cable management, and fiber infrastructure already integrated — reducing field assembly time and eliminating compatibility guesswork when deploying industrial network enclosures in harsh manufacturing environments.

Where a standard IT rack enclosure would fail from contaminants, vibration, and temperature swings typical of production floors, the ZDF242430 is rated IP66 and UL Type 4/12, meaning it blocks high-pressure water jets and dust ingress completely — the minimum you should accept for anything mounted near wash-down zones, machining cells, or outdoor-adjacent areas. The carbon steel construction with powder-coat finish adds the mechanical durability that injection-molded enclosures can't match in heavy industrial settings.

Key Features

• 12RU / Two-Switch Capacity: sized to accommodate two 19-inch rack-mount switches in a single footprint. If you're running a standard IDF closet model on the plant floor — one switch per zone — this enclosure handles the entire node without a second cabinet. Overall dimensions are 24 in. (611.9 mm) tall × 23.62 in. (599.9 mm) wide, which fits standard industrial footprint allocations and can mount to DIN rail via the included bracket.
• IP66 / UL Type 4/12 Environmental Rating: the combination of IP66 (no dust ingress, no water from high-pressure jets) and UL Type 4/12 (indoor/outdoor use, protection from windblown dust, rain, and splashing water) means this enclosure survives wash-down procedures and spray from cutting fluid or coolant — conditions that void warranties on datacenter-class enclosures within weeks.
• UL 508A / cUL-Listed: UL 508A is the North American standard for industrial control panels. cUL listing covers CSA compliance for Canadian facilities. This matters at permit and inspection time: a UL 508A-listed enclosure simplifies the panel qualification process versus a self-assembled cabinet that requires separate component-level documentation for the AHJ.
• RoHS Compliance: restricts hazardous substances in the enclosure construction — required for any facility with EU export obligations or internal sustainability mandates. Verify your switch and patch panel selections carry matching RoHS compliance to maintain system-level status.
• Pre-Integrated Fiber Cassette and Two Patch Panels: the IDF ships with one fiber cassette, two patch panels, and structured cable management hardware already installed. On a greenfield deployment this eliminates a procurement cycle for internal infrastructure components and the labor associated with mounting and dressing them in the field.
• DIN Rail Mounting Bracket: included bracket enables mounting to standard DIN rail — common in PLC cabinets and industrial automation panels. If your network closet doubles as a controls cabinet, or if your facility standardizes on DIN-rail distribution, this eliminates a custom fabrication step.
• Grounding Infrastructure Included: grounding conductor, bar, and cable are included in the package. Industrial Ethernet deployments on factory floors are frequently plagued by ground loops and EMI if the network enclosure isn't properly bonded to the facility ground plane. Having a complete grounding kit in the box removes a common field-sourcing delay.
• Carbon Steel / Powder-Coat Construction: carbon steel resists the mechanical impacts common in industrial environments — forklifts, carts, and tooling contact that dent aluminum or crack polymer enclosures. Powder-coat finish (grey) provides corrosion resistance without the maintenance overhead of painted surfaces.

Integration and Compatibility

The ZDF242430 is designed to house standard 19-inch rack-mount switches — the IDF format is agnostic to switch vendor. Two full-depth switch positions are available within the 12RU space. The included cage nut rails follow standard EIA-310 19-inch rack spacing, so any 19-inch rack-mount network switch from major manufacturers fits without modification. The fiber cassette and patch panels ship pre-mounted but are field-replaceable if your fiber plant uses a different connector format. The DIN rail mounting bracket accommodates standard 35mm DIN rail per IEC 60715. Review the penetration template included in the package before cutting conduit entries — Panduit recommends a specific cable, fiber, and power penetration layout to maintain the IP66/Type 4 rating after installation.

What's in the Box

• 1x Pre-configured Industrial Distribution Frame (IDF enclosure, 12RU)
• 1x Fiber cassette
• 2x Patch panels
• Cage nut rails (qty per rail configuration)
• Cable management hardware
• DIN rail mounting bracket
• Grounding conductor, grounding bar, grounding cable
• Keys
• Penetration template for cable/fiber/power entry

Frequently Asked Questions

Q: What switch form factors does the ZDF242430 support?

A: The ZDF242430 accommodates two standard 19-inch EIA-310 rack-mount switches within its 12RU interior. Switch depth compatibility depends on the internal clearance of the enclosure — verify your specific switch depth against the internal dimensions before ordering high-port-count switches with deep chassis.

Q: Is the ZDF242430 rated for outdoor installation?

A: The ZDF242430 carries UL Type 4/12 and IP66 ratings. UL Type 4 covers outdoor use with protection from windblown dust and rain. However, confirm your specific installation conditions — direct sun exposure, extreme temperature ranges, and altitude can affect thermal management inside the enclosure. Review Panduit's penetration recommendations to maintain the IP66 rating after cabling.

Q: Does the ZDF242430 include fiber patch cords or only the cassette?

A: Based on available evidence, the package includes one fiber cassette but fiber patch cords are not listed among the included items. Source patch cords separately to match your fiber plant's connector type and length requirements.

Q: What standards does the ZDF242430 meet?

A: The ZDF242430 meets UL 508A (industrial control panel standard), cUL-listed per CSA, is rated UL Type 4/12 (and optionally 4X/4/12 configurations), carries IP66 environmental rating, and is RoHS-compliant for hazardous substance restrictions.

Q: Can the ZDF242430 be mounted to DIN rail?

A: Yes. A DIN rail mounting bracket is included in the package, enabling installation on standard 35mm DIN rail — useful in facilities where the network distribution point shares cabinet space with PLC or controls hardware.

Q: Is the ZDF242430 compatible with non-Panduit switches and patch panels?

A: The cage nut rails follow standard 19-inch EIA-310 rack spacing, so the enclosure accepts rack-mount equipment from any vendor. The pre-installed patch panels and fiber cassette are Panduit components, but they are field-replaceable if your structured cabling standard requires a different brand or connector format.

Ted Perry

The ZDF242430 addresses a problem I see on virtually every factory-floor networking project: integrators specify a quality managed switch, then house it in a general-purpose IT enclosure that fails within a year from wash-down contamination or vibration-loosened connectors. The IP66 + UL 508A combination on this enclosure isn't marketing — IP66 means you can run a direct water jet at it and the interior stays dry, and UL 508A listing means your industrial controls inspector has a recognized standard to check against rather than a field-built judgment call.

Technical Highlights:

• IP66 / UL Type 4/12 Dual Rating: IP66 blocks complete dust ingress and high-pressure water jets; UL Type 4/12 adds North American certification for indoor/outdoor use with rain and windblown dust. Most plant-floor enclosures carry one or the other — this ZDF242430 carries both, which matters in facilities where AHJs require UL-listed equipment and the environment demands the full IP66 water exclusion.
• Pre-integrated Infrastructure (Fiber Cassette + 2 Patch Panels + Cable Management): ordering an empty enclosure and sourcing internal components separately adds a procurement cycle and field assembly labor. The ZDF242430 ships with the fiber and copper infrastructure pre-mounted — on a 20-node factory expansion with IDFs at each machine cell, that difference adds up quickly.
• Complete Grounding Kit Included: grounding conductor, bar, and cable are in the box. On industrial Ethernet deployments, omitting proper enclosure grounding is one of the top causes of intermittent link errors and EMI-induced packet loss. Having the grounding kit spec'd and included eliminates a common field omission.

Deployment Considerations:

• The penetration template included in the package is not cosmetic — cutting conduit entries without following Panduit's recommended layout can break the IP66 and UL Type 4 seal. Plan your conduit routing before drilling, and use rated glands for each cable, fiber, and power entry point.
• At 24 in. tall × 23.62 in. wide, the ZDF242430 fits standard industrial cabinet footprints, but the 12RU interior is tight for two deep-chassis managed switches with full PoE+ cabling dress. Measure your switch depth and cable bend radius before finalizing mounting layout — there is no spare RU for a PDU unless you eliminate one patch panel.

The ZDF242430 is the right spec for greenfield machine-cell network nodes in automotive, food and beverage, or heavy manufacturing facilities — anywhere you need a UL 508A-listed, IP66-rated two-switch IDF that arrives infrastructure-ready and survives the production environment long-term.
