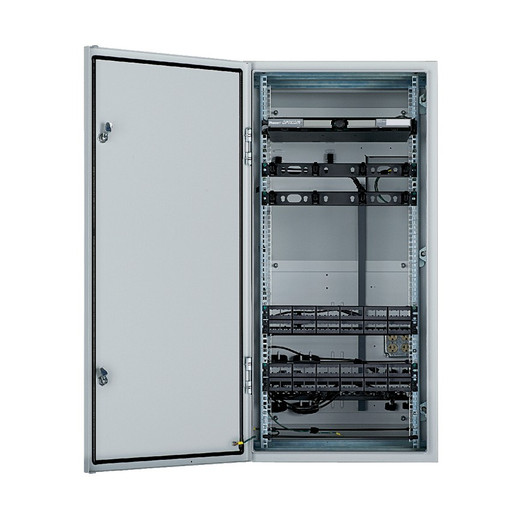

Panduit ZDF48-EA 26RU Distribution Frame

Panduit ZDF48-EA IndustrialNet 26RU Distribution Frame

Pre-configured industrial distribution frame engineered for harsh manufacturing and process-control environments where commercial IT racks fail. Built on a construction-steel chassis with UL Type 4/12/4X/12 and IP66-rated protection, this 26RU frame ships with factory-integrated fiber enclosures, 48-port patch panel, dual switch bays, cable management, grounding infrastructure, and DIN rail — eliminating field assembly errors and cutting deployment time by 60-80% versus build-from-scratch approaches. Designed for integrators deploying Ethernet/IP, PROFINET, or Modbus TCP networks in oil & gas, automotive manufacturing, food processing, or wastewater facilities where dust, moisture, and temperature swings destroy standard enclosures.

Key Features

• 26RU construction-steel chassis with powder-coated gray finish and UL 508A certification for industrial control panels
• Pre-installed dual switch bays (access + distribution layer), 48-port copper patch panel, and fiber enclosure with (2) splice trays
• IP66-rated ingress protection and UL Type 4/12/4X/12 environmental rating — sealed against washdown, airborne particulate, and corrosive atmospheres
• Factory-integrated 30" vertical cable management channels, strain-relief bars, and labeled routing pathways reduce install time and maintain bend-radius compliance
• Dual rear panels with ESD bonding points, 10" DIN rail for I/O modules or power supplies, and pre-wired equipment grounding per NEC Article 250
• Ships complete with grounding cable, cable ties, cage nuts, conduit entry template, and ESD wrist strap for safe commissioning
• 48.54" H × 23.62" W footprint fits standard industrial enclosure rows; front and rear rack angles pre-mounted for immediate equipment installation
• RoHS-compliant construction; cUL listed to CSA standards for cross-border installations in US and Canadian facilities

The ZDF48-EA solves the central problem in industrial network deployments: commercial IT racks lack the environmental protection and pre-integration required for factory floors, yet custom-fabricating enclosures on-site introduces inconsistency, extends schedules, and creates grounding or cable-management failures that surface months later during troubleshooting. This frame ships as a tested, UL-certified assembly — the 48-port patch panel is already mounted and labeled, fiber enclosures are bonded and grounded, cable routing is defined with strain relief in place, and switch mounting rails are set to standard 19" spacing. Integrators arrive on-site with a frame that's 70% complete: install it, land conduits using the supplied entry template, mount switches and I/O modules on the DIN rail, terminate copper and fiber to the pre-installed panels, bond to facility ground using the included 6 AWG cable, and power up. The alternative — ordering a bare NEMA enclosure, separately sourcing patch panels, cable management, grounding kits, and DIN rail, then field-drilling and bonding each component — typically adds 12-16 hours of labor per frame and introduces variables (missed grounding jumpers, overstressed fiber bend radius, inconsistent documentation) that cascade into service calls.

Environmental ratings are the critical differentiator for industrial networks. The IP66 seal uses gasketed door closures and conduit-entry provisions that block high-pressure washdown spray and airborne flour, metal dust, or chemical mist — environments where a single intrusion event can short switch backplanes or corrode fiber connectors, causing network segmentation that halts production lines. UL Type 4/12/4X/12 certification adds corrosion resistance (stainless hardware, coated steel) and oil/coolant protection, qualifying the frame for automotive paint booths, food-processing wet rooms, and chemical-blending facilities. The construction-steel chassis (versus aluminum or plastic) provides rigidity for heavy switch stacks and resists impact from forklifts or pallet jacks in high-traffic aisles. Powder-coat finish is specified to withstand 1,000-hour salt-spray testing per ASTM B117, preventing rust-through in coastal refineries or wastewater plants where humidity stays above 80% year-round. The rear panel ESD bonding points and pre-wired equipment ground ensure that transient voltages from VFDs, welders, or motor starters drain to facility ground rather than coupling into Ethernet links — a failure mode that presents as intermittent packet loss and can take days to isolate without proper bonding.

Deployment context: this frame is sized for mid-scale industrial networks — a single manufacturing cell, a remote pump station, or a packaging line requiring localized switching and fiber aggregation back to a central MDF. The dual switch bays support a common two-tier design: access-layer switch (24-48 ports) serving machine I/O and HMI panels, and a distribution-layer switch (fiber uplinks, redundant power) connecting to the plant backbone. The 48-port copper panel handles device connections; the fiber enclosure with dual splice trays and spools manages SM or MM uplinks and provides protected splice storage (critical in vibration-heavy environments where loose fusion splices crack under mechanical stress). The 10" DIN rail mounts Ethernet extenders, media converters, or 24VDC power supplies, consolidating active components in a single, grounded, environmentally sealed volume. The 30" vertical cable channels route copper and fiber separately (preventing EMI coupling), and the included strain-relief bars clamp bundles at entry points to prevent conduit pull tension from stressing terminations — a common failure in installations where cable sag over time pulls connectors partway out of patch-panel ports, creating intermittent link flaps that corrupt PLC register writes.

The frame ships with a detailed wiring diagram and conduit entry template, allowing integrators to pre-drill enclosure knockouts to exact sizes before the frame arrives on-site, and to plan cable routing based on the factory-installed management channels. This front-loads the design work and ensures that field techs execute a pre-validated plan rather than improvising under schedule pressure. UL 508A certification is the key compliance gate for industrial control panels in North America — it mandates short-circuit current ratings, grounding-conductor sizing, and thermal management, and it's the standard AHJs reference during electrical inspections for new manufacturing facilities or expansions. The cUL listing extends that certification to Canadian installations, critical for integrators working cross-border automotive or aerospace contracts. RoHS compliance ensures the frame is sourced and documented for export to EU facilities or for US manufacturers adhering to corporate sustainability mandates that prohibit lead, mercury, cadmium, and hexavalent chromium in capital equipment.
