Panduit PZWMC26RR PanZone 26RU Rear Rail Kit

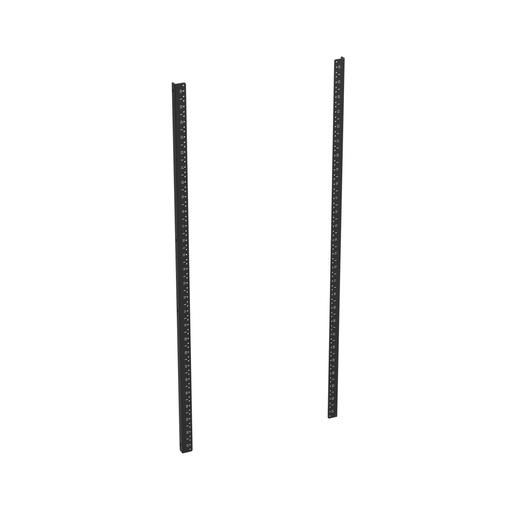

The Panduit PZWMC26RR rear rail kit solves depth-capacity problems in 26RU PanZone wall-mount cabinets by adding four-point mounting for equipment up to 26.8 inches deep. Standard two-post wall cabinets rely on front rails alone, creating cantilever strain when you rack deep switches, UPS units, or fully-loaded patch panels. This kit adds a dedicated rear rail pair that distributes load across front and back mounting points, preventing sag and reducing stress on front-rail threads. Designed exclusively for Panduit PanZone PZWMC** series 26RU wall cabinets, the kit ships as a matched pair of black powder-coated steel rails with pre-drilled EIA-310 spacing.

Key Features

• 26 RU rear rail pair provides four-point mounting for equipment up to 26.8" deep
• Eliminates front-rail cantilever strain on heavy or deep chassis
• EIA-310-D compliant hole spacing matches standard 19" rack equipment
• Black powder-coated steel construction matches PanZone cabinet finish
• Drop-in retrofit for existing PanZone PZWMC** 26RU installations
• 45.6" rail height spans full 26U usable space with top and bottom clearance

Each rail measures 45.6 inches tall by 1.3 inches wide, with square hole patterns every 0.625 inches (one rack unit) to accept cage nuts or clip nuts. The steel gauge and powder coating match Panduit's cabinet standards, so rails blend visually and thermally with the enclosure. Mounting hardware threads into the cabinet's existing rear vertical channels — no drilling or modification required. The kit works with any combination of equipment: you can four-point-mount a single deep switch at the top, two-point-mount shallow patch panels in the middle, and leave the lower rear rails unused for future expansion. Rail holes align with cage-nut installation from either the front or rear of the cabinet, so you can service equipment without removing adjacent devices.

Typical deployments include enterprise edge closets where a 26RU wall cabinet replaces a full-height floor rack but houses the same PoE switches and UPS that require rear support, and datacenter remote hands locations where deep console servers or KVM switches exceed the 12–15 inch depth most wall cabinets handle on front rails alone. The kit is especially useful when mixing manufacturer ecosystems: a Cisco Catalyst 9300 switch (16.7" deep with cable-management arms) and an APC SMT1500RM2U UPS (20.9" deep) both rack cleanly with rear rail support, preventing the forward tilt that stresses M6 cage nuts over time. Because the rails are sold as a discrete kit rather than bundled with the cabinet, you can retrofit existing PanZone 26RU installations without replacing the entire enclosure — a critical advantage when the cabinet is already wired and in production.

The PZWMC26RR ships in a single carton with two rails and mounting fasteners; no special tools beyond a Phillips screwdriver are required for installation. Panduit backs the kit with their standard manufacturer warranty, and the design meets EIA-310-D rack standards for hole spacing and load distribution. For installations where you know equipment depth will stay under 12 inches, rear rails are optional; for anything deeper, or any environment where you plan to add UPS or stacked switches later, installing rear rails during the initial cabinet build prevents the need to unrack equipment for a retrofit.
