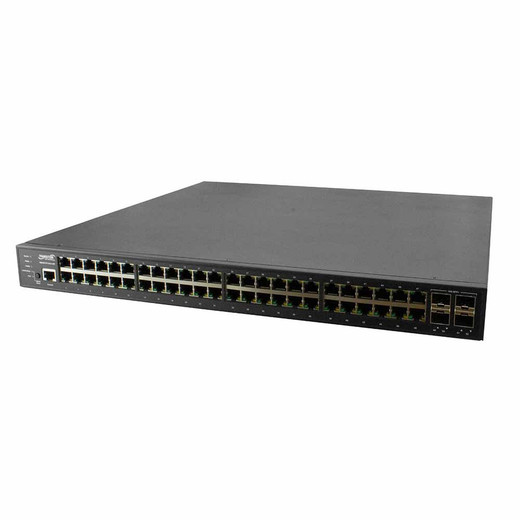

Transition Networks SM48TAT4XA-RP-NA 48-Port Gigabit PoE+ Managed Switch
Overview
The Transition Networks SM48TAT4XA-RP-NA is a 48-port managed Gigabit switch engineered for enterprises deploying converged IP security and data infrastructure. Each of the 48 ports delivers 10/100/1000 Mbps Ethernet connectivity with Power over Ethernet+ (PoE+) capability — meaning every port can supply up to 30W of power to connected devices like IP cameras, wireless access points, and VoIP phones without requiring separate power injectors. The switch maintains a 32K MAC address table, adequate for medium to large network segments without performance degradation. Managed operation enables granular VLAN configuration and QoS prioritization, critical when surveillance traffic competes with general data traffic on the same wire.
Key Features
- 48 × 10/100/1000 Mbps PoE+ Ports: Each port supplies up to 30W at 802.3at+ standard. This means you can power full-featured 1080p and 4K cameras, high-power access points, and even some PTZ motors directly from the switch without daisy-chaining power supplies. Critical for large deployments — avoids the cost and management overhead of per-device UPS backup.
- Managed Layer 2 Operation: Full VLAN trunking and 802.1p/DSCP QoS allow you to isolate surveillance traffic (VLAN 100) from guest Wi-Fi or office data (VLAN 200), preventing a surveillance spike from strangling your office network. Port mirroring supports packet capture for forensic investigation.
- 32K MAC Address Table: Handles 32,000 learned MAC addresses without forcing you into fragmented network designs. In practice, this supports dozens of camera and access point deployments within a single L2 broadcast domain without churn or address-table exhaustion.
- Rack-Mountable Chassis: 19-inch form factor with mounting hardware included. Fits standard enterprise rack infrastructure, so your network integrator doesn't need to improvise with wall brackets or shelf adapters.
- TAA Compliance: Meets Trade Agreements Act requirements — acceptable for U.S. federal and state government procurement. Simplifies RFQ workflows if you're integrating for a government or defense contractor end-user.
- Managed Switching and Spanning Tree: Supports STP/RSTP for redundancy. In a dual-switch architecture with ring topology, a cable cut triggers automatic failover within seconds, maintaining surveillance uptime on mission-critical sites.
Integration & Compatibility
The SM48TAT4XA-RP-NA works with any standard PoE+ device: Axis, Hikvision, Dahua, Uniview, Hanwha, and OEM IP cameras; Cisco, Arista, and Ruckus access points; and most SIP phones. Backward-compatible with legacy 10/100 equipment, so you can mix old and new hardware without media converters. For network switches deployments, confirm upstream switch capacity and power budget — a fully loaded 48-port rack with 30W per port requires substantial power delivery at the cabinet.
When evaluating PoE power planning, account for the actual draw of your connected devices. A 4K camera at 15W, an access point at 12W, and a phone at 8W totals 35W per group of three ports. A 48-port switch will not sustainably source full 30W on every port simultaneously — ensure your facility power infrastructure and UPS capacity support peak load.
When to Choose a Different Model
If you need 10 Gigabit uplinks to a core switch, this model tops out at 1 Gbps on all ports — upgrade to a switch with 10G SFP+ module slots. If your deployment is small (under 12 cameras) and already has a PoE-capable router, a smaller 8- or 16-port managed switch will cut capital cost. For unmanaged plug-and-play simplicity without VLAN or QoS granularity, consider the unmanaged variants in the Transition Networks catalog — they cost less but forfeit traffic control.
Frequently Asked Questions
Q: What's the actual power budget of the SM48TAT4XA-RP-NA?
A: The switch is rated to deliver 30W per port at 802.3at+, but aggregate power supply capacity constrains the total available watts. Consult the datasheet or contact the vendor for the total PSU wattage; typical enterprise switches in this class supply 300–600W total, meaning you cannot run 30W on all 48 ports simultaneously. Plan for ~15–20W average per port in real deployments.
Q: Does the SM48TAT4XA-RP-NA support redundant power supplies?
A: The standard model uses a single power supply. For mission-critical surveillance sites, specify a redundant-PSU variant if available, or add an external UPS to the switch outlet to maintain uptime during brief power loss.
Q: Is the SM48TAT4XA-RP-NA suitable for a warehouse or outdoor environment?
A: No — this is an indoor, climate-controlled (0–50°C typical) switch. For hot/cold outdoor warehouses, request an industrial-grade variant with extended temperature specs or mount it inside a climate-controlled cabinet.
Q: Can I use this switch to replace my office network switch?
A: Yes, functionally. However, if your primary use case is surveillance, dedicating this switch to cameras and access points via VLAN isolation is cleaner than mixing office and security traffic. Reduces complexity and simplifies troubleshooting when (not if) a misconfigured camera floods the network.
Q: What VMS platforms does the SM48TAT4XA-RP-NA integrate with?
A: The switch itself is VLAN and QoS infrastructure — it doesn't integrate with VMS platforms directly. It supports any ONVIF camera, which works with Milestone XProtect, Genetec, Axis Companion, and others. QoS tagging on the switch helps prioritize camera streams in the VMS recorder's network buffer.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SM48TAT4XA-RP-NA is a solid workhorse for mid-market surveillance and access-point rollouts. The 48 PoE+ ports eliminate per-device power supplies and the managed feature set — VLAN, QoS, STP — gives integrators granular control over traffic shaping. That 32K MAC table is often overlooked but critical: if you're managing 40 IP cameras, 12 access points, and 20 miscellaneous IoT sensors across a large warehouse or office campus, you need a switch that won't choke on address learning.
Technical Highlights:
- 802.3at+ PoE+ on All 48 Ports: 30W per port means you can run high-resolution fixed cameras (12–18W typical), motorized zoom models (18–25W), and even small PTZ units (20–28W) without external power supplies. This cuts installation labor — one cable per camera, not two. In a 40-camera job, that's 40 fewer power injectors to cable, test, and troubleshoot.
- Managed VLAN + QoS: Port-based or VLAN-based traffic segregation prevents a runaway camera (or, worse, a broadcast storm from a misconfigured access point) from saturating the links serving your office network. 802.1p QoS tagging prioritizes video frames over email traffic, reducing latency jitter and improving live-view responsiveness on the VMS.
- 32K MAC Address Table: Prevents address-table churn in sprawling deployments. Cheaper consumer switches often max out at 8K or 16K MACs; once exceeded, switches begin selective MAC flooding, degrading throughput. The SM48TAT4XA-RP-NA handles a large, flat L2 network without contention.
Deployment Considerations:
- Power Budget Reality Check: The switch itself doesn't source unlimited 30W on every port. Total PSU capacity (typically 300–600W for this class) means you're budgeting ~12–15W average per port if you're running a fully loaded 48-port rack. If your camera lineup averages 20W per unit, you'll power roughly 18–24 cameras, not 48. Build your bill-of-materials accordingly and avoid the surprise when power delivery fails mid-project.
- No Built-in Redundancy at Standard Configuration: Single power supply and single uplink. For mission-critical sites, pair this with a second switch in a ring STP topology and add UPS. The extra cost buys you subsecond failover and justifies the investment if a security breach through a downed camera system means regulatory fines or liability.
The SM48TAT4XA-RP-NA punches hardest in multi-building campuses, large retail chains, and warehouse facilities where you're deploying 30+ fixed cameras and multiple access points and can afford a brief learning curve on VLAN configuration. If you're a system integrator servicing a mix of small and mid-market sites, stock this model — it's durable, manageable, and TAA-compliant enough to unlock government work.
