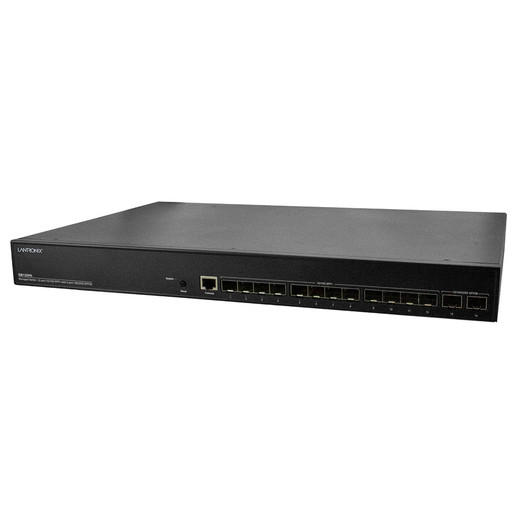

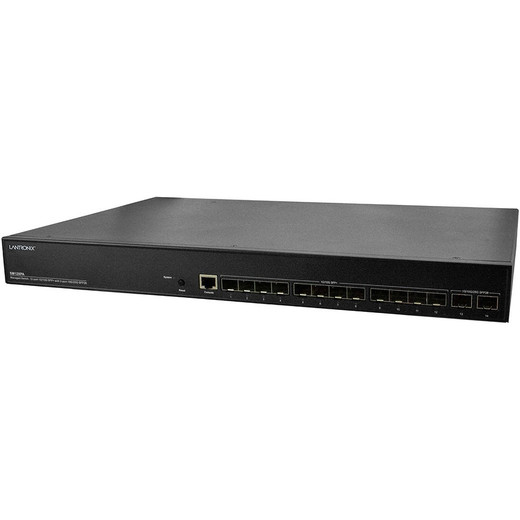

Transition Networks SM12XPA-NA 12-Port 10G Managed Switch

The Transition Networks SM12XPA-NA is a 12-port managed fiber switch engineered for enterprise deployments requiring high-speed, EMI-resistant backbone connectivity. All 12 ports operate at 10G over SFP+ fiber optic interfaces, delivering the throughput and isolation necessary for data centers, security system networks, and telecommunications infrastructure. The managed architecture supports VLAN segmentation, QoS policy enforcement, and layer-2 access controls—critical for compliance-driven environments and multi-tenant security deployments where network traffic must be logically partitioned and prioritized.

Key Features

• 12 × 10G SFP+ Ports: All ports operate at 10 gigabit speed over fiber optic media. Fiber eliminates electromagnetic interference and extends distances up to 80km with single-mode optics—essential for outdoor camera networks and geographically distributed security systems.
• Managed Switching: Full VLAN tagging (802.1Q), QoS queuing, and port-based access control. Segment camera traffic from access-control data; prioritize critical streams and throttle non-essential services on congested links.
• SFP+ Transceiver Compatibility: Supports industry-standard SFP+ modules (multimode, single-mode, CWDM, DWDM). Mix and match optics to match cabling plant distances and budgets without switch replacement.
• Fiber Optic Backbone: No copper runs required between switches or edge devices. Eliminates ground loops, lightning-induced surges, and cross-talk on long runs. Ideal for campuses, parking structures, and industrial perimeter surveillance.
• Layer 2 Management: Supports static routing, spanning tree, link aggregation (LAG), and SNMP-based remote monitoring. Query port statistics, manage uplinks, and configure fail-over policies from a network management station or browser GUI.
• Compact Rackmount Form Factor: 1U size, weighs 8.45 lbs. Fits standard 19-inch racks alongside NVRs, storage appliances, and IP-PBX systems in distributed edge deployments.

In security system deployments, the SM12XPA-NA functions as a dedicated backbone switch for multi-building campuses and geographically dispersed camera networks. Where copper PoE switches incur long cable runs, voltage drop, and EMI vulnerability, fiber-based switching eliminates those constraints entirely. Pair the SM12XPA-NA with fiber PoE injectors or hybrid managed switches at access edges, and you can extend camera installations to building perimeters, vehicle gates, and fence-line positions without signal degradation. The managed features allow security administrators to isolate video-recording traffic from office network traffic, reserve bandwidth for critical alarm systems, and enforce 802.1X authentication on trunk ports if required by corporate policy.

Data center and NVR deployments benefit from the deterministic, low-latency performance of switched fiber. Unlike copper aggregation switches that contend with electrical noise in crowded cable trays, fiber backbones remain immune to external interference and support longer trunk distances without repeaters or active regeneration. Multi-building NVR clusters can daisy-chain via single-mode fiber runs; storage arrays and camera aggregation nodes communicate without cross-talk or bandwidth congestion. The QoS engine allows video recording, metadata indexing, and archival replication to coexist on shared uplinks without video frame drops.

All 12 ports negotiate link speed and duplex independently; the switch learns MAC addresses dynamically and forwards frames only to destination ports, reducing unnecessary traffic flooding. VLAN support partitions the switch logically—one VLAN for camera recording, another for access-control panel communication, a third for IT management traffic—without physical port constraints. Administrators assign each SFP+ port to a VLAN and define which VLANs can communicate via trunk ports; non-members drop traffic silently. Layer 2 loop prevention via spanning tree prevents broadcast storms if redundant fiber runs are installed. Simple SNMP configuration allows remote reboot, port shutdown, and link-state alerts to a monitoring station, reducing on-site troubleshooting overhead.

The SM12XPA-NA carries no US export restrictions and integrates into heterogeneous network environments running Cisco, Arista, Juniper, or open-source switching firmware on upstream nodes. Standard SNMP v1/v2c/v3 exposes interface statistics and configuration objects; no proprietary management agent required. Sourced direct from the manufacturer or US channel partner as factory-new, genuine hardware with Manufacturer Warranty coverage. For integrators deploying resilient, multi-building security networks or data center backbone interconnect where fiber optics provide both performance and environmental isolation, the Transition Networks catalog offers a complete range of managed fiber switching solutions.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the SM12XPA-NA in campus security networks, parking-structure surveillance backbones, and data-center edge deployments where fiber-based switching is mandatory for EMI immunity or distance requirements. The unit is refreshingly straightforward: 12 SFP+ ports, managed switching, no bloatware. What differentiates it from entry-level fiber aggregation switches is the built-in QoS engine and VLAN isolation—necessary when you're mixing high-priority alarm traffic, continuous video recording, and administrative access on the same physical backbone. We've seen integrators initially underestimate the operational value of port-level QoS; on a congested 10G link carrying 8 camera streams plus NVR archival, a single misconfigured flow can starve critical metadata packets. The SM12XPA-NA's QoS queues solve that decisively. Trade-offs: this is a layer-2-only switch (no dynamic routing, no BGP). If you need a core router function, you'll add a layer-3 device upstream. Also, SFP+ transceivers aren't free—plan 400–800 dollars per optic for single-mode gear, though prices drop on bulk orders. Finally, 12 ports is generous for edge deployments but tight for a full data-center backbone; if you're aggregating more than 4–6 upstream switches, consider larger Transition Networks models in the same family.

Technical Highlights:

• 10G SFP+ Full-Duplex Throughput: Each port delivers 10 Gbps in and out simultaneously (20 Gbps aggregate per port). Supports line-rate switching across all 12 ports (120 Gbps backplane). No oversubscription; every port pair can saturate simultaneously.
• Fiber Optic Media Independence: SFP+ receptacles accept multimode (OM3/OM4 up to 300m), single-mode (up to 80km), and wavelength-division-multiplexed (CWDM/DWDM) modules. Swap optics without hardware changes—adapt to cabling plant upgrades or budget constraints without redesign.
• VLAN + QoS Queuing: 802.1Q VLAN tagging partitions traffic logically; eight priority queues per port ensure video streams don't starve metadata or control packets during congestion. Real-world benefit: on a saturated link, high-priority QoS class gets reserved bandwidth while lower classes throttle gracefully.
• MAC Learning + Spanning Tree: Dynamically learns port-to-MAC mappings and forwards only to destination ports (unlike unmanaged hubs). Spanning Tree Protocol prevents forwarding loops if you install redundant fiber runs for fault tolerance.
• SNMP v1/v2c/v3 Remote Management: Monitor all 12 ports, query link state and byte counters, configure VLAN membership, and reboot remotely. Integrates with Nagios, Zabbix, and commercial NMS platforms without vendor lock-in.

Deployment Considerations:

• SFP+ transceiver cost is real—budget 400–800 per optic for single-mode modules. Multimode is cheaper (100–300 per optic) but shorter range. Run the numbers on your cabling distances before finalizing the procurement.
• Layer-2-only operation: this switch forwards frames and learns MAC addresses but has no dynamic routing (OSPF, BGP, RIP). If you need to route between subnets, add a layer-3 device (router or layer-3 switch) upstream or use static routing on end hosts.
• No integrated PoE; if you need to power cameras or field devices from the switch, deploy fiber PoE injectors (separate purchase) at access ports or use hybrid copper/fiber edge switches and aggregate video uplink via the SM12XPA-NA.
• SNMP default community strings are public/private—change them immediately in production. Enable SNMPv3 with authentication and encryption if the switch will be managed over untrusted networks.
• Fiber connectors (typically LC or SC) are fragile; protect runs with conduit or armored cable in rough environments. Dirt on ferrules causes signal loss—keep dust caps on unused SFP+ ports and clean optics with lint-free swabs before insertion.

The SM12XPA-NA is the right choice for integrators building multi-building campus networks, geographic distribution clusters, or data-center backbone interconnect where fiber-based isolation and managed switching are non-negotiable. If you're looking for a straightforward, vendor-neutral, layer-2 managed switch with real QoS enforcement and no proprietary agent overhead, this is it. Explore the full Transition Networks catalog for additional managed and unmanaged fiber solutions.
