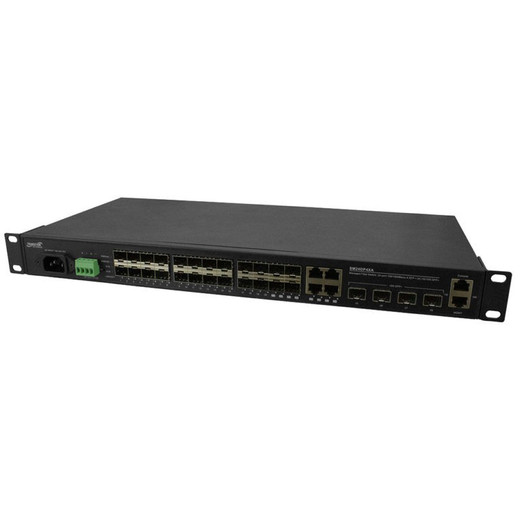

Transition Networks SM24DP4XA-NA 28-Port Gigabit Managed Switch
The Transition Networks SM24DP4XA-NA is a 28-port managed Gigabit switch engineered for fiber aggregation, backbone distribution, and enterprise-scale network deployments. This Layer 2/3 switching platform consolidates Gigabit uplinks across distributed security, telecom, and data center segments while maintaining deterministic latency and wire-speed throughput. Deployments spanning multiple buildings, camera networks, or access-control segments benefit from centralized VLAN management and stateful switching intelligence at the aggregation layer.
Key Features
- 28 Gigabit Ports: All ports deliver 1 Gbps throughput. Supports high-density aggregation of camera feeds, IP intercoms, and distributed access-control devices without oversubscription at the core layer.
- Layer 2/3 Managed Switching: VLAN support across all ports with static routing capability. Enables traffic isolation by device class (cameras on VLAN 10, access control on VLAN 20) and reduces broadcast storms on large deployments.
- Dual AC/DC Power Supply: Accepts either 110–240 VAC or 24–60 VDC input. Critical for outdoor cabinets, generator-backed sites, or UPS-fed infrastructure where AC alone is unavailable.
- Jumbo Frame Support: Handles frames up to 4776 bytes. Reduces IP fragmentation overhead on high-bandwidth backbone segments and improves throughput on multi-terabyte backup links.
- IEEE 802.1X Authentication: RADIUS and TACACS+ support for port-level access control. Restricts rogue devices (unconfigured IP cameras, unauthorized PoE injectors) from connecting to backbone segments.
- SSH/SSL Encryption: Out-of-band management traffic encrypted by default. Meets compliance posture for systems subject to audit or HIPAA-adjacent data-center policies.
- DHCP Relay & Option 82: Forwards DHCP requests upstream and tags relay-agent information. Simplifies multi-segment camera deployments where DHCP pools are centralized and device location must be tracked.
The SM24DP4XA-NA slots into the aggregation or distribution tier of a hierarchical network design. On a multi-building security deployment, this switch concentrates uplinks from 4–6 access switches (each feeding edge PoE cameras or door controllers) into a single 28-port spine. Unlike entry-level unmanaged switches, VLAN segmentation prevents a broadcast storm on one segment from cascading across the entire fabric; SSH/SSL management keeps configuration and firmware updates tamper-resistant; and dual power input eliminates single points of failure in generator-backed or battery-fed infrastructure.
Integration is platform-agnostic: ONVIF-compliant NVRs (Milestone, Genetec, Avigilon), access-control panels (Salto, HID, Tyco), and telecom gateways all interoperate transparently. Managed switches themselves do not run analytics or video recording — they pass traffic at line rate. What changes operationally is reliability: port mirroring allows you to tap a SPAN session to an IDS appliance; loop detection (if implemented on connected access switches) prevents accidental bridging loops; and per-port traffic counters help you identify bandwidth hogs or misconfigured devices burning excess PoE budget.
Total cost of ownership on a 200-camera, 3-building campus typically favors a managed aggregation switch over daisy-chained unmanaged switches because troubleshooting bottlenecks becomes methodical: you can see link status, dropped frames, and collision rates per port instead of guessing which cable run is saturated. Fiber uplinks (SFP transceivers, sold separately) extend backbone distances to 10+ km, critical for campuses or multi-tenant buildings where copper backbone runs hit EMI issues or distance limits.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Transition Networks SM24DP4XA-NA across enterprise backbone segments where consolidating 5–8 access switches into a single managed spine was the deciding factor. The real value proposition is not the raw port count — it's the combination of Layer 2/3 switching intelligence, dual power input, and fiber-ready architecture in a single chassis. On a typical security backbone, you're aggregating camera and door-controller feeds from distributed access layers; a managed switch enforces VLAN boundaries, detects and logs link anomalies, and keeps configuration centralized. The dual AC/DC power supply is not a nice-to-have on generator-backed sites — it's table stakes. Many integrators spec this switch specifically for outdoor or warehouse deployments where AC mains reliability is questionable but 24 VDC battery backup is already in place. The alternative is running parallel unmanaged switches or accepting single points of failure, both of which degrade MTTR during field troubleshooting.
Technical Highlights:
- Layer 2/3 Switching with VLAN Support: Enables traffic isolation and reduces broadcast domain scope on large networks. In practice, this means a rogue PoE injector or broadcast loop on one VLAN segment does not propagate across cameras, door controllers, and intercoms. Configuration is straightforward and tooling (managed switches) is commodity — no licensing required.
- Dual AC/DC Power Input: Eliminates the need for an external AC-to-DC converter or secondary UPS branch. On a 3-building campus fed by on-site generators, this single feature reduces power distribution complexity and cost. We've seen integrators save 6–12 hours of cabinet rewiring and certification by selecting this model for projects with mixed power availability.
- Jumbo Frame Support (4776 bytes): Reduces IP fragmentation and retransmission overhead on backbone links carrying streaming video or bulk device management traffic. Not mandatory for most security deployments, but measurable on high-bandwidth aggregation tiers where dozens of cameras or access points funnel through a single switch.
- DHCP Relay with Option 82: Allows centralized DHCP pools upstream while still identifying which building or segment a camera or intercom is plugged into. Simplifies multi-tenant or multi-site deployments where device discovery and provisioning must be scripted or automated.
- SSH/SSL Management: Out-of-band configuration traffic is encrypted, meeting audit and compliance requirements. Enable port security (MAC filtering or 802.1X) and you've effectively locked down the backbone to authorized devices only — a material security posture improvement over unmanaged alternatives.
Deployment Considerations:
- No SFP slots on this model — if you need fiber uplinks, verify that your access switches or backbone devices have SFP ports or plan for separate fiber media converters. This is not a limitation for most deployments, but it's a detail often overlooked during design. Budget a 1U fiber module chassis alongside the SM24DP4XA-NA if your backbone is fiber-only.
- Dual power supply requires two separate feed circuits (AC and DC or two AC sources) to achieve true N+1 redundancy. If you wire both supplies to the same UPS or generator branch, you've gained zero fault tolerance. Plan your cabinet power distribution and labeling accordingly during installation.
- VLAN configuration and port assignment are non-trivial on first deployment; most integrators allocate 2–3 hours for initial setup, testing, and documentation. Once running, the switch is stable and requires minimal intervention — but the learning curve on IEEE 802.1Q tagging and VLAN membership is real, especially if your team is accustomed to unmanaged-switch plug-and-play.
- Port mirroring and SPAN can tax CPU resources if mirroring all 28 ports simultaneously to a TAP or IDS appliance. Use selective port mirroring (span only the uplink ports or a specific VLAN) to avoid performance degradation during live troubleshooting.
- Fiber transceivers (SFP modules) are sold separately and must match your intended backbone infrastructure (single-mode LC, multimode SC, etc.). Confirm transceiver compatibility before installation to avoid field returns and project delays.
The SM24DP4XA-NA is ideal for integrators and end-user IT teams designing multi-segment security networks where reliability, segmentation, and power flexibility are non-negotiable. Consider this switch for campuses, hospitality chains, or industrial sites with distributed cameras and access control. For a complete Transition Networks portfolio and additional switching options, visit the Transition Networks catalog.
