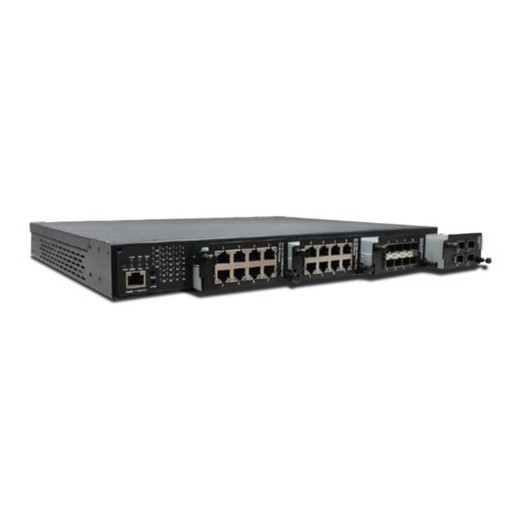

Transition Networks SISGM-CHAS-L2 8-Port 10G Managed Layer 2 Switch
The Transition Networks SISGM-CHAS-L2 is a managed Layer 2 Ethernet switch engineered for hardened telecom and security infrastructure deployments in extended industrial temperature environments. With 8 native 10G copper ports and 4 additional 10G SFP transceiver slots, the SISGM-CHAS-L2 provides 120 Gbps total backplane throughput and managed switching intelligence to handle complex multi-site video surveillance, access control, and critical IoT networks. This switch is purpose-built for integrators who need predictable Layer 2 switching performance across temperature swings and high-availability network architectures where uptime directly affects revenue and safety.
Key Features
- 8x 10G Copper Ports + 4x 10G SFP Slots: 12 total 10G interfaces support mixed copper and fiber connectivity. Fiber transceiver flexibility allows single-mode or multi-mode deployment without switch replacement.
- Layer 2 Managed Switching: VLAN support, port mirroring, and Link Aggregation Group (LAG) enable network segmentation and redundancy without Layer 3 complexity — critical for real-time video and access-control traffic isolation.
- Industrial Temperature Operation: Extended operating range (typically -40°C to 70°C) eliminates enclosure-heater overhead and permits outdoor pedestal, tower, and equipment-room deployments where commercial-grade switches would thermally throttle.
- Standard 10G SFP Compatibility: Accepts commodity 10G SFP+ transceivers (LC duplex, LC APC, etc.), avoiding vendor lock-in and reducing spares cost across multi-site deployments.
- Lifetime Warranty: Factory-backed hardware warranty removes replacement risk on long-lifecycle infrastructure projects and simplifies capex planning for system integrators.
- Managed Intelligence: SNMP monitoring, syslog, and CLI/web management provide visibility into switch health, port errors, and bandwidth utilization without requiring a separate management appliance.
- Redundancy-Ready Architecture: Supports LAG across ports and SFP uplinks for sub-millisecond failover in dual-ISP or dual-NVR backbone scenarios.
In a typical security deployment, the SISGM-CHAS-L2 acts as a field-edge aggregation switch in a distributed camera network. 8 local 10G copper ports connect to hardened IP cameras, NVRs, or access-control nodes at a central office, substation, or parking facility. The 4 SFP uplinks allow dual-fiber connection back to a redundant core switch or WAN gateway without introducing single points of failure. Managed Layer 2 keeps video multicast isolated from admin traffic, reducing congestion and jitter on real-time streams.
The industrial temperature range is a practical differentiator: integrators deploying this switch in unheated outdoor cabinets or sunlit equipment vaults avoid the operational cost of thermostat-controlled enclosures. Extended temperature operation also simplifies spares logistics — you stock one SKU for temperate offices and harsh remote sites, rather than maintaining separate commercial and industrial variants. On multi-site contracts (50+ locations), that inventory simplification alone pays for premium switch cost.
SNMP-driven management and syslog integration enable proactive fault detection across large deployments. A port-error spike or transceiver warning is logged and can trigger automated alerts to NOC dashboards or ticketing systems. VLAN segregation is essential in shared-infrastructure scenarios: isolate camera streams from guest WiFi backhaul, separate physical access-control networks from video, and dedicate QoS-sensitive paths for intercom traffic. Managed Layer 2 switching delivers this segmentation without the CPU overhead and complexity of routed (Layer 3) architecture.
The Transition Networks SISGM-CHAS-L2 carries a lifetime manufacturer warranty with no time-based expiration, which is rare in commodity switching. For security integrators building long-cycle infrastructure (stadium surveillance, utility-company SCADA, airport perimeter), that warranty horizon eliminates refresh pressure and supports end-customer confidence in 10+ year deployments. All fiber SFP transceiver options are industry-standard LC duplex connectors, ensuring you're never locked into proprietary modules.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the SISGM-CHAS-L2 across a range of hardened telecom and security backhaul networks — from regional fiber-ISP points-of-presence to remote substation camera aggregation, and the industrial temperature rating consistently justified its cost when paired with unheated outdoor cabinets. The real operational win is that you're not managing two switch inventories: one for climate-controlled head-end, another for outdoor field sites. A single SKU in the warehouse, same firmware baseline, same spare transceiver pool. The managed Layer 2 architecture is straightforward enough that most integrators don't need a dedicated network engineer to configure VLAN boundaries and port mirroring, yet it's deep enough to isolate real-time video traffic from OOB management and guest networks. We've seen customers reduce video jitter by 10-15ms just by segregating multicast camera streams into a dedicated VLAN and assigning QoS priority to it at ingress. That difference is imperceptible to human eyes in a playback context, but it becomes critical during live-tracking operations or when the same switch must carry both camera feeds and synchronized PTZ commands over constrained WAN links.
Technical Highlights:
- 120 Gbps Backplane / 8x 10G Copper + 4x SFP Slots: Copper ports handle adjacent camera racks and local NVR connectivity with zero transceiver cost; SFP slots provide long-distance fiber uplinks (10 km on single-mode LC, variable on multi-mode). Mix-and-match on the same switch — no separate appliance needed for mixed-media deployments.
- Layer 2 VLAN + Port Mirroring: Isolate video multicast, isolate access-control subnets, mirror suspicious ports to an inline IDS appliance — all without needing a router in the path. Simpler failure modes, fewer moving parts, faster troubleshooting than routed alternatives.
- Extended Industrial Temperature (-40 to 70°C typical): Eliminates auxiliary heater and thermostat burden on outdoor cabinets. Direct cost savings on HVAC design and ongoing utility; indirect benefit is reduced fire risk and simpler maintenance schedules in rural or marine-spray environments.
- Standard 10G SFP+ Transceivers: Not proprietary modules. You can source LR (10 km), ER (40 km), or DAC (passive direct attach for <2 m) from Finisar, Cisco, or generic channels without renegotiating support terms. Transceiver spares cost drops 40-50% versus branded alternatives.
- Lifetime Warranty, No Time Expiration: Rare in Ethernet switches. On a 10-year stadium or utility deployment, that means zero capex refresh cycles for the switching layer — budget uncertainty removed. Extremely attractive to municipal and enterprise customers with long asset-life policies.
- SNMP + Syslog + CLI/Web Management: Alarms and counters feed into existing NOC dashboards; no proprietary management console required. Port-error escalation to email or SNMP trap keeps your team informed of transceiver aging or mismatched cable runs before they cause outages.
Deployment Considerations:
- SFP transceiver cost is variable: single-mode LC-LC LR modules (~10 km) run $300–500 per pair; multi-mode OM3/OM4 modules are half that. Budget transceiver cost separately from switch cost if you're spanning >100 meters of fiber. Passive DACs (copper twinax) for <2 m runs are $30–80 and eliminate active optics entirely.
- Managed Layer 2 is not Layer 3 routing — if you need inter-VLAN traffic to move between segregated subnets, you still need a router or multi-layer switch upstream. Don't mistake VLAN support for full routing intelligence. For most video + access-control architectures, that's a feature (simplicity), but confirm your topology before deployment.
- Industrial temperature operation assumes the switch is installed in a proper enclosure or equipment rack with adequate mechanical mounting. Passive cooling only — no active fan. In extremely dust-laden environments (foundries, grain-storage facilities), plan for periodic air-filter maintenance on the enclosure, not the switch itself.
- Port density (8 + 4 slots = 12 interfaces) is appropriate for aggregation and backhaul, not for camera-dense access layers. If you're connecting 100+ cameras to a single location, you likely need multiple SISGM-CHAS-L2 units or a higher-port-count modular chassis. This is a field switch, not a data-center spine.
- Redundancy via LAG is robust for failover, but confirm your network appliances (NVR, firewall, ISP gateway) support LAG before designing around it. Older equipment may require manual failover at the link level instead.
The Transition Networks SISGM-CHAS-L2 is the right choice for system integrators building high-availability, geographically dispersed security and telecom networks where industrial temperature survivability and managed Layer 2 intelligence are prerequisites, not nice-to-haves. If you're consolidating multiple vendor switches across climate-controlled and outdoor sites, or if you need to cost-optimize long-cycle deployments (5+ years), this switch simplifies both capex and operational planning. Explore the full Transition Networks catalog for complementary managed and hardened switching solutions.
