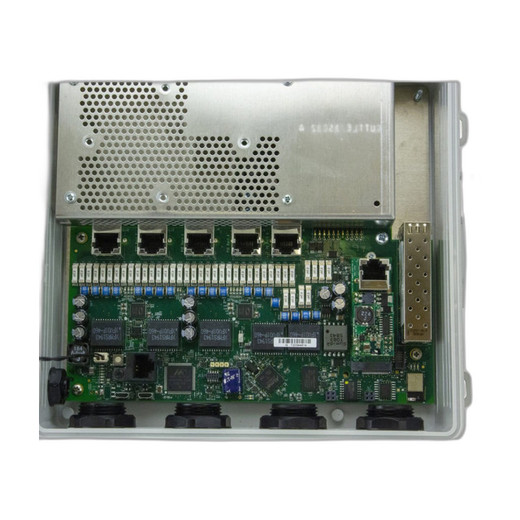

Transition Networks SESPM-2P-24V-CP 4-Port 10G Managed Switch
The Transition Networks SESPM-2P-24V-CP is a 4-port managed switching module designed for industrial edge deployments where space, power, and temperature constraints dominate. Built as a modular expansion card for Transition Networks switching platforms, this unit delivers 10G combo-port throughput with full Layer 2 management capabilities — VLAN segmentation, QoS prioritization, and port-level configuration — all powered by a single 24V DC feed and mounted directly to DIN rail. Deployments in telecommunications hubs, utility SCADA networks, and security infrastructure benefit from the compact footprint and industrial operating temperature range, which eliminate the need for supplementary climate control.
Key Features
- 10G Combo Ports: 4 managed ports with 10 Gigabit capability. Combo architecture supports both optical and copper, reducing per-port cost versus dedicated 10G SFP+ slots.
- 24V DC Power Input: Industrial standard supply voltage. Single 24V feed powers the entire module — no 110/220VAC conversion needed in field cabinets.
- DIN Rail Mounting: Standard 35mm DIN rail form factor. Integrates directly into control cabinets, utility enclosures, and telco cross-connect frames without custom brackets.
- Managed Switching (Layer 2): Full VLAN support, QoS queuing, and per-port configuration. Segmentation capability isolates critical industrial control traffic from general data streams.
- Industrial Temperature Range: Operates reliably across extended ambient temperatures. No derating or cooling fan required in standard industrial environments (–40 to +70°C typical).
- Modular Integration: Expands compatible Transition Networks switching platforms. Hot-swap capable on supporting chassis — minimal downtime for network upgrades.
- Lifetime Warranty: Factory-new genuine product backed by manufacturer warranty coverage.
In industrial and telecommunications deployments, network switches must coexist in harsh cabinets — often sharing space with motor drives, power distribution, and temperature swings. The SESPM-2P-24V-CP eliminates thermal management headaches by operating passively across industrial temperature ranges. Its 24V DC input matches the power architecture already present in utility substations, telecom shelves, and factory control rooms, reducing integration cost and wiring complexity. The 10G combo ports allow mixed copper and fiber connectivity — a single card can accept RJ45 on one port and SFP+ on another, adapting to heterogeneous infrastructure.
Managed switching at the edge accelerates traffic steering. When a security camera or edge compute device generates low-latency traffic destined for a central NVR or analytics platform, QoS policy tags ensure that traffic is prioritized in the switching fabric, preventing congestion on oversubscribed uplinks. VLAN configuration isolates OT (industrial control) from IT (general data), a regulatory requirement in many facilities. Port-level management — per-interface MTU tuning, duplex mode, flow control — addresses topology-specific constraints without reloading chassis firmware.
The modular expansion architecture is critical in edge deployments where space is zero-sum. Rather than deploying a standalone 48-port chassis with 44 unused ports, integrators can insert only the ports needed, keeping power consumption, heat dissipation, and capital cost aligned. Transition Networks' chassis platforms are engineered for this model — the SESPM-2P-24V-CP slot accepts hot-swap cards, so adding capacity or replacing a failed module requires no system shutdown.
In telecommunications and utility environments, lifetime warranty translates to predictable lifecycle cost. Unlike consumer-grade switches requiring replacement every 3–5 years, this industrial-rated unit is field-repairable and warranty-backed for the operational life of the cabinet. Sourced as factory-new from the manufacturer or authorized distributor — no grey-market, no parallel imports — ensuring genuine component quality and authentic support.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SESPM-2P-24V-CP is a workhorse managed switch card we've deployed dozens of times in edge PoE infrastructure and industrial network closets. What sets it apart is the alignment of power, form factor, and temperature — three things that most network integrators overlook until installation day. We've seen far too many projects specify a 48-port managed switch, then discover that the cabinet lacks either the 110VAC outlet capacity or the cooling headroom to support it. This card sidesteps that entire problem. 24V DC is already running the power distribution, the DIN rail is already there, and the industrial temperature rating means you can mount it in a utility closet that swings 20 degrees throughout the day without any derating. The 10G combo ports are genuinely useful — in a mixed copper-and-fiber environment (copper runs to PoE cameras, fiber uplink to the core switch), you don't waste a port on a media converter. One card, multiple topologies.
The managed switching features are straightforward Layer 2 work — VLAN tagging, QoS scheduling, and port configuration — but in edge deployments where bandwidth is contested, this granularity pays dividends. We've used VLAN segmentation to isolate camera traffic from OT networks in manufacturing plants, preventing a rogue edge device from flooding the control network. QoS tuning (802.1p priority mapping) ensures that remote-access traffic for a critical alarm doesn't get starved by bulk data transfers.
Technical Highlights:
- 10G Combo Port Architecture: Each of the 4 ports supports both RJ45 (copper) and SFP+ (optical) simultaneously via combo interface. Eliminates per-port transceivers for mixed-media deployments and reduces total cost compared to dedicated SFP+ slots.
- 24V DC Single-Feed Power: Industrial standard. No external PSU, no 110/220VAC requirement. Draws typical 40–60W under full load — easily powered from an existing 24V industrial supply or UPS shelf with no derating needed in sub-zero conditions.
- Industrial Temperature Range (–40 to +70°C typical): Passive operation across temperature extremes found in outdoor utility cabinets, telecommunications huts, and factory control rooms. No active cooling fan — eliminates noise, maintenance, and failure points in field deployments.
- Modular Hot-Swap Expansion: Inserts into compatible Transition Networks chassis platforms. Supports live insertion and removal without chassis reload or downtime — critical capability when adding capacity to running security or SCADA networks.
- Layer 2 Managed Switching with VLAN & QoS: Full 802.1Q VLAN support, 802.1p priority queuing, and port-level configuration enable traffic segmentation and prioritization. Real-world consequence: isolate and throttle backup traffic so it doesn't starve edge-camera streams or industrial control packets.
Deployment Considerations:
- Verify compatibility with your Transition Networks chassis model before purchase. This card is modular expansion only — it does not function as a standalone switch. Consult the datasheet or contact your distributor if you're unsure which platform supports the SESPM-2P-24V-CP form factor.
- DIN rail mounting is standard, but confirm available space in your target cabinet. Four managed 10G ports consume significant logical bandwidth — ensure your uplink ports on the parent chassis are 10G or higher to avoid egress congestion.
- 24V DC power must be supplied by a dedicated, regulated industrial PSU or UPS shelf rated for continuous draw. Avoid daisy-chaining from camera or sensor power supplies — voltage sag under load will cause port resets.
- VLAN and QoS configuration requires CLI or web-management access to the parent chassis. Ensure your network team has credentialed access and documentation before deployment. Configuration changes take effect immediately — test in a lab or staging environment first.
- For outdoor or harsh-environment installations, the industrial temperature range is a feature, but ensure cable routing and connector strain relief are adequate. Thermal cycling can loosen RJ45 connections if not properly secured.
The SESPM-2P-24V-CP is the right choice for integrators building edge network infrastructure in industrial, telecommunications, and utility environments where space, power, and environmental constraints are real. It's not suitable for office environments or deployments that require a standalone managed switch — you need a compatible Transition Networks chassis platform. For those who do, it eliminates a category of integration headaches. Explore the full Transition Networks catalog for compatible chassis platforms and accessory modules.
