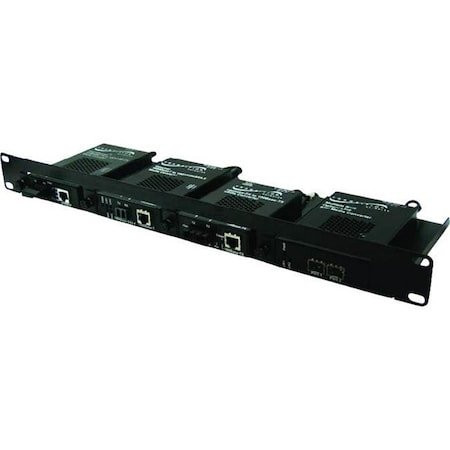

Transition Networks RMS19-SA4-02 19-Inch 4-Slot Rack Mount Shelf
The Transition Networks RMS19-SA4-02 is a standard 19-inch rack mount shelf engineered to house four modular network components in a single vertical footprint. This accessory serves a straightforward but essential function: consolidating compatible modules into organized rack space while maintaining clean cable routing and reducing sprawl across multiple shelves or mounting surfaces.
Overview
The RMS19-SA4-02 integrates into existing 19-inch equipment racks to support modular Transition Networks components and similar form-factor network interface cards. The 4-slot configuration allows you to co-locate up to four modules in a single shelf unit, reducing the number of mounting locations you need to manage and lowering the overall footprint of your network closet or data center deployment. This is particularly valuable when consolidating redundant interfaces, media converters, or specialized network cards that would otherwise occupy scattered rack positions.
Standard 19-inch mounting means the shelf fits seamlessly into any compliant enterprise rack without adapter plates or custom fabrication. The design is built for long-term deployment in temperature-controlled network environments, handling the thermal loads and cable densities common in mid-sized to large data centers.
Key Features
- 4-Slot Modular Capacity — Holds four compatible modules side-by-side, reducing the number of separate mounting locations and consolidating cable runs to a single shelf position. Cuts rack real estate consumption compared to stacking individual single-module shelves.
- 19-Inch Standard Form Factor — Mounts directly into any standard 19-inch enterprise or industrial equipment rack without modification or adapter hardware. Ensures compatibility with existing infrastructure investments.
- Organized Cable Management — Compartmented slot design permits each module to maintain its own cable termination zone, reducing tangled runs and simplifying troubleshooting when swapping or upgrading modules.
- Enterprise-Grade Build — Engineered for long-service deployment in climate-controlled network closets and data centers. Supports the thermal and mechanical demands of 24/7 network operations without flexing or warping over time.
- Compatible with Transition Networks Modules — Designed to accommodate Transition Networks modular line cards, media converters, and interface modules that conform to the 4-slot shelf mechanical specification. Verify module dimensions against the shelf slot width before ordering.
Integration and Deployment Context
The RMS19-SA4-02 does not provide power distribution, switching functionality, or signal processing — it is a passive mounting platform. Power and data connectivity for each module must be supplied independently through the host rack's power distribution and backplane infrastructure. This shelf is best deployed in environments where you already have a PoE switch, UPS, or dedicated power supply installed elsewhere in the rack.
Installation is mechanical only: mount the shelf to the rack's vertical rail using standard cage nuts or threaded inserts, then slide the four modules into their respective slots. No firmware, configuration, or software setup is required. The time to deploy is typically 10–15 minutes per shelf once rack space is allocated and power routing is planned.
Typical use cases include consolidating redundant fiber optic media converters in a data center uplink closet, organizing multiple 10/100 Fast Ethernet interface cards in a remote site rack, or co-locating specialized network modules (Serial/Ethernet converters, industrial protocol gateways) where modular flexibility and future upgradability are more important than a fixed-function appliance.
Frequently Asked Questions
Q: What types of Transition Networks modules will fit in the RMS19-SA4-02?
A: The shelf accommodates any Transition Networks module or interface card with a form factor compatible with the 4-slot shelf mechanical specification. Consult the RMS19-SA4-02 datasheet for exact slot dimensions, and verify the module's width and depth before purchase.
Q: Does the RMS19-SA4-02 include a power supply or provide power to the modules?
A: No. The RMS19-SA4-02 is a passive mounting shelf only. Each module must receive power from a separate PoE switch, DC power supply, or AC power distribution unit installed elsewhere in the rack. Plan your power distribution separately.
Q: Can I use the RMS19-SA4-02 in a non-standard or non-19-inch rack?
A: No. The RMS19-SA4-02 is designed exclusively for standard 19-inch enterprise equipment racks. It will not fit securely in 23-inch, 4-post, or proprietary rack frames.
Q: What is the typical shelf lifespan, and does it come with a warranty?
A: Contact the manufacturer or an specialty reseller for warranty terms and expected service life. The shelf is constructed for long-term deployment in temperature-controlled environments and should remain serviceable for 5–10 years with proper installation and maintenance.
Q: Will the RMS19-SA4-02 work with non-Transition Networks modules?
A: The RMS19-SA4-02 is designed for Transition Networks modules. If your cards use a different form factor or mounting standard, compatibility is not guaranteed. Verify dimensions and specifications before ordering.
Q: How much rack space does the RMS19-SA4-02 consume?
A: The shelf occupies a standard 1U (1.75-inch) vertical rack unit. Installing multiple shelves vertically will stack them in 1U increments.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The RMS19-SA4-02 is a pure infrastructure play — no processing, no intelligence, just organized real estate. It's the kind of component that doesn't get noticed until you're retrofitting a rack and realize you've run out of vertical space. The shelf's real value emerges when you're consolidating modular media converters or stacking interface cards that would otherwise fragment your rack layout.
Technical Highlights:
- 4-Slot Configuration: Reduces the footprint of four single-module shelves down to one 1U position — meaningful saving when you're working with space-constrained data centers or remote site racks where every rack unit counts toward power density and cooling efficiency.
- 19-Inch Standard Mechanical: Direct compatibility with any enterprise-grade rack eliminates the need for custom fabrication, adapter plates, or non-standard mounting solutions. This standardization cuts installation time and eliminates certification headaches when auditing rack compliance.
- Passive Design (No Power or Switching): Because the RMS19-SA4-02 is purely mechanical, it introduces no single point of failure, no management interface to configure, and no firmware updates to manage. Your modules remain the failure domain — the shelf simply holds them in place.
Deployment Considerations:
- The RMS19-SA4-02 demands upstream power planning. If you're deploying this shelf with four high-draw media converters or specialized modules, verify your rack's PoE switch or power distribution can supply the aggregate wattage. A single power bottleneck will starve all four modules in the shelf.
- Slot dimension compatibility is non-negotiable. Transition Networks publishes mechanical specs in the datasheet — measure your modules before you order the shelf. A module that's 1.1 inches wide will not fit in a 1.0-inch slot, and there's no shimming your way out of that mistake.
- Cable organization matters more when four modules share one shelf. Plan your patch runs and management cable entries before mounting — undoing cable runs after stacking is time-consuming and risks disturbing neighboring modules.
The RMS19-SA4-02 is built for operators who are consolidating Transition Networks infrastructure — fiber media converters, industrial protocol bridges, redundant interface cards — and need to free up vertical rack real estate while keeping the modules co-located for simplified cable management and easier module replacement without disturbing the entire rack layout.
