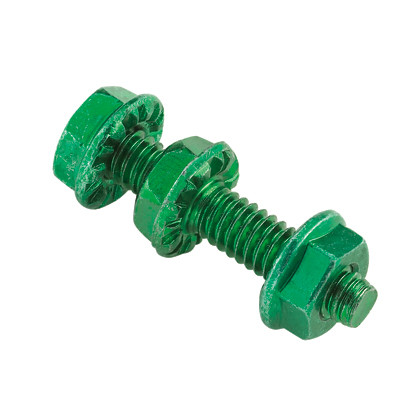

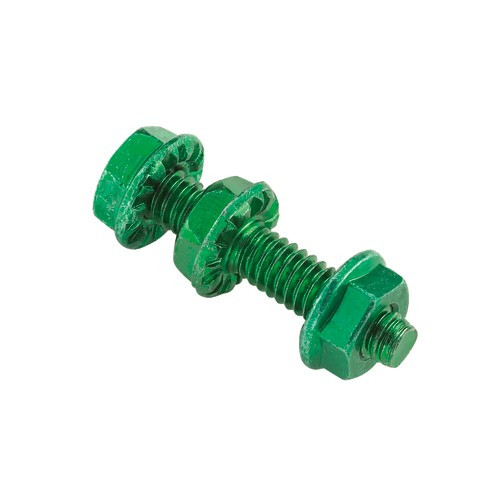

Panduit TRBSK StructuredGround Bonding Setscrew Kit
The Panduit TRBSK bonding setscrew kit delivers reliable electrical grounding in rack and cabinet installations where painted surfaces would otherwise block metal-to-metal contact. Designed for telecommunications and data center environments, this StructuredGround component features serrated holes that bite through powder coat and paint finishes to establish verified bonding paths between equipment, distribution panels, busbars, and rack infrastructure. Green color-coding provides instant visual confirmation that proper bonding hardware is in place—critical during inspections and maintenance in high-density server environments where grounding integrity directly impacts equipment protection and EMI control.
Key Features
- Serrated hole design penetrates paint and powder coat finishes for direct metal-to-metal bonding contact
- Green color-coding clearly identifies bonding application points during installation and inspection
- Zinc-plated finish provides corrosion resistance in variable-humidity data center and telecom environments
- Engineered for use with #12-24 bonding cage nuts for secure, code-compliant grounding connections
- Thread design removes paint from mounting holes while minimizing loose metal fragments
- StructuredGround system component integrates with Panduit's rack grounding architecture
In modern data centers and telecom facilities, painted and powder-coated rack surfaces create insulating barriers that defeat standard mounting hardware's ability to establish electrical continuity. The TRBSK addresses this by incorporating serrated contact points that displace non-conductive finishes during installation, ensuring that bonding busbars, distribution panels, PDUs, and rack-mounted equipment achieve verified ground paths to the cabinet structure. The thread design is optimized to cut through paint layers in the mounting hole itself, creating a dual-path bonding connection—both at the fastener head and along the threaded engagement—while the geometry minimizes the creation of loose paint chips and metal shavings that can cause shorts in adjacent equipment.
The green color-coding is not cosmetic—it serves as a field-verifiable indicator that bonding-specific hardware was used rather than standard zinc or black-oxide mounting screws. During electrical inspections, code compliance audits, or troubleshooting sessions, installers and facility managers can instantly identify bonding points without documentation, reducing the risk that critical grounding connections are mistaken for structural mounting hardware and inadvertently defeated during equipment swaps or reconfigurations. This is particularly valuable in multi-vendor rack installations where grounding responsibility may span multiple contractors or deployment phases.
Designed for telecommunications and data center applications, the TRBSK integrates into Panduit's StructuredGround system—a comprehensive rack-level grounding architecture that addresses NEC Article 250 bonding requirements and ANSI/TIA-607-C telecommunications grounding standards. Zinc plating provides corrosion resistance in HVAC-controlled environments with variable humidity, and the fastener geometry is compatible with standard #12-24 bonding cage nuts commonly used in EIA 19-inch rack and cabinet installations. Each kit provides the hardware needed to establish code-compliant bonding connections that protect personnel, prevent differential voltage between rack components, and reduce electromagnetic interference in high-frequency server and network switch deployments.
