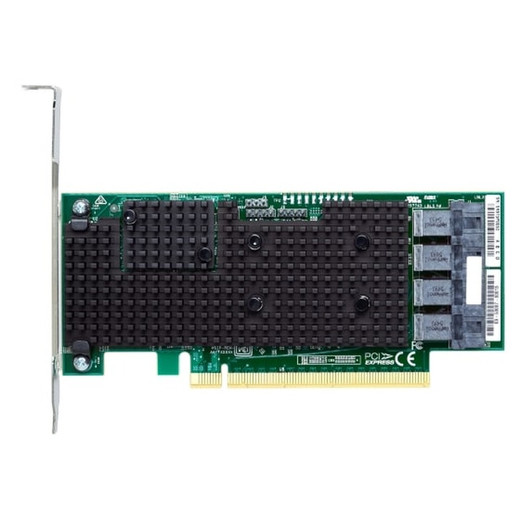

Lenovo Thinksystem 1610-4P NVME Switch Card - 7Y37A01081

Lenovo 7Y37A01081 Low-Profile PCIe 3.0 NVMe Switch Card

Overview

The Lenovo 7Y37A01081 is a low-profile PCIe 3.0 NVMe switch card designed for internal server expansion in space-constrained rack configurations. Built around a Mini-SAS HD output interface and a standard PCIe host connection, this card targets ThinkSystem server platforms where NVMe storage density needs to scale without consuming full-height slot real estate. If you're building out a high-density compute or storage node and need to add NVMe capacity without sacrificing chassis flexibility, the 7Y37A01081 is worth evaluating against your slot budget.

Key Features

• PCIe 3.0 Host Interface: Connects to the server motherboard over PCIe Gen 3, delivering the bandwidth headroom NVMe storage demands. Unlike older SAS/SATA HBAs, a PCIe 3.0 connection avoids becoming the bottleneck when you stack multiple NVMe drives behind the switch.
• Mini-SAS HD Output: The Mini-SAS HD connector on the output side keeps cabling compact and compatible with standard NVMe backplane connectors found across ThinkSystem chassis. This matters in dense configurations where cable management directly affects airflow and serviceability.
• Low-Profile Form Factor: The low-profile card height means this fits in 1U and short-depth chassis that reject full-height cards. If your enclosure only has LP slots available, this is a hard requirement — not an optional convenience.
• NVMe Protocol Support: Native NVMe support means the card communicates directly with NVMe SSDs using the protocol those drives are designed for, avoiding the translation overhead of legacy SAS/SATA bridges. Latency and queue depth both benefit.
• Internal Connectivity: Designed for internal use within the server chassis — not an external HBA. This keeps the signal path short and avoids the additional latency and complexity of external cable runs.
• PCI 3.0 Standard Compliance: Compliance with the PCI 3.0 standard ensures compatibility with ThinkSystem platforms validated for that generation, reducing integration risk during procurement.

Integration and Compatibility

The 7Y37A01081 is a Lenovo ThinkSystem option card. It is designed for use within Lenovo's ThinkSystem server line — verify slot availability and platform compatibility against your specific ThinkSystem model's configuration guide before ordering. The Mini-SAS HD output is a widely adopted connector type on NVMe backplanes, but cable-to-backplane compatibility should be confirmed for your chassis revision. For broader server storage expansion options, review compatible ThinkSystem platforms before committing to a configuration. Buyers integrating NVMe expansion into storage-dense rack builds should also account for PCIe lane allocation across all populated slots.

Frequently Asked Questions

Q: What host interface does the Lenovo 7Y37A01081 use?

A: The 7Y37A01081 uses a PCIe (PCI Express) host interface, compliant with PCI 3.0 standard.

Q: What is the output connector type on the 7Y37A01081?

A: The output interface is Mini-SAS HD, which is compatible with standard NVMe backplane connectors used in ThinkSystem chassis.

Q: Will the 7Y37A01081 fit in a 1U server chassis?

A: Yes — the card uses a low-profile form factor, which is designed to fit in chassis that only accommodate low-profile expansion cards, including many 1U and short-depth servers.

Q: Is the 7Y37A01081 for internal or external use?

A: Internal use only. This card is designed to connect storage devices inside the server chassis, not to external enclosures.

Q: Does the 7Y37A01081 support NVMe drives natively?

A: Yes. The card is NVMe-capable, meaning it supports NVMe SSDs using the native NVMe protocol without legacy protocol translation overhead.

Eden Phillips

The 7Y37A01081 is a straightforward but often overlooked piece of the NVMe expansion puzzle in ThinkSystem builds. Its low-profile PCIe 3.0 form factor is the detail that matters most in practice — if you're working with a chassis that only has LP slots, this isn't a preference, it's a requirement, and sourcing the wrong card height causes real delays on deployment timelines.

Technical Highlights:

• Low-Profile PCIe 3.0: Fits LP-only slots in 1U and short-depth ThinkSystem chassis — eliminates the need for a riser adapter in many configurations, keeping the BOM clean.
• Mini-SAS HD Output: Standard connector type for NVMe backplanes in the ThinkSystem line — reduces custom cabling and simplifies sparing across a multi-node deployment.
• Native NVMe Support: No protocol translation layer between the card and NVMe SSDs means you're not introducing an artificial ceiling on IOPS or latency that the SSDs themselves don't have.

Deployment Considerations:

• Verify PCIe lane availability on your specific ThinkSystem motherboard before ordering — populating multiple option cards in a dense build can exhaust available lanes and throttle throughput.
• The card is validated for Lenovo ThinkSystem platforms; using it outside that ecosystem introduces compatibility risk that Lenovo's configuration guides won't cover.

Best fit for ThinkSystem server operators expanding internal NVMe storage capacity in 1U rack nodes where LP slot constraints are non-negotiable and backplane-direct cabling is the target architecture.
