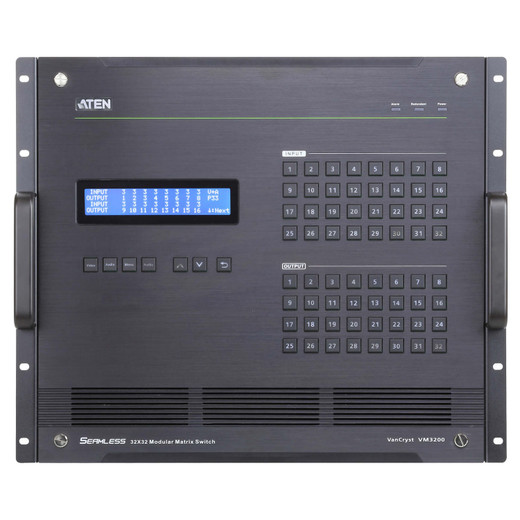

ATEN VM3200 Modular Matrix Switch — 32x32 Scalable AV Routing Chassis

Overview

The ATEN VM3200 is a 9U rack-mount modular matrix switch chassis built for AV-over-infrastructure deployments where signal routing requirements change over time. With 8 input board slots and 8 output board slots, and a maximum data rate of 15.2 Gbps (3.8 Gbps per lane), the VM3200 gives AV engineers and systems integrators a field-configurable routing core that adapts to the signal types the project demands — rather than locking you into a fixed-format matrix on day one. If you're designing for command centers, broadcast control rooms, campus AV distribution, or large-venue control infrastructure, the VM3200's modular architecture means you configure the I/O to match your actual signal mix rather than over-buying fixed ports you won't use. For a broader look at the ATEN product line, including KVM and matrix switching solutions, the ATEN catalog covers a wide range of AV and IT infrastructure hardware.

Key Features

• 8-Slot Input / 8-Slot Output Architecture: Each slot accepts a field-swappable I/O board, so the VM3200 chassis supports whichever signal types your project requires — HDMI, DVI, HDBaseT, or others depending on available board options. This matters in multi-phase buildouts where you commission rooms in stages: slot in boards as zones go live without replacing the core chassis.
• 15.2 Gbps Maximum Data Rate (3.8 Gbps per Lane): The per-lane bandwidth comfortably handles uncompressed 4K signals on appropriate boards. At 3.8 Gbps per lane, you have the headroom for high-resolution, low-latency routing — critical in production environments where any compression artifact or frame drop is unacceptable.
• 9U Rack Form Factor: The VM3200 occupies 9U of rack space — plan your rack layout accordingly. In a standard 42U equipment rack, this leaves room for companion network switches, control processors, and UPS units without requiring a dedicated rack just for the matrix.
• EDID Management (Default / Port1 / Remix / Customized): EDID mismatches are the most common cause of black screens in matrix deployments. The VM3200 provides four EDID modes including a customized mode with EDID Wizard support — you can define a synthetic EDID that forces all sources to output a resolution and refresh rate your display infrastructure can handle, eliminating the trial-and-error of mismatched handshakes across large installations.
• Single RJ-45 Ethernet Management Port: Network-attached control means you can integrate the VM3200 into a centralized AV control platform or building management system without proprietary serial adapters. The RESTful API (documented in the manufacturer's vm_restful_api PDF) supports programmatic control for scheduling, automation, and integration with third-party control systems.
• RESTful API with Firmware v2.3.221 (released 2025-05-22): The VM3200 supports a published RESTful API, meaning integrators can build custom control interfaces, trigger routing changes via HTTP calls from room automation systems, or pull status data into monitoring dashboards. The most recent firmware release (v2.3.221) keeps the platform current for integration projects starting now.
• Wide-Range AC Input (100–240 VAC, 50–60 Hz, 10A): Universal mains input means the VM3200 deploys without voltage conversion in North American, European, or Asia-Pacific facilities — a practical detail when commissioning in international venues or multi-site enterprise rollouts.
• Operating Humidity 0–80% RH Non-Condensing: Suitable for standard equipment room and data center environments. This is not rated for outdoor or high-humidity industrial enclosures — install in a conditioned space.

Integration & Compatibility

The VM3200 connects to your control infrastructure via a single RJ-45 Ethernet port, supporting integration through the published RESTful API. Automation and control system developers can reference the manufacturer's REST API documentation to build room-control triggers, scheduled routing changes, or status monitoring hooks. I/O capability is entirely determined by the board modules installed — the chassis itself is signal-agnostic. Before specifying the VM3200 for a project, confirm that the required input and output board types (HDMI, HDBaseT, DVI, etc.) are available and factor lead times for board procurement into your project schedule. For large AV matrix deployments, pairing the VM3200 with a managed PoE or network switch for the control VLAN keeps matrix management traffic isolated from production AV signal paths.

Frequently Asked Questions

Q: How many inputs and outputs does the VM3200 support?

A: The VM3200 chassis provides 8 input board slots and 8 output board slots. The actual number of input and output ports depends entirely on which I/O boards are installed in those slots — the chassis itself does not fix the port count.

Q: What is the maximum data rate of the VM3200?

A: The VM3200 supports a maximum data rate of 15.2 Gbps total, at 3.8 Gbps per lane, providing sufficient bandwidth for high-resolution uncompressed video routing depending on the installed board type.

Q: Does the VM3200 support remote or programmatic control?

A: Yes. The VM3200 includes a single RJ-45 Ethernet management port and supports a RESTful API, allowing integration with third-party control systems, room automation platforms, and custom control interfaces.

Q: What are the EDID management options on the VM3200?

A: The VM3200 offers four EDID modes: Default, Port1, Remix, and Customized. The Customized mode is supported by ATEN's EDID Wizard, allowing you to define a synthetic EDID to ensure reliable handshaking across mixed source and display environments.

Q: What rack space does the VM3200 require?

A: The VM3200 occupies 9U of rack space. Plan your rack layout to accommodate this footprint alongside companion control and network equipment.

Q: What is the current firmware version for the VM3200?

A: The current firmware version is v2.3.221, released 2025-05-22, available as vm3200-v2.3.221.zip from the manufacturer.

Jerry Tildsen

The VM3200's 8-slot modular architecture is the spec I keep coming back to when a client's AV infrastructure is being built in phases. Unlike fixed-matrix units, this chassis lets you populate boards as zones commission — you're not paying for 32 HDMI outputs on day one if only 12 destinations are live. The 15.2 Gbps aggregate bandwidth (3.8 Gbps per lane) is the other number to anchor on: at that throughput, you're not bandwidth-constrained on high-resolution routing as long as your board selection matches the signal type.

Technical Highlights:

• 3.8 Gbps Per-Lane Bandwidth: Enough headroom for uncompressed 4K on appropriate I/O boards — critical for broadcast and production environments where compressed or frame-dropped video is not acceptable.
• EDID Wizard (Customized Mode): In large matrix deployments, EDID mismatches cause more commissioning delays than any other single issue. Having a synthesized EDID mode lets you lock the entire source pool to a known-good resolution and timing — saves hours of display-by-display troubleshooting.
• RESTful API (Firmware v2.3.221): The published REST API means control system programmers can build native HTTP-based routing triggers rather than relying on RS-232 or proprietary driver wrappers. With firmware updated as recently as May 2025, the integration surface is actively maintained.

Deployment Considerations:

• The VM3200 requires 9U of rack space — in dense rack builds, reserve this before committing to the chassis. Confirm board procurement lead times upfront; the chassis value depends entirely on having the right input/output boards available for your signal types.
• The operating humidity ceiling is 80% RH non-condensing. This is a standard equipment-room specification — do not install in unconditioned spaces or environments with humidity spikes from HVAC failures. It is not rated for industrial or outdoor enclosure use.

The VM3200 is the right call for command centers, multi-room campus AV distribution, and phased buildouts where the signal mix isn't fully defined at contract signing. If your deployment is fixed-format with a known port count and signal type from day one, a non-modular matrix may be simpler to commission — but the VM3200 earns its price when flexibility is the actual requirement.
