StarTech SM-ANTI-STATIC-MAT ESD Anti-Static Work Surface Mat

Overview

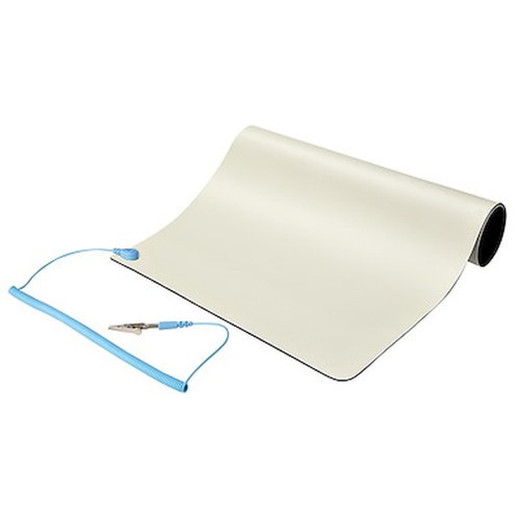

The StarTech SM-ANTI-STATIC-MAT is an 11.8 x 18.1-inch anti-static work surface mat designed to protect sensitive electronics from electrostatic discharge (ESD) damage during handling, installation, and servicing. Built to ANSI/ESD S4.1 standards, this mat is a practical addition to any technician's bench where network equipment, security hardware, or computing components are being worked on. The SM-ANTI-STATIC-MAT (often searched as SM ANTI STATIC MAT) ships with a 6.6-foot grounding wire, giving you everything needed to establish a proper ESD-safe workspace right out of the box.

Whether you're racking servers, swapping camera modules, provisioning access control hardware, or servicing PoE switches, an ungrounded work surface is one of the easiest ways to introduce latent ESD damage that doesn't surface until weeks later. This mat addresses that risk with a verified surface resistance standard and a ready-to-use grounding connection.

Key Features

• ANSI/ESD S4.1 Compliant Surface: The mat meets the ANSI/ESD S4.1 standard for ESD protective worksurfaces — meaning the surface resistance has been tested and verified to dissipate static charge safely. This is the baseline compliance standard most enterprise IT and security integration shops require before ESD mats are approved for use on production benches.
• 11.8 x 18.1-inch Work Area (30 x 46 cm): Large enough to work on a compact network switch, an IP camera PCB, or a small access control panel without components hanging off the edge. The footprint fits standard half-rack-width benches and portable field kits without dominating the workspace.
• 6.6-foot (2-meter) Grounding Wire Included: The generous 2-meter grounding lead gives you enough reach to connect to a grounding point without repositioning your bench. Shorter leads force awkward cable routing that often gets disconnected mid-job — at 6.6 feet, that's less of an issue on a typical rack room bench or server staging area.
• 2mm PVC Construction: At 0.08 inches (2mm) thick, the mat sits flat and stable on any hard bench surface. PVC provides the right combination of surface resistance and durability for repeated use — it won't crack under tools or curl at the edges after a few weeks like thinner foam alternatives.
• Lightweight at 13.9 oz (395g): Field technicians and integrators working across multiple sites can roll or fold this mat into a kit bag without adding meaningful weight. Useful for technicians who carry their own ESD protection rather than relying on site equipment.
• Operating Range 20°C to 45°C (68°F to 113°F): Rated for the temperature range you'll encounter in most controlled indoor environments — server rooms, IT closets, staging areas, and lab benches. The storage range extends from -6°C to 65°C (21.2°F to 149°F), so the mat survives vehicle storage in moderate climates between jobs.
• Humidity Specification 55%–70% RH: ESD mats depend on ambient humidity to dissipate charge effectively. The SM-ANTI-STATIC-MAT is specified for 55–70% RH — the typical range for climate-controlled work environments. If your workspace runs significantly below 40% RH (common in dry climates or heavily air-conditioned spaces), consider supplementing with a wrist strap for additional protection.

Integration and Compatibility

The SM-ANTI-STATIC-MAT is compatible with any standard ESD grounding setup. The included grounding wire connects the mat to a common ground point — typically a grounded AC outlet's ground pin via a 1-megaohm resistor cord, or a dedicated grounding bus on the bench. No proprietary connectors are involved. The mat works alongside standard ESD wrist straps, heel grounders, and ionizers as part of a complete ESD protection program.

For security integration teams handling IP cameras, PoE network hardware, or access control modules during staging and installation, this mat provides the minimum required ESD protection layer for bench work. Teams provisioning network video recorders or configuring network switches before rack installation will find the 11.8 x 18.1-inch surface practical for single-device work. For larger staging jobs involving full server trays or multiple boards simultaneously, pair this mat with a larger ESD surface or use it as a dedicated component staging zone alongside a broader bench setup. A structured cabling and cable management workflow benefits from maintaining a dedicated ESD zone at the termination bench, which this mat supports directly.

Frequently Asked Questions

Q: Does the SM-ANTI-STATIC-MAT come with a grounding wire, or do I need to purchase one separately?

A: The SM-ANTI-STATIC-MAT includes a 6.6-foot (2-meter) grounding wire in the package, so no separate purchase is needed to establish a grounded ESD workspace.

Q: What surface resistance standard does the SM-ANTI-STATIC-MAT meet?

A: The mat is compliant with ANSI/ESD S4.1, which is the industry standard for ESD protective worksurfaces. This confirms the surface resistance has been tested to safely dissipate electrostatic charges.

Q: What is the warranty on the SM-ANTI-STATIC-MAT?

A: StarTech provides a 2-year manufacturer warranty on the SM-ANTI-STATIC-MAT.

Q: What are the exact dimensions of the mat?

A: The mat measures 11.8 x 18.1 inches (30 x 46 cm) with a thickness of 0.08 inches (2mm). It weighs 13.9 oz (395g).

Q: Is the SM-ANTI-STATIC-MAT suitable for field use, or is it intended for fixed bench installations?

A: The mat is lightweight at 13.9 oz and can be rolled or carried in a field kit. Its operating temperature range of 20°C to 45°C (68°F to 113°F) is suited to climate-controlled environments. It works in the field as long as ambient conditions stay within spec.

Q: Does the mat work in low-humidity environments?

A: The mat is specified for 55%–70% RH. In very dry environments below 40% RH, ESD dissipation through the mat surface may be less effective. In those conditions, supplementing with a wrist strap connected to the same ground point is recommended.

Marty Allison

The SM-ANTI-STATIC-MAT gets used more than most integrators expect once it's in the kit bag. The 6.6-foot grounding wire is the detail that matters most in practice — I've worked on benches where a 1-meter lead forced us to reposition the entire staging setup every time we moved to a different outlet side, and that leads to the wire getting unplugged between devices. Two meters eliminates that problem on virtually any standard rack room bench layout.

Technical Highlights:

• ANSI/ESD S4.1 Compliance: This is the specific standard that enterprise IT procurement and security integrators reference when approving ESD mats for production use — not just a marketing claim, a tested surface resistance result. Matters when you're staging equipment for a client with documented ESD procedures.
• 2mm PVC Construction: Thicker than the cheap foam roll mats that curl at the edges after a month. The 0.08-inch PVC holds flat and survives repeated contact with metal hardware, tools, and cable connectors without degrading the surface resistance.
• 13.9 oz Weight: Light enough to go into a standard technician's field bag without question. For integrators doing multi-site commissioning work — deploying cameras, switches, or access readers across several locations in a week — this weight profile means it actually travels with you rather than staying on the shop bench.

Deployment Considerations:

• The operating humidity spec of 55–70% RH is important to note: in arid regions or heavily air-conditioned machine rooms running below 40% RH, the mat's dissipative effectiveness drops. Pair it with a grounded wrist strap in those environments rather than relying on mat contact alone.
• The 11.8 x 18.1-inch surface is practical for single-device work — one camera module, one switch, one NVR board at a time. It is not a full bench replacement. For staging multiple devices simultaneously, you'll want a second mat or a dedicated ESD bench surface alongside this one.

The SM-ANTI-STATIC-MAT is the right call for security integration shops that need a portable, standard-compliant ESD surface for field staging and bench commissioning of IP cameras, PoE switches, and access control hardware — particularly for teams that move between sites and can't rely on fixed ESD infrastructure at every location.
