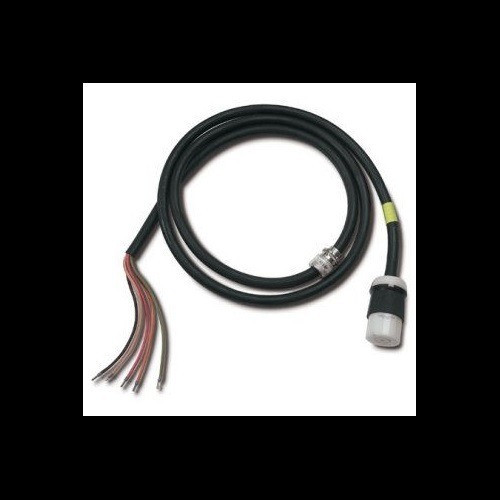

APC by Schneider Electric PDW25L21-20R TC 5-Wire Power Whip with L21-20 Connector
Overview
The APC PDW25L21-20R is a 25-foot TC (thermoplastic-insulated cable) 5-wire power whip terminated with a NEMA L21-20 locking connector — a branch-circuit wiring solution designed to connect APC APC by Schneider Electric three-phase power distribution units to facility electrical infrastructure without field assembly. If you're commissioning a high-density server room or data center power distribution rack where branch circuit flexibility matters, pre-terminated whips like this eliminate the variance and liability of field-terminated home runs.
Key Features
- 25-Foot Run Length: Enough reach to connect a top-of-rack or middle-of-row PDU to a floor-level or overhead busway tap without splicing — a common requirement in raised-floor data centers where panels are not directly adjacent to the rack row.
- 5-Wire Configuration: Three current-carrying conductors plus a neutral and ground — the correct topology for a NEMA L21-20 3-phase wye circuit. This is not a single-phase whip; verify your panel configuration before ordering.
- NEMA L21-20 Locking Connector: The L21-20 is a 3-phase, 4-wire-plus-ground twist-lock rated for 20A at 120/208V. The locking blade geometry prevents accidental disconnection under vibration or cable pull — a real concern in dense rack environments where cables are routed through cable managers under tension. Search variation: PDW25L21-20R (often searched as PDW25L21 20R).
- TC Cable Construction: Thermoplastic-insulated cable is flexible enough to route through tight spaces and rated for the physical demands of installed power infrastructure — not the same as a standard extension cord and should not be substituted for one.
Integration & Compatibility
The PDW25L21-20R is engineered for use with APC PDU models that require a field-installed power whip connection — typically modular or hardwired PDUs in 3-phase rack configurations. Confirm your PDU's input connector spec and your facility panel's breaker ampacity before deploying. The L21-20 plug mates with a matching L21-20 receptacle at the panel or busway tap; do not attempt to adapt this connector to a non-compatible receptacle. For single-phase deployments or different amperage requirements, consult the broader power whips and branch circuit accessories category for the correct variant.
Frequently Asked Questions
Q: What PDU types is the PDW25L21-20R designed for?
A: The PDW25L21-20R is a branch-circuit power whip designed for APC PDUs that accept a hardwired or field-connected 3-phase input via a NEMA L21-20 locking connector. Verify your specific PDU model's input requirements before ordering.
Q: Is this a single-phase or three-phase power whip?
A: Three-phase. The 5-wire configuration (3 phase conductors + neutral + ground) and NEMA L21-20 connector are specific to 3-phase wye circuits. It is not suitable for single-phase applications.
Q: What is the connector amperage rating on the PDW25L21-20R?
A: The NEMA L21-20 connector is rated for 20 amps at 120/208V, 3-phase. Confirm this matches your panel's breaker and PDU input rating before installation.
Q: Can this whip be used with non-APC PDUs?
A: Physically, any PDU or device with a compatible NEMA L21-20 input receptacle can accept this whip. However, it is engineered and validated for use in APC power distribution infrastructure, so confirm compatibility with other manufacturers independently.
Q: Is the PDW25L21-20R suitable for outdoor installation?
A: No environmental or outdoor rating is specified in available evidence. This product is intended for indoor data center and IT room power infrastructure use.
The PDW25L21-20R is one of those components that gets overlooked until it causes a commissioning delay — you have a rack of APC PDUs ready to go, and someone forgot to spec the branch-circuit whips. The 25-foot run on this unit covers the vast majority of raised-floor panel-to-rack distances, which saves a field fabrication call on cutover day.
Technical Highlights:
- NEMA L21-20 Twist-Lock: The locking geometry is load-bearing in dense rack environments — a straight-blade connection at 20A on a shared circuit that sees cable management tension is a liability; this connector stays seated.
- 5-Wire 3-Phase Topology: Correct for 120/208V wye distribution, which is the standard for high-density compute rows. The neutral conductor is present — necessary if any single-phase loads are mixed on the PDU output circuits.
- TC Cable Flexibility: Thermoplastic construction routes cleanly through overhead cable trays and under-floor pathways without the stiffness you get from armored alternatives — relevant when you're pulling through a populated tray with limited slack.
Deployment Considerations:
- Confirm panel breaker type and PDU input spec before ordering — the L21-20 at 20A is not interchangeable with L21-30 (30A) or single-phase L6-20 connectors, and mistakes here mean a return shipment on a tight cutover timeline.
- No environmental rating is documented for this SKU; treat it as an indoor-only component and do not deploy in wet locations or uncontrolled environments without verifying the cable jacket rating independently.
This whip is the right call for APC 3-phase PDU deployments in enterprise data halls or colocation cage buildouts where pre-terminated branch circuits are standard practice and field termination is not an option under change-control policy.
