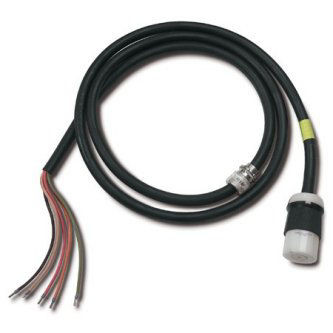

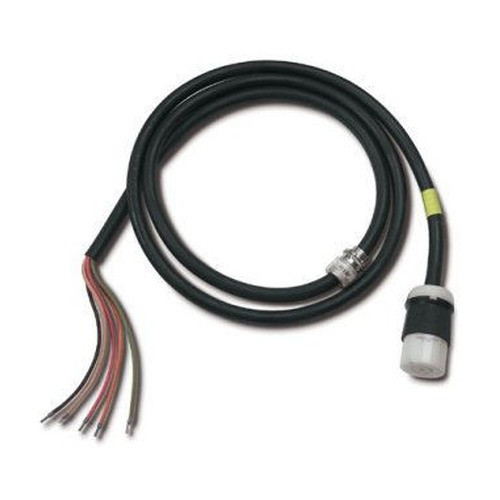

APC by Schneider Electric PDW11L21-20R 5-Wire L21-20 Power Distribution Whip
Overview
The PDW11L21-20R is a 5-wire power distribution whip from APC by Schneider Electric, designed to connect rack-mounted power distribution units (PDUs) to 3-phase power sources via an L21-20 twist-lock plug. At 11 feet, the cord provides enough reach for standard rack-to-floor PDU wiring runs in data center rows, network equipment rooms, and server closets without requiring custom-length field fabrication. If you're deploying APC by Schneider Electric power infrastructure in a structured rack environment, this whip is the factory-terminated connection point between your distribution panel and your rack PDU.
Key Features
- NEMA L21-20 Twist-Lock Termination: The L21-20 connector is a 3-phase, 4-pole, 5-wire (3Ø + neutral + ground) twist-lock rated at 20A. This is a locking connection — accidental disconnection from vibration or cable pull is not a failure mode you'll encounter in a properly seated installation.
- 5-Wire Construction: Three hot legs, a neutral, and a ground in a single jacketed assembly. Required for balanced 3-phase loads and any PDU that distributes across all three phases — common in high-density rack deployments where per-phase load balancing is part of the power design.
- 11-Foot Cord Length: Sized for typical raised-floor or overhead conduit runs to an in-row or end-of-row PDU. Avoids the slack management problems of over-length cords and the tension risk of under-length ones — 11 feet covers most standard row depths without coiling excess.
- Factory-Terminated Assembly: Pre-built and tested at the factory means no field crimping, no wire exposure risk, and no torque-spec guesswork on the connector. Consistent termination quality across every unit, which matters when you're wiring a full row of racks.
- APC PDU Ecosystem Compatibility: Designed for use with APC's Rack PDU product line — pairs with 3-phase PDUs requiring an L21-20 input. Verify your specific PDU's input connector and amperage rating before ordering.
Integration and Compatibility
The PDW11L21-20R (often searched as PDW11L21 20R) is a PDU input whip intended for APC 3-phase rack PDUs with an L21-20 receptacle inlet. Before deploying, confirm three things: (1) your PDU's input connector matches L21-20, (2) your facility's branch circuit is wired for 3-phase 20A with a compatible panel receptacle, and (3) your power planning accounts for the 11-foot run relative to your panel or busway tap location. This whip does not include a PDU — it is the interconnect cord only. For full rack power deployments, pair with the appropriate APC rack PDU and confirm phase balance across the three hot legs before commissioning.
Frequently Asked Questions
Q: What connector type does the PDW11L21-20R use?
A: The PDW11L21-20R uses an NEMA L21-20 twist-lock plug — a 3-phase, 5-wire (3 hot + neutral + ground) locking connector rated at 20A.
Q: How long is the PDW11L21-20R cord?
A: The cord is 11 feet in length, suitable for standard rack-to-panel or rack-to-busway runs in most data center and equipment room layouts.
Q: What is the PDW11L21-20R used for?
A: It is a power distribution whip — a factory-terminated input cord that connects a 3-phase rack PDU to a branch circuit panel or busway tap with an L21-20 receptacle. It is not a standalone PDU.
Q: Is the PDW11L21-20R compatible with all APC PDUs?
A: No — it is specifically for APC rack PDUs that accept an L21-20 input connector. Verify your PDU's input spec before ordering; not all APC PDUs use the L21-20 inlet.
Q: Does the PDW11L21-20R include a PDU or mounting hardware?
A: No. The PDW11L21-20R is the input whip cord only. A rack PDU and any required mounting hardware must be sourced separately.
The PDW11L21-20R is a straightforward component, but it's one where a wrong call — mismatched connector type or a cord that comes up 2 feet short — stops a rack commissioning in its tracks. The L21-20 5-wire configuration locks you into 3-phase 20A territory, so confirm your panel's receptacle and your PDU's inlet before this ships.
Technical Highlights:
- L21-20 Twist-Lock: 20A, 3-phase, 5-wire locking plug — once seated, it won't back out from cable weight or a incidental tug, which matters in dense rack rows where cord management is tight.
- 11-Foot Run: Long enough for most raised-floor drops or overhead ladder tray runs to an in-row PDU; short enough that you won't be stuffing coiled excess behind a zero-U PDU.
- Factory Termination: No field assembly means consistent build quality across every unit — important when you're standardizing cord sets across a multi-row deployment and need uniform performance.
Deployment Considerations:
- Measure your actual panel-to-PDU run before ordering — 11 feet is a fixed length, and there is no field-adjustable slack. Account for any vertical drops from overhead busway or under-floor routing.
- Confirm your APC PDU's input connector is specifically L21-20 and rated for 20A 3-phase; APC produces PDUs with multiple inlet types, and this whip will not mate with L15-20, L21-30, or other variants.
Best fit for a data center or server room deploying APC 3-phase rack PDUs in a pre-planned row layout where the panel-to-rack distance falls within the 11-foot run — particularly where standardized, factory-terminated cord sets are required for facilities compliance.
