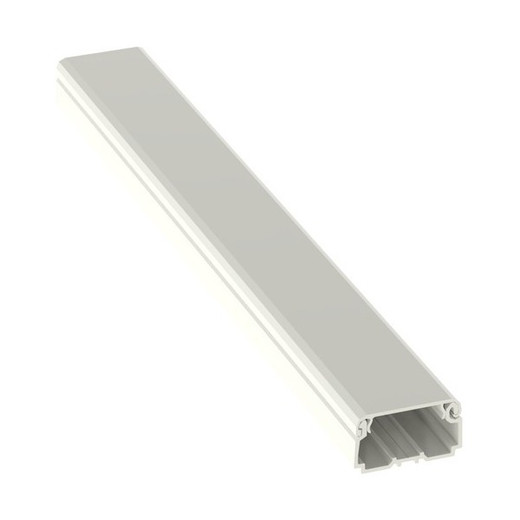

Panduit LDPH10WH8-A Single Channel Power-Rated Surface Raceway

Overview

The Panduit LDPH10WH8-A is an 8-foot, two-piece latching PVC surface raceway rated for applications up to 600 V — the Pan-Way® LDPH10 series solution for integrators who need to run power and low-voltage cables along perimeter walls, baseboards, or ceilings without conduit work. At 1.52 inches wide by 0.86 inches deep (39mm × 21.8mm), it sits low-profile against the wall while providing enough internal cross-section for a clean, compliant cable run. If you're roughing in camera feeds, access control wiring, or mixed power/data drops in a finished interior space, this raceway lets you do it without tearing into drywall.

The LDPH10WH8-A ships in packages of 8 units (64 linear feet per pack), with carton quantities of 160 pieces — sized for multi-room rollouts or branch deployments where buying in volume is the practical move.

Key Features

• 600 V Power Rating: Unlike low-voltage-only raceways, the LDPH10 series is rated to handle line-voltage power runs up to 600 V. That means you can route both power and data in a single channel system without violating code — relevant when running PoE injectors, IP camera power supplies, or access panel feeds along finished walls.
• Two-Piece Latching Cover Design: The hinged, tamper-resistant cover lifts open to allow cables to be laid in horizontally — no fishing or pulling required. The latch keeps the cover locked closed once seated, resisting casual removal. This matters in schools, clinics, and public spaces where cable tampering is a real concern.
• Pre-Punched Mounting Holes: Factory-punched holes eliminate layout measuring on site. Combined with the applied adhesive backing (see below), you have two independent fastening methods — adhesive for quick placement, screws for permanent structural hold on drywall or concrete.
• Factory-Applied Adhesive Backing: Peel-and-stick adhesive is already applied at the factory, not supplied as a separate strip. On smooth, clean wall surfaces this allows single-person installation without holding the raceway in place while driving fasteners — meaningful on long runs where every extra pair of hands costs money.
• UL5A Listed / UL94V-0 / FT4 / TIA-EIA Compliant: UL5A listing covers surface metal and nonmetallic raceways specifically — this isn't a generic UL mark. UL94V-0 is a material flammability rating (self-extinguishing), and FT4 is the Canadian/UL vertical flame test for wiring systems. These certifications matter for permit pull and AHJ approval on commercial and institutional jobs. Meets TIA/EIA cabling infrastructure standards as well.
• PVC Construction, White Finish: PVC is lightweight, easy to cut on-site with standard tools, and takes paint if the installation requires color-matching to existing trim. The white finish blends with standard commercial wall finishes without painting in most cases.
• 1.52" × 0.86" Internal Dimensions: The 39mm × 21.8mm channel cross-section accommodates multiple Cat6 runs, coax, or mixed low-voltage bundles. Not sized for conduit-scale pulls, but appropriate for the edge-device drops common in access control and surveillance installs.
• Terminates with Pan-Way Surface Mount Boxes: Designed to terminate directly into Panduit surface mount outlet box solutions and Mini-Com Surface Mount Boxes — so you can land your keystones, RJ45 jacks, or coax connectors at the end of a raceway run without adapters or custom fabrication.

Integration & Compatibility

The LDPH10WH8-A is part of Panduit's Pan-Way® surface raceway line and is designed for use with the LDPH family of fittings — inside corners, outside corners, couplers, T-fittings, and end caps that let you navigate a full room perimeter without exposed gaps. For integrators building out structured cabling for IP camera systems or access control panels, the Pan-Way system provides a complete raceway ecosystem rather than a mix of incompatible components from different brands.

Routing PoE camera drops or card reader wiring through surface raceway is common on retrofit jobs in occupied spaces — hospitals, retail interiors, school classrooms — where PoE switches feed devices along finished walls. The 600 V rating also allows this raceway to carry line-voltage power feeds in the same channel where local codes permit mixed-voltage runs (verify AHJ requirements; NEC 300.3 applies).

For broader cable management planning on multi-room deployments, pair this raceway with appropriate Panduit fittings and surface-mount outlet boxes to keep terminations clean and serviceable. The latch cover design means future adds or moves — adding a camera or swapping a reader — don't require cutting into walls.

What's in the Box

• 8× Panduit LDPH10WH8-A surface raceway sections (8 ft each = 64 linear feet per package)
• Factory-applied adhesive backing on each section

Frequently Asked Questions

Q: Is the LDPH10WH8-A rated for power wiring or low-voltage only?

A: It is rated for applications up to 600 V, so it can be used for both line-voltage power runs and low-voltage cabling such as Cat6 or coax. Verify local AHJ and NEC requirements for mixed-voltage runs before combining power and data in the same channel.

Q: What certifications does the LDPH10WH8-A carry?

A: The LDPH10WH8-A is UL5A Listed, UL94V-0 rated (self-extinguishing PVC), FT4 rated, and meets TIA/EIA cabling infrastructure standards. These are the key marks required for permit-pulled commercial and institutional installations.

Q: How does the adhesive backing work — is it strong enough to hold on its own?

A: The factory-applied adhesive is designed for smooth, clean wall surfaces and speeds installation by allowing single-person placement. For permanent structural hold — especially on textured, painted concrete, or high-traffic areas — supplement with the pre-punched mounting holes and screws. Use both methods on commercial jobs.

Q: What fittings are compatible with the LDPH10WH8-A for corners and transitions?

A: The LDPH10WH8-A is designed for use with the Panduit LDPH family of fittings, which includes inside corners, outside corners, couplers, T-fittings, and end caps. It also terminates into Panduit surface mount outlet box solutions and Mini-Com Surface Mount Boxes for clean keystone or jack terminations.

Q: How much linear footage comes in a package, and what is the carton quantity?

A: Each package contains 8 sections at 8 feet each, for 64 linear feet per package. Carton quantity is 160 pieces (1,280 linear feet per carton), which is practical for large multi-room deployments.

Q: Can the LDPH10WH8-A be painted to match existing wall color?

A: Yes. The PVC construction accepts standard interior paint. The white factory finish matches most commercial wall finishes without painting, but on-site painting is practical if color-match is required.

Jerry Tildsen

The detail that separates the LDPH10WH8-A from generic raceway on retrofit security jobs is the 600 V power rating combined with UL5A listing — most surface raceway you'll find at a big-box home center is rated for low-voltage only, which creates a code problem the moment you try to run a power feed alongside your camera drops. The LDPH10WH8-A handles both in the same channel, which matters when you're finishing a camera install in a school corridor or a clinic hallway and need to get power to a mid-run PoE injector without running a separate conduit sleeve.

Technical Highlights:

• 600 V Rating: Allows line-voltage and low-voltage cable in a single raceway system — eliminates the need for a separate conduit run for power on mixed installations where local code permits combined runs.
• UL5A Listed / UL94V-0 / FT4: UL5A specifically covers nonmetallic surface raceways — this is the listing AHJs look for on commercial permit pulls, not a generic UL mark. UL94V-0 means the PVC material self-extinguishes; FT4 covers vertical flame propagation for wiring systems.
• 1.52" × 0.86" (39mm × 21.8mm) Cross-Section: Sized for multi-drop low-voltage runs — two or three Cat6 cables, coax, or mixed bundles fit comfortably. Not a large conduit replacement, but right-sized for edge-device drops at cameras, readers, and intercoms.

Deployment Considerations:

• The factory adhesive works well on smooth painted drywall and clean tile — plan to use the pre-punched mounting holes with screws on textured masonry, older painted concrete, or anywhere the raceway will see physical contact (hallway corners, low-mount runs). Don't rely on adhesive alone on non-ideal surfaces.
• The LDPH10WH8-A is designed specifically for the LDPH fitting family — before ordering, confirm you have the matching inside corners, outside corners, and couplers for your run geometry. Mixing in fittings from other Pan-Way series (LD5, LD10, LDHF) risks cover gaps and misaligned latch points.

This raceway is a strong fit for school and healthcare retrofit deployments — occupied spaces where you cannot open walls, need a tamper-resistant cover that isn't trivially pried off, and require a product that passes the AHJ inspection on permit-pulled commercial work. The 8-pack format (64 linear feet) is practical for a single classroom or clinic bay without over-buying.
