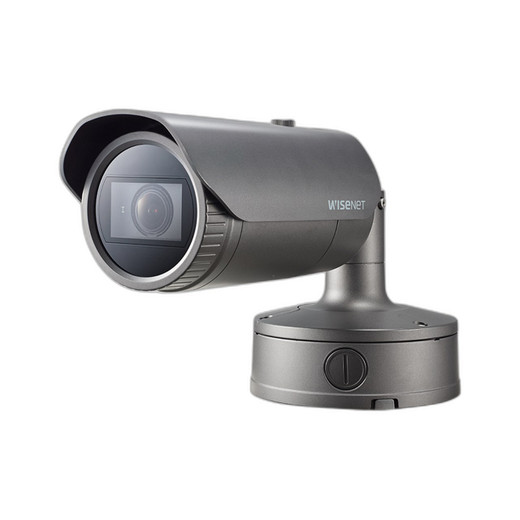

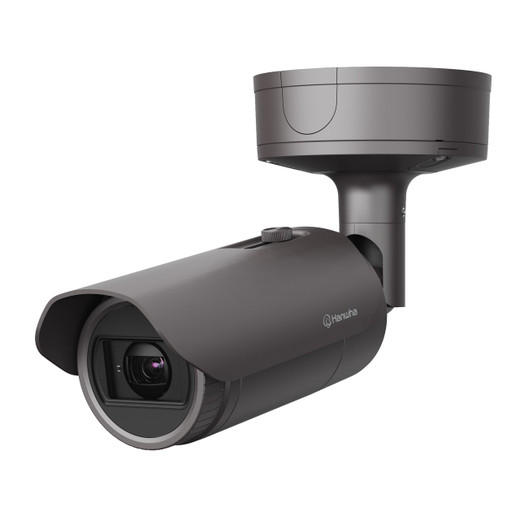

Hanwha XNO-8082R/KAP 6MP Varifocal Network Camera
The Hanwha XNO-8082R/KAP delivers professional-grade 6MP imaging with varifocal lens flexibility, making it ideal for mid-range surveillance deployments requiring adaptable field-of-view coverage.
Image quality is anchored by 6MP resolution paired with WDR (Wide Dynamic Range) processing and IR night vision capability, enabling clear capture across varying lighting conditions. The camera supports multiple compression standards—H.265, H.264, and MJPEG—allowing operators to optimize bandwidth and storage based on deployment requirements. DC Auto Iris and P-iris lens control automatically adjust to light changes, maintaining consistent image quality throughout the day.
Built for harsh environments, the XNO-8082R/KAP carries IP66/IP67 weatherproofing and IK10 impact resistance, protecting against dust, water ingress, and vandalism. The aluminum housing and dark grey finish provide durability across outdoor and semi-indoor installations. Operating temperatures range from -50°C to +60°C, supporting deployment in extreme climates. At 4.85 kg, the compact form factor simplifies mounting on walls, poles, or brackets.
Power flexibility is a key advantage: the camera operates via PoE (IEEE 802.3af), 12VDC, or 24VAC inputs, reducing infrastructure dependencies in retrofit and new-build scenarios. Gigabit Ethernet connectivity (RJ-45 10/100/1000BASE-T) ensures reliable data transmission. Built-in analytics include people counting, enabling traffic flow analysis and occupancy monitoring for retail, transit, and facility management applications.
Integration is straightforward: ONVIF Profile S/G/T compliance ensures compatibility with third-party VMS platforms, while SUNAPI (HTTP API) enables custom application development. 4GB RAM and 512MB Flash provide sufficient onboard resources for stable operation. Audio input support adds two-way communication capability when required.
The varifocal lens design—a key differentiator—allows field adjustment of focal length without returning to the factory, reducing installation time and enabling mid-deployment coverage optimization. On-screen text display (up to 85 characters) supports timestamp, location, or event labeling for audit and compliance purposes.
- 6MP resolution with WDR and IR night vision for 24/7 visibility
- IP66/IP67 weatherproof, IK10 impact-resistant aluminum housing
- Varifocal DC Auto Iris and P-iris lens for field-adjustable coverage
- Multi-codec support (H.265, H.264, MJPEG) for flexible bandwidth management
- PoE, 12VDC, or 24VAC power options for diverse installations
- ONVIF Profile S/G/T + SUNAPI for seamless platform integration
Expert Take from Marty Allison
The XNO-8082R/KAP is a solid choice for integrators needing weatherproof, mid-resolution coverage with flexible power and lens options. The varifocal design and triple-codec support reduce post-deployment adjustments, and ONVIF compliance ensures vendor lock-in doesn't constrain your VMS choice. The people counting analytics add modest intelligence without inflating cost. Best suited for outdoor perimeter, parking, and facility monitoring where IP66/67 durability and operational temperature range (-50°C to +60°C) matter.
