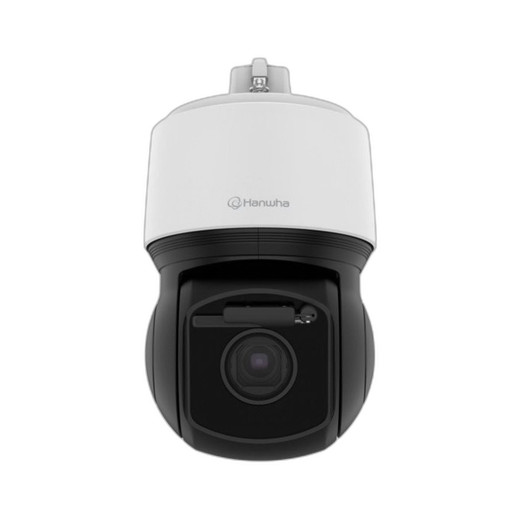

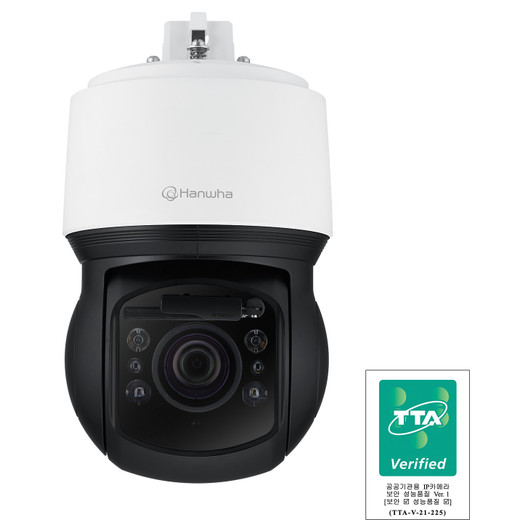

Hanwha XNP-8300RW/KAP 6MP PTZ Network Camera
The Hanwha XNP-8300RW/KAP is a professional-grade 6MP PTZ camera designed for long-range outdoor surveillance in harsh environments. Built on the Wisenet platform, it combines high-resolution imaging, extended infrared capability, and extreme weather durability to deliver reliable monitoring across municipal, industrial, and critical infrastructure applications.
Key Features
- 6MP resolution at 30 fps with H.265, H.264, and MJPEG codec support
- 5mm–150mm varifocal lens with 30x optical zoom for wide-area to telephoto coverage
- 200m Wise IR range for continuous night surveillance without visible light spillover
- 120dB extreme WDR (Wide Dynamic Range) for high-contrast lighting scenarios
- IP66 and IK10 vandal/impact resistance for outdoor and exposed deployments
- PoE++ (802.3bt, Class 6) powered with integrated injector support
- Day/Night ICR mode with intelligent mode transitions
- ONVIF compliant for open-platform integration
- microSD local storage support for edge recording
- HTTPS encryption for secure network communication
Technical Performance
Image quality remains consistent across extreme lighting conditions thanks to 120dB WDR technology that resolves detail in backlit scenes, reflective surfaces, and mixed shadow/sunlight environments. The 200m IR range with 3m warm-up capability ensures night-time object recognition without compromising daytime color fidelity through seamless ICR switching. H.265 compression reduces bandwidth and storage demands without sacrificing resolution clarity—critical for multi-camera deployments across distributed sites.
The varifocal lens design provides operators flexibility to adjust coverage from wide 5mm settings for perimeter overview to 150mm telephoto positioning for facial/license plate detail identification. 30x optical zoom enables asset tracking and investigative zoom without relying on digital interpolation that degrades image quality.
Environmental & Network Design
IP66 rating (dust-tight, high-pressure water jet resistant) and IK10 impact resistance meet NEMA 4X standards for industrial outdoor mounting. PoE++ delivery eliminates separate power infrastructure, simplifying installation while reducing cable runs. Ethernet connectivity ensures centralized management and analytics integration across enterprise security platforms.
Ideal Applications
- Municipal and traffic surveillance corridors
- Port, airport, and logistics facility perimeter monitoring
- Critical infrastructure and utility asset protection
- Industrial campus wide-area coverage
- Extreme weather environments (coastal, high-altitude, industrial zones)
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The XNP-8300RW/KAP addresses a specific gap in PTZ deployments: long-range outdoor surveillance without compromise. The 200m IR capability—exceptional in the 6MP category—combined with 120dB WDR makes this unit suitable for uncontrolled environments where lighting varies dramatically (dawn/dusk transitions, reflective surfaces, mixed daylight/shadow). PoE++ Class 6 power delivery eliminates the need for auxiliary power injectors at each camera location, reducing installation complexity and failure points in distributed networks.
The NEMA 4X/IP66/IK10 rating triple confirms ruggedness; comparable fixed cameras often sacrifice one rating for cost. H.265 codec support is essential for organizations managing 24/7 PTZ arrays where bandwidth budgets are tight. ONVIF compatibility ensures vendor flexibility if your platform strategy shifts.
For municipalities and industrial operators deploying 5+ PTZ units across exposed sites, this camera justifies its premium positioning through reduced total-cost-of-ownership via simplified power infrastructure and native codec efficiency.
