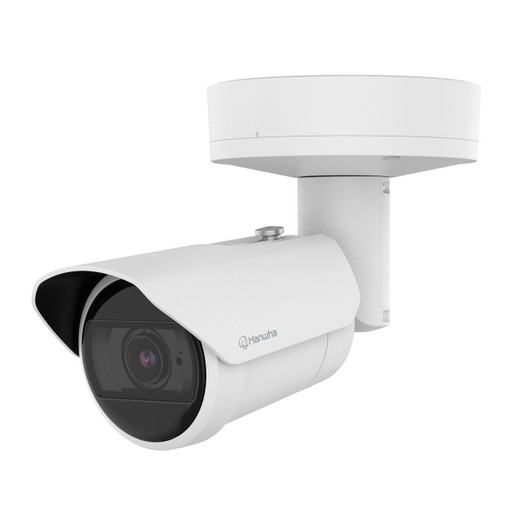

The Hanwha XNO-A9084R/KEX delivers professional-grade 8MP imaging in a ruggedized outdoor bullet form factor, purpose-built for demanding surveillance deployments requiring impact resistance and environmental durability.
Image quality is anchored by 8MP resolution paired with varifocal lens capability, enabling flexible framing across diverse site layouts. WDR (Wide Dynamic Range) processing handles mixed lighting conditions—bright windows adjacent to shadowed areas—while preserving detail in both extremes. IR illumination with 850nm wavelength and Day/Night switching ensures continuous monitoring from dusk through dawn without light pollution or auxiliary fixtures. H.265, H.264, and MJPEG codec support optimizes bandwidth and storage efficiency across network scales.
The camera's structural design emphasizes field reliability. Aluminum and polycarbonate construction with a hard-coated optical window resists physical abuse; IK10 impact rating confirms compliance with EN 62262 standards for high-vandalism environments. IP66 and IP67 environmental sealing (per IEC 60529) protects against dust ingress and water jets, qualifying deployment in uncovered outdoor positions, elevated mounting, and coastal salt-spray zones. 4GB RAM and 8GB eMMC storage provide onboard processing headroom and local buffering capability.
Connectivity is enterprise-standard. Metalshielded RJ-45 (10/100BASE-T) Ethernet carries both PoE power and video over a single cable, eliminating separate power runs and reducing installation complexity. The camera operates on PoE (802.3af) supply, compatible with standard injectors and midspan solutions. Encrypted firmware, Secure Boot, and signed firmware mechanisms enforce security at the hardware layer.
Integration leverages open-architecture ONVIF compliance (Profiles S, G, T, M), enabling plug-and-play configuration within ONVIF-aware VMS platforms and third-party management software. Selectable audio inputs (mic-in / line-in) accommodate site-specific sound capture needs. Field-installable color options—Gray, Green, Red, Blue, Black, White, Mosaic, and Purple—enable aesthetic alignment with mounting substrates.
- 8MP resolution with varifocal lens for adaptive framing
- WDR + IR (850nm) for day/night and high-contrast scene handling
- IK10 impact rating and IP67 environmental sealing for vandal-prone outdoor sites
- PoE (802.3af) powered with metalshielded Ethernet connector
- ONVIF S/G/T/M certified for broad VMS ecosystem integration
- Encrypted firmware and Secure Boot for hardened security posture
The XNO-A9084R/KEX suits perimeter and facility entry-point surveillance where both image fidelity and durability are non-negotiable. Its IK10 rating and sealed optics handle deliberate tampering and weather extremes; varifocal capability and WDR reduce reliance on multiple SKUs for mixed lighting. PoE simplicity and ONVIF standardization keep deployment timelines predictable and maintenance costs aligned with mainstream infrastructure.
