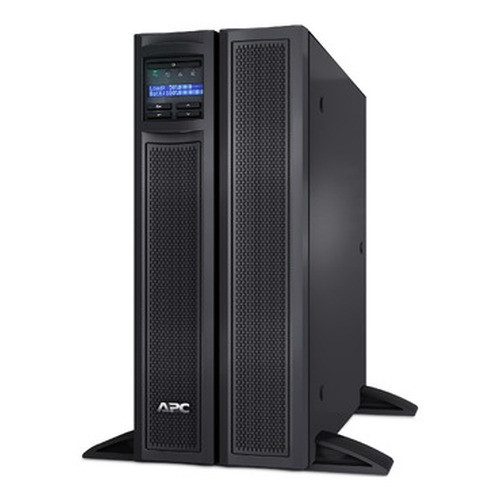

APC by Schneider Electric TAA APC Smart-ups X Line Interactive 2000VA Rack/tower - SMX2000LVNCUS

APC by Schneider Electric SMX2000LVNCUS Rack/Tower Line-Interactive UPS 2000VA 1800W

Overview

The APC by Schneider Electric SMX2000LVNCUS is a 2000VA / 1800W line-interactive uninterruptible power supply built for IT closets, surveillance server rooms, and mid-size commercial equipment racks that need clean, regulated power and genuine sine wave output — not the stepped approximation that cheaper units deliver. At 1.92 kVA effective capacity and a rack/tower convertible 4U form factor, it slots into standard 19-inch enclosures or stands vertically on a shelf, whichever the installation requires. If you're protecting NVRs, access control panels, network switches, or communications equipment, this is the class of UPS where output waveform and voltage regulation actually matter.

The Smart-UPS X line sits above entry-level APC units and is intended for environments where a brownout or extended low-voltage condition is as damaging as a full outage — the SMX2000LVNCUS handles both without switching to battery unnecessarily.

Key Features

• True Sine Wave Output: Many line-interactive UPS units output a stepped approximation waveform that causes heat and audible noise in motor-driven or active-PFC power supplies. The SMX2000LVNCUS delivers a genuine sine wave (5% THD max), which is the correct choice for protecting server-class hardware, VoIP gateways, and network video recorders where power supply quality affects component longevity.
• Automatic Voltage Regulation (AVR) — 70V to 153V Input Range: The AVR circuit corrects input voltage from as low as 70V up to 153V without touching the battery. In older commercial buildings or industrial environments where voltage sags are routine, this means the battery isn't constantly cycling — battery life stays predictable, and runtime is available when an actual outage hits.
• 1800W / 1.92 kVA Output Capacity: At full rated load, the unit can sustain 1800 watts of connected equipment. For a typical surveillance server room with an NVR, PoE switch, and access control panel, that headroom is comfortable at well under 50% load — meaningful because UPS runtime extends substantially as load decreases.
• 540J Surge Energy Rating: Surge protection at 540 joules handles most transient events on commercial circuits. This is not the primary reason to deploy a Smart-UPS X, but it means surge events won't bypass protection and reach connected hardware.
• Mixed Outlet Configuration — NEMA 5-15R, NEMA 5-20R, NEMA L5-20R: The outlet bank covers standard 15A loads (NEMA 5-15R), heavier 20A straight-blade devices (NEMA 5-20R), and twist-lock 20A connections (NEMA L5-20R). This flexibility matters in retrofit installs where existing equipment uses different plug standards without requiring adapters.
• Web-Based Management: Remote monitoring via the network management interface means power events, battery health, and load status are visible from your VMS or IT management console without walking to the rack. For multi-site deployments managed centrally, this is the spec that separates manageable infrastructure from blind spots.
• 50/60 Hz Auto-Sensing Input Frequency: The SMX2000LVNCUS accepts both 50Hz and 60Hz input, which matters for equipment originally purchased for other markets or in facilities with non-standard power infrastructure.
• Audible Alarm System: On-battery and low-battery alarms give local notification without requiring network connectivity — useful during the events (power outages) most likely to affect your network infrastructure simultaneously. Auto-restart brings the unit back online automatically once utility power returns, without requiring manual intervention.
• 55 dB Noise Level: At 55 dB, this unit is perceptible in a quiet room but acceptable in a telecom closet or server room environment. It's not silent — factor this in if the UPS must coexist with noise-sensitive environments like interview rooms or reception areas.

Integration and Compatibility

The SMX2000LVNCUS is compatible with APC's PowerChute network shutdown software for graceful server shutdown during extended outages, and the web-based management interface integrates with standard SNMP-capable NMS platforms. The rack/tower convertible 4U chassis fits standard EIA-310 19-inch racks. The mixed NEMA outlet configuration accommodates most commercial IT and security equipment without adapters. For surveillance-specific deployments, pair it with a managed PoE switch and an NVR to build a protected recording infrastructure that survives power events without data loss or camera downtime.

For broader UPS and power protection options across capacities and topologies, the APC Smart-UPS line offers models from 500VA through multi-rack online double-conversion units — the SMX2000LVNCUS sits at a practical midpoint for commercial security and IT closet applications. Explore the full APC by Schneider Electric catalog for compatible accessories including external battery modules that extend runtime beyond what the internal battery provides.

Frequently Asked Questions

Q: What is the difference between the SMX2000LVNCUS and a standard line-interactive UPS?

A: The SMX2000LVNCUS delivers true sine wave output with automatic voltage regulation across a 70V–153V input range. Many basic line-interactive UPS units output a stepped waveform and have narrower voltage correction windows. The sine wave output and wide AVR range make it appropriate for active-PFC power supplies and sensitive network equipment.

Q: Can the SMX2000LVNCUS be rack-mounted?

A: Yes. The unit is a rack/tower convertible 4U chassis that fits standard 19-inch EIA-310 equipment racks. It can also be used in tower orientation if rack space is not available.

Q: What outlet types does the SMX2000LVNCUS provide?

A: The SMX2000LVNCUS includes NEMA 5-15R (standard 15A), NEMA 5-20R (20A straight-blade), and NEMA L5-20R (20A twist-lock) outlets, covering the most common commercial equipment plug types without adapters.

Q: Does the SMX2000LVNCUS support remote monitoring?

A: Yes. It includes web-based management for remote visibility into power events, battery status, and load levels. It is also compatible with APC's PowerChute network shutdown software for automated graceful shutdown of connected servers.

Q: What is the input voltage operating range for the SMX2000LVNCUS?

A: The AVR circuit operates from 70V minimum to 153V maximum input without switching to battery. This wide range handles voltage sags and swells common in commercial and light-industrial facilities without unnecessary battery cycling.

Q: Is the SMX2000LVNCUS TAA compliant?

A: The product name references TAA (Trade Agreements Act) compliance, which is relevant for federal, state, and local government procurement requiring domestically or TAA-country manufactured equipment. Confirm TAA status with your procurement team for specific contract vehicles.

Jerry Tildsen

The spec I tell integrators to focus on with the SMX2000LVNCUS is the 70V–153V AVR input window. In a lot of the commercial buildings I see — older office parks, converted warehouse spaces, multi-tenant facilities — the utility voltage is not sitting clean at 120V. It's sagging under load, swelling in the early morning, and running at 105V in long runs from the panel. A UPS with a narrow AVR window switches to battery constantly in those environments, which is both annoying and hard on the battery. The Smart-UPS X holds regulation across that wide range without touching the battery, which means the battery is available when you actually need it.

Technical Highlights:

• True Sine Wave / 5% THD Max: Active-PFC power supplies in modern servers and NVRs are designed for sine wave input. Feed them a stepped approximation and you get heat, audible noise, and sometimes instability. The SMX2000LVNCUS stays under 5% total harmonic distortion — clean enough for any commercial IT or surveillance load.
• 1800W / 540J Surge: 1800 watts of real output power gives you comfortable headroom for a fully loaded security closet — NVR, managed PoE switch, access control panel, and a couple of ancillary devices — at well under 60% load. The 540J surge rating handles transient events that would otherwise reach connected hardware.
• Web Management + Auto-Restart: Remote visibility into battery health and load percentage matters when you're managing multiple sites. The auto-restart means the unit comes back online without a truck roll after an overnight outage — important for unmanned remote locations.

Deployment Considerations:

• The 4U rack/tower convertible chassis fits standard 19-inch racks, but verify rack depth before ordering — UPS units at this capacity are deep, and shallow wall-mount racks often won't accommodate them properly.
• At 55 dB operational noise, this unit is not appropriate for noise-sensitive environments. For IT closets and server rooms it's fine; for open office areas or reception spaces adjacent to the install location, factor the acoustic footprint into your site survey.

The SMX2000LVNCUS is the right call for commercial surveillance and IT closet builds — specifically mid-size deployments where you're protecting an NVR plus PoE switching infrastructure and need web-based power monitoring without stepping up to a full online double-conversion unit.
