APC by Schneider Electric TAA APC Smart-ups On-line 10KVA/10KW Rack/tower 208V 4X - SRT10KXLTUS

APC by Schneider Electric SRT10KXLTUS 10KVA Online Double-Conversion Rack/Tower UPS

Overview

The APC by Schneider Electric SRT10KXLTUS is a 10KVA/10KW double-conversion online UPS engineered for enterprise IT infrastructure, data centers, and mission-critical edge deployments where true zero-transfer-time power conditioning is non-negotiable. Unlike line-interactive designs that only engage conversion during disturbances, double-conversion topology means every watt delivered to your equipment passes through the inverter continuously — incoming utility power is irrelevant to output stability. The result is a sine-wave output isolated from every upstream disturbance: sags, swells, harmonics, and complete outages. If you're protecting high-density server racks, NVR arrays, or enterprise networking equipment on 208V circuits, the SRT10KXLTUS belongs on your shortlist.

It ships in a flexible rack/tower form factor, supporting both data center rack deployment and standalone tower use for MDFs or wiring closets without dedicated rack infrastructure. The 208V input/output configuration targets commercial and enterprise electrical environments — not residential 120V panels.

Key Features

• Double-Conversion Online Topology: The inverter is always active, meaning zero transfer time to battery during a utility failure. For servers, NVRs, and network switches that reset or corrupt data on even a 4ms gap, this is the architecture that eliminates the risk entirely. Line-interactive UPS units with 2–10ms transfer windows are inappropriate for the equipment this unit is designed to protect.
• 10KVA / 10KW Output at Unity Power Factor: A 1.0 power factor means the kVA and kW ratings are identical — 10KW of real power capacity. Many competing units advertise 10KVA but deliver only 8–9KW due to sub-unity power factors. This matters when you're calculating actual load headroom across a rack of servers or surveillance recorders.
• True Sine Wave Output: The inverter produces a clean sine waveform, not a stepped approximation. Active PFC power supplies in modern servers will fault, run hot, or fail prematurely on simulated sine. The SRT10KXLTUS eliminates that failure mode.
• 208V Input with Wide Frequency Acceptance (40–70 Hz): The 40–70 Hz input frequency window accommodates generator power, which often runs off-nominal frequency during startup or under load. This is a deployment-critical spec in any site where diesel generator backup is part of the power chain — the UPS won't reject generator input during a utility outage.

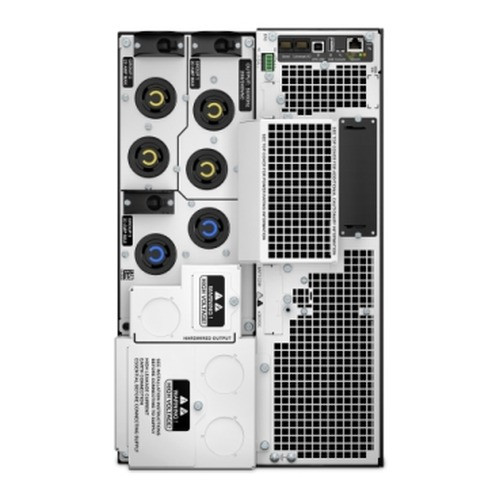

• Output Circuit Flexibility — 4x L6-20R + 2x L6-30R + Hard Wire: Six separately addressable outlet groups (four 20A twist-lock and two 30A twist-lock) plus a hard-wire 3-wire 2PH+G terminal for direct panel connection. The mix of L6-20R and L6-30R supports both standard rack PDU connections and high-draw equipment like larger switches or storage arrays without an adapter chain.
• 480J Surge Energy Rating: Provides meaningful transient suppression on the input side. In environments with noisy utility feeds or frequent switching transients, this absorbs what the double-conversion topology doesn't isolate by default.
• 3:1 Crest Factor Tolerance: Handles loads with high peak-to-RMS current ratios — common with switching power supplies, variable frequency drives, and medical equipment. Many UPS units with lower crest factor tolerance clip peaks and deliver distorted output under reactive loads.
• SmartSlot Expansion: The SmartSlot interface accepts APC network management cards, environmental monitoring modules, and relay I/O cards — without opening the unit or voiding anything. If your monitoring infrastructure requires SNMP traps, Modbus, or BACnet integration, SmartSlot is the path.
• Dual Management Interfaces — USB + RJ-45 Serial: Provides both USB and RJ-45 serial (10/100Base-T capable) management connectivity. The serial RJ-45 interface supports direct integration with PowerChute software and DCIM platforms. Dual interfaces prevent a management dead-end if one port is occupied by a different system.
• Emergency Power Off (EPO): Hard-wired EPO input allows facility-level emergency shutdown integration. Required by NEC 645.10 in many data center and computer room installations — the SRT10KXLTUS ships with this capability standard, not as a purchased option.
• VRLA Battery with 5-Year Design Life: Sealed lead-acid VRLA chemistry is maintenance-free and compatible with standard UPS enclosures without ventilation requirements for hydrogen venting. The 5-year battery design life (at 25°C reference temperature) provides a replacement planning benchmark for service contracts and lifecycle cost modeling.
• Audible Alarm System: Configurable audible alarms provide local notification of on-battery, low-battery, and fault conditions — important in unmanned equipment rooms where visual-only alerts are missed.

Integration and Compatibility

The SRT10KXLTUS integrates with APC's PowerChute Business Edition and PowerChute Network Shutdown software via USB or the RJ-45 serial interface, enabling graceful OS shutdown sequencing across virtualized environments, Windows Server, and Linux hosts during extended outages. The SmartSlot accepts the full APC AP9xxx network management card family for SNMP, Modbus RTU, EnergyWise, and third-party DCIM integration.

For power protection deployments requiring external battery expansion, the SRT10KXLTUS is compatible with APC's SRT extended runtime battery packs — field-installable without powering down. If you're spec'ing this into a larger installation, pair it with an APC UPS system monitoring framework or review the broader UPS systems catalog for complementary capacity options. For installations requiring coordinated rack power distribution, consider pairing with a compatible rack PDU to distribute the L6-20R and L6-30R outputs across multiple rack units without daisy-chaining.

The TAA-compliant designation makes the SRT10KXLTUS eligible for U.S. federal, state, and municipal procurement vehicles where Trade Agreements Act sourcing is contractually required.

Frequently Asked Questions

Q: What is the difference between the SRT10KXLTUS and a standard line-interactive UPS at this capacity?

A: The SRT10KXLTUS uses double-conversion online topology, meaning the inverter runs continuously and there is zero transfer time to battery during a power failure. Line-interactive UPS units typically have a 2–10ms transfer gap, which can cause resets or data corruption in sensitive servers and storage equipment. If zero-transfer-time is required, double-conversion is the correct architecture.

Q: Does the SRT10KXLTUS support generator input?

A: Yes. The input frequency acceptance range is 40–70 Hz, which accommodates diesel generator output that may run off-nominal frequency during startup or under varying load. This makes the SRT10KXLTUS appropriate for sites where generator backup is part of the power continuity plan.

Q: Is the SRT10KXLTUS TAA compliant?

A: Yes. The SRT10KXLTUS carries a TAA (Trade Agreements Act) designation, making it eligible for U.S. federal government and many state and municipal procurement contracts that require TAA-compliant sourcing.

Q: What outlet types does the SRT10KXLTUS provide?

A: The unit provides four NEMA L6-20R (20A, 208V twist-lock) outlets, two NEMA L6-30R (30A, 208V twist-lock) outlets, and a hard-wire 3-wire terminal (2PH + G) for direct panel connection — a total of six protected outlet positions plus the hard-wire terminal.

Q: Can I add network management or environmental monitoring to the SRT10KXLTUS?

A: Yes. The SmartSlot interface accepts APC network management cards (AP9xxx family) for SNMP, Modbus, and DCIM integration, as well as environmental monitoring modules — all field-installable without powering down the unit.

Q: What is the battery technology and expected service interval?

A: The SRT10KXLTUS uses sealed lead-acid VRLA (Valve-Regulated Lead Acid) batteries with a 5-year design life at 25°C reference temperature. VRLA batteries are maintenance-free and do not require dedicated ventilation for hydrogen management, simplifying installation in enclosed rack or closet environments.

Ted Perry

The SRT10KXLTUS is one of the more deployment-versatile 10KVA units I've specified — the combination of a genuine 1.0 power factor (10KW real power, not 8KW with inflated kVA math) and a 40–70 Hz input frequency window makes it appropriate for sites that can't guarantee clean utility frequency during a generator start sequence. That generator-compatibility window alone closes out a lot of competing units at this capacity tier.

Technical Highlights:

• Double-Conversion at 10KW Real Power: Unity power factor means you're actually getting 10,000W of usable capacity, not the 8,000–9,000W you'd get from a 10KVA unit with 0.8–0.9 PF. Size your load at 80% of rated: plan for 8KW of connected equipment to maintain headroom.
• 3:1 Crest Factor: This is the spec that protects switching power supplies under inrush. At startup, a rack of servers can pull 3x their steady-state current for a few cycles. A UPS with a 2:1 crest factor clips those peaks and delivers distorted output — the 3:1 rating here handles that inrush without output degradation.
• 480J Surge Absorption + Online Isolation: Double-conversion inherently isolates the output from most input transients, but the 480J surge rating on the input side handles events large enough that the rectifier needs help. Useful context for sites near industrial switching equipment or outdoor utility feeds with frequent transient activity.

Deployment Considerations:

• The hard-wire 3-wire terminal requires a licensed electrician for termination and local permit — budget that into the installation timeline. The L6-20R and L6-30R outlets are field-ready, but the hard-wire connection is not a DIY task on a 10KW unit at 208V.
• VRLA battery design life is rated at 25°C. For every 8–10°C above that, expect battery service life to roughly halve. In warm equipment rooms without dedicated cooling, plan a shorter replacement cycle than the 5-year benchmark.

For a federal data center or secure government facility where both TAA compliance and generator-backed power continuity are hard requirements, the SRT10KXLTUS covers both boxes without requiring add-on accessories — the TAA designation is built in, and the wide frequency input handles the generator transition without a separate power conditioner in the chain.
