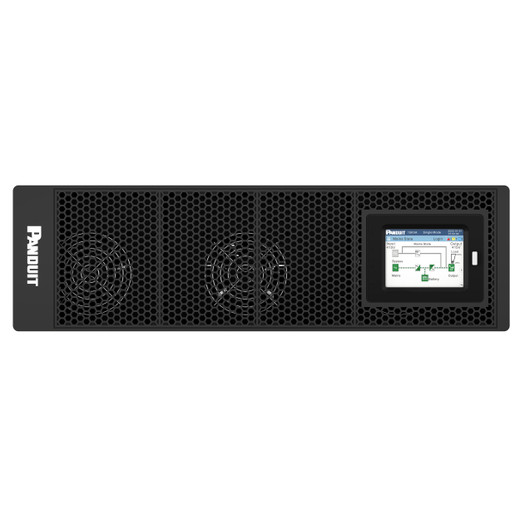

Panduit U15N32V SteadySine 15kVA Rack-Mount UPS

The Panduit U15N32V is a 15kVA rack-mount uninterruptible power supply engineered for data center, edge computing, and enterprise micro-data-center deployments where uptime and power quality directly impact revenue and SLA compliance. Part of the SteadySine family, this UPS delivers true sine wave output with high input power factor correction, protecting sensitive networking gear, PoE switches, NVRs, and access control panels from utility sags, surges, and outages. The 3U form factor (12" height, 17.3" width) fits standard 19-inch racks while the 15kVA capacity supports mixed loads—IP cameras drawing through PoE injectors, storage arrays, and blade servers—without oversizing. When your security infrastructure depends on continuous recording and your access systems can't drop offline during brief utility events, the U15N32V bridges the gap until generators spin up or utility power stabilizes.

Key Features

• 15kVA Capacity for Mixed IT Loads: Supports up to 15,000VA of connected equipment—enough headroom for a 48-port PoE+ switch (740W), an NVR with 24 drives (600W), and ancillary network gear—while maintaining 80% load for optimal battery runtime and efficiency.
• SteadySine True Sine Wave Output: Pure sine wave topology eliminates harmonic distortion that degrades PoE injector efficiency and causes premature capacitor aging in switch power supplies, ensuring clean power for voltage-sensitive surveillance and access control hardware.
• 3U Rack-Mount Form Factor: Installs in standard 19-inch racks with 12-inch height (3U), leaving vertical space for additional UPS units, patch panels, or cable management—critical in edge sites and wiring closets where rack space is constrained.
• High Input Power Factor Correction: Unity or near-unity power factor reduces apparent power draw from upstream circuits, allowing you to load branch circuits closer to their rated ampacity without tripping breakers—important when retrofitting UPS into legacy electrical infrastructure.
• Data Center, Edge, and Enterprise MTDC Certified: Application-rated for the thermal and electrical environment of IT spaces, edge deployments, and modular data centers where ambient temperatures may exceed office norms and inrush currents from server PSUs demand robust input/output filtering.
• Hot-Swappable Battery Design (Typical of SteadySine Platform): Field-replaceable battery modules extend service life without taking the UPS offline, reducing MTTR when capacity tests indicate end-of-life and minimizing the maintenance window for 24/7 surveillance operations.
• SNMP/Network Monitoring Ready: Integrates with NMS platforms and building management systems via network card (often optional), enabling remote monitoring of load percentage, battery health, input voltage anomalies, and event logs—critical for distributed security installations managed from a central NOC.
• Overload and Short-Circuit Protection: Automatic load shedding and output isolation protect downstream equipment when a failed power supply or installer wiring error creates a fault condition, preventing cascade failures that take entire surveillance systems offline.
• Matches Liebert ITA and APC SURT Footprints: Competitive alternative to Liebert ITA 15 and APC Smart-UPS RT 15kVA models, offering similar capacity and form factor for integrators standardizing on Panduit's structured cabling and power distribution ecosystems.
• Extended Runtime Options via External Battery Cabinets: Accepts external battery packs to scale runtime from 5-10 minutes (internal batteries, typical) to 30+ minutes or hours, providing the buffer needed for generator startup in mission-critical environments or allowing graceful NVR shutdown during extended outages.

The U15N32V addresses the core challenge facing integrators deploying high-density PoE infrastructure: utility power is unreliable, and brief sags or momentary outages reboot switches, drop camera streams, and corrupt NVR recordings. In a 200-camera deployment pulling 12kW peak load through PoE switches, a 200ms sag can trigger a building-wide camera reboot, leaving a 60-second forensic gap and generating false motion alerts that overwhelm operators. The SteadySine platform holds the load through transients under 50ms and switches to battery within 2-4ms for longer events, fast enough that PoE devices never sense the interruption. The unity power factor correction matters when you're loading a 20A/208V branch circuit to 80% (3.3kW)—a UPS with 0.9 power factor would pull 3.7kVA apparent power and risk nuisance tripping, but the U15N32V's corrected input draws only real power, preserving your safety margin. The 3U height fits the sweet spot for edge installations: tall enough to house meaningful battery capacity (5-10 minutes at full load typical), short enough to coexist with patch panels and cable managers in a 12U wall-mount rack at a remote office or retail site.

From a deployment perspective, the U15N32V integrates naturally into Panduit's structured cabling and power ecosystems. Many integrators already standardize on Panduit fiber trays, copper patch panels, and cable management; adding SteadySine UPS units creates a single-vendor BOM for electrical and low-voltage, simplifying procurement and warranty coordination. The network monitoring capability (via optional SNMP card) feeds into the same NMS platforms that track switch uptime and camera availability, giving NOC engineers a unified dashboard: if the UPS transitions to battery, the alert lands in the same queue as a camera offline event, and historical logs correlate power anomalies with recording gaps. The hot-swappable battery design extends field service intervals—instead of scheduling a 4-hour maintenance window to swap the entire UPS, a technician slides out the depleted module and installs a fresh one in under 15 minutes while the load stays powered. That matters in 24/7 environments where even planned downtime requires coordination with security operations, facilities, and sometimes local AHJs if fire alarm or access control circuits are affected.

Runtime calculations for security loads are straightforward but often overlooked. A typical 48-port PoE+ switch (740W), a 24-drive NVR (600W), and an access control panel with 16 doors (200W) total 1,540W continuous load—about 10% of the U15N32V's 15kVA capacity. At that load level, internal batteries typically deliver 45-60 minutes of runtime, enough to ride through storm-related flickers and give generators time to stabilize. If the site lacks generator backup, extending runtime to 2-4 hours via external battery cabinets ensures recordings continue through regional outages and access control remains functional (critical for life safety if stairwell locks are電控 electric strikes). The overload protection prevents a common failure mode: an integrator accidentally double-feeds a circuit or a failed PoE injector shorts internally, pulling 200% rated current; the UPS detects the fault, isolates the output, and logs the event rather than overheating and taking the entire rack offline. The short-circuit isolation is especially valuable during installation and commissioning when wiring errors are most likely—better to trip the UPS breaker than energize a mis-landed conductor that arc-faults and burns insulation.

The U15N32V sits at the intersection of electrical reliability and IT infrastructure. It's sized for integrators who've outgrown 1500VA desktop towers (insufficient for a fully-loaded PoE switch) but don't need the 20-30kVA dual-feed redundant systems common in carrier-class data centers. It's specified for edge computing deployments where the "data center" is a 42U rack in a retail back room or a wall-mount cabinet at a branch office, and it's competitive against Liebert ITA and APC Smart-UPS models that have defined the category for 15 years. For security integrators, the value proposition is uptime without complexity: one power cord in, one set of outlets out, and enough intelligence to email you when the batteries need replacement but not so much configuration overhead that it requires a dedicated facilities engineer to commission.
