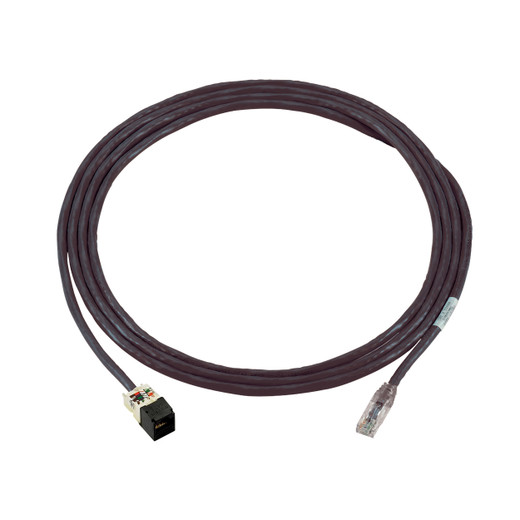

Panduit MA030 Smart Handle Harness for Cabinet Access Control
Overview
The Panduit MA030 is a dedicated extension harness for smart rack security handles — specifically designed to work with the ACF05 and ACF06 Smart Rack Handle assemblies. At 132 inches in overall length, it bridges the connection between your cabinet access control system and the rack door hardware without forcing awkward cable runs or tight bends that degrade signal integrity over time. If you're deploying Panduit rack security hardware across a data center or server room, this harness is the clean way to handle door interconnects at scale.
The MA030 carries RoHS and REACH compliance, which matters for enterprise procurement teams with environmental standards to meet. It ships as a single unit (carton quantity of 25 available for volume deployments), so you can spec it per cabinet or order in bulk for a full-room rollout.
Key Features
- 132-inch Cable Length: The extended reach gives integrators flexibility when routing through deep cabinets or when the handle assembly is mounted further from the access control module — eliminates the need for field-fabricated extensions that introduce failure points.
- Onboard RJ45 Female Coupler: Terminates in a standard RJ45 female port, so connecting to your access control infrastructure uses off-the-shelf patch cables rather than proprietary connectors. Straightforward to source replacements and simplifies troubleshooting.
- Quick-Disconnect Design: The quick-disconnect feature means door removal during maintenance or equipment swap doesn't require cutting or re-terminating cables. Disconnecting and reconnecting takes seconds — relevant in high-density environments where cabinets get serviced regularly.
- Optimized Cable Routing: The harness geometry is engineered for clean routing inside the cabinet door path, reducing the chance of pinched or kinked cable during door operation — a common failure mode with improvised wiring solutions.
- Optimized for Door Removal: Specifically designed to accommodate full door removal cycles without stressing the cable assembly, which extends service life compared to generic solutions that weren't built with repeated door-pull sequences in mind.
- RoHS and REACH Compliant: Meets both directives, supporting enterprise and government procurement requirements where environmental materials compliance is a documented gate — relevant for EU deployments and federal facilities with supply chain standards.
Integration & Compatibility
The MA030 is designed exclusively for use with the Panduit ACF05 and ACF06 Smart Rack Handle systems. It is not a universal harness — verify your handle model before ordering. The competitor cross-reference STOK-Q449-00-A01 indicates this harness addresses a specific form factor used across standardized cabinet access control deployments. For integrators building out multi-cabinet rows, the 25-unit carton quantity aligns with typical rack-room deployments and simplifies procurement. Pair this harness with a structured Panduit rack cabling system for a fully managed physical security infrastructure.
Frequently Asked Questions
Q: Which Panduit smart rack handles is the MA030 compatible with?
A: The MA030 is designed for use with the Panduit ACF05 and ACF06 Smart Rack Handle assemblies. It is not designed for other handle models.
Q: What is the overall cable length of the MA030?
A: The MA030 has an overall length of 132 inches, providing extended reach for flexible routing inside cabinet door assemblies.
Q: Does the MA030 support quick disconnection for door removal?
A: Yes. The MA030 features a quick-disconnect design specifically optimized for door removal, allowing the door to be fully detached without cutting or re-terminating the cable.
Q: What environmental compliance certifications does the MA030 carry?
A: The MA030 meets RoHS and REACH directives, supporting environmental compliance requirements for enterprise and EU deployments.
Q: What connector type does the MA030 terminate in?
A: The MA030 includes an onboard RJ45 female coupler, enabling connection to standard access control infrastructure using off-the-shelf patch cables.
Q: What is the package quantity and carton quantity for the MA030?
A: The MA030 ships as a single unit per package (package quantity: 1). Carton quantity is 25 units for volume orders.
The MA030 is one of those components that gets overlooked in a rack security BOM until someone's swapping a door in a live environment and realizes the harness doesn't reach or won't disconnect cleanly. At 132 inches, this harness gives you genuine routing flexibility across deep two-post or four-post configurations — and the quick-disconnect is what makes door removal a non-event rather than a cable management problem.
Technical Highlights:
- 132-inch Overall Length: Enough reach to route through cabinet door channels without pulling taut — typical rack door pivot geometry can stress shorter assemblies over hundreds of open/close cycles.
- Quick-Disconnect: Engineered for door removal sequences, not just a standard connector. Repeated detach/reattach cycles won't degrade the connection the way field-modified assemblies tend to over time.
- RJ45 Female Coupler: Standard termination means no proprietary patch cables to stock — any Cat5e/Cat6 patch works for the cabinet-to-controller run, which simplifies spares management across large deployments.
Deployment Considerations:
- The MA030 is ACF05/ACF06-specific — confirm your handle model before ordering. Using this harness with a non-compatible handle assembly will result in a non-functional connection and no clean return path once cables are dressed.
- RoHS and REACH compliance should be documented in your procurement records for any EU or federal facility deployment — the MA030 supports that audit trail, but verify your specific project's standards gate before finalizing the BOM.
For data center rows or server rooms standardized on Panduit ACF05 or ACF06 smart handles, the MA030 is the correct part for clean, serviceable door interconnects — particularly in environments where cabinets are accessed frequently and door removal needs to be fast and repeatable.
