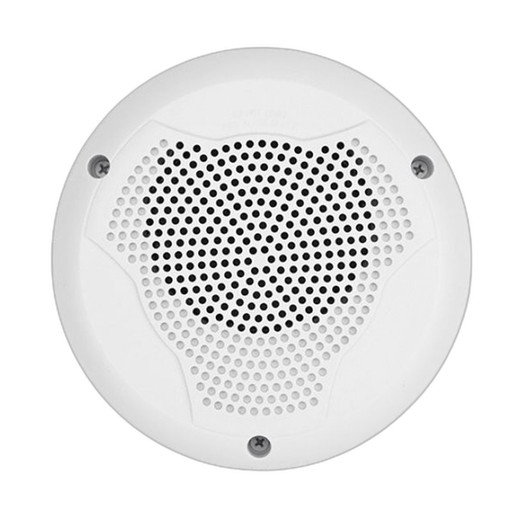

System Sensor SPCWK-R Wall-Mount Speaker
Overview
The SPCWK-R is a wall-mounted audible notification device from System Sensor's SpectrAlert Advance line, rated at 88+ dBA output in a reverberant room. It operates on either 12VDC or 24VDC (auto-selected at power-up), making it compatible with distributed fire alarm and emergency communication power supplies without manual jumpers or configuration. The white plastic housing and plug-in design minimize intrusion into standard electrical back boxes, cutting installation labor and reducing field ground-fault risk. Deploy this where you need localized high-intensity horn notification in corridors, stairwells, mechanical rooms, or building service zones integrated into a life-safety notification network.
Compatibility
The SPCWK-R integrates with System Sensor SpectrAlert Advance control panels and legacy SpectrAlert devices via standard dry-contact wiring. It works with any fire alarm or emergency notification system that supplies regulated 12VDC or 24VDC and expects a simple load contact. The universal mounting plate includes an onboard shorting spring for wiring continuity verification before device installation—a practical feature that eliminates post-installation faults. This device is compatible with any notification control system requiring a field-installable 88dB audible alert without advanced IP-based features.
Installation Notes

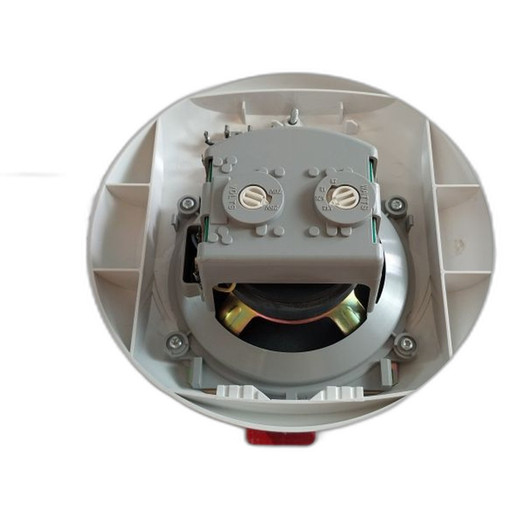

Plug-in architecture means no soldering or crimping inside the back box. Mount using the supplied universal plate on standard electrical boxes. The device supports field-selectable candela settings (15, 15/75, 30, 75, 95, 110, 115, 135, 150, 177, and 185 cd) via a rotary switch—useful when brightness requirements vary across zones in the same system. A tamper-resistant construction option is available. Confirm your power supply can deliver the full 12 or 24VDC at the device location before final installation; voltage sag under load will reduce horn output below rated 88dB.
What's in the Box
- SPCWK-R wall-mount horn device (white housing)
- Universal mounting plate with shorting spring
- Field-selectable rotary switch (pre-installed)
