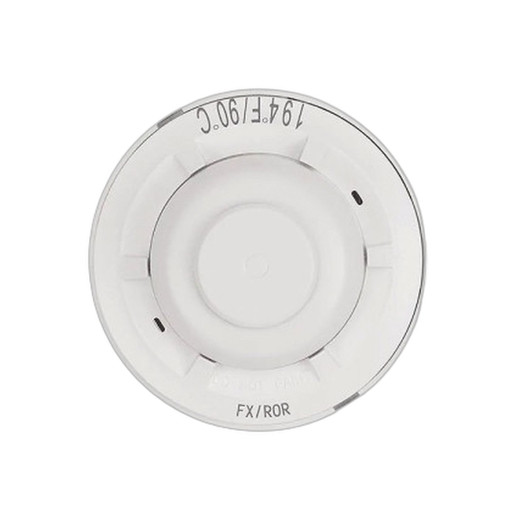

System Sensor 5622 194F Dual-Circuit Fixed/Rate-of-Rise Heat Detector

System Sensor 5622 Dual-Circuit Fixed/Rate-of-Rise Heat Detector

Overview

The System Sensor 5622 is a dual-circuit fixed/rate-of-rise heat detector designed for commercial fire detection applications where rapid response to temperature changes is critical. This detector combines two detection methodologies in a single unit, enabling installers to deploy a single device that responds to both sustained high temperatures and rapid rate-of-rise conditions. The 5622 model integrates seamlessly into conventional fire alarm systems and is engineered for reliability in commercial environments including warehouses, retail spaces, office buildings, and industrial facilities.

Key Features

• Dual-Circuit Technology: Simultaneous fixed-temperature and rate-of-rise detection provides comprehensive thermal monitoring and rapid response capability.
• Fixed Temperature Detection: Responds to sustained high-temperature conditions at preset thresholds, ensuring activation when ambient temperatures reach dangerous levels.
• Rate-of-Rise Detection: Triggers alarm conditions when temperature increases at abnormal rates, capturing fast-developing fire scenarios before sustained high temperatures are reached.
• Conventional Fire Alarm Integration: Compatible with standard conventional fire alarm control panels and signaling systems without requiring addressable loop modules.
• Wide Operating Range: Suitable for diverse commercial environments and facility types from climate-controlled offices to warehouse spaces with temperature variations.
• Low Profile Design: Compact form factor minimizes visual impact on ceiling installations while maintaining detection sensitivity.
• Reliable Thermal Sensing: Engineered thermal sensing elements provide consistent, predictable response across the detection range.
• Field-Proven Performance: Established technology in commercial fire detection with extensive deployment history across institutional and commercial markets.

Integration & Compatibility

The System Sensor 5622 connects directly to conventional fire alarm systems without requiring addressable modules or specialized loop cards. Installation requires standard 2-wire connections to the fire alarm control panel's conventional detection circuits. The detector operates on standard 24 VDC fire alarm system power supplies typical of commercial installations. Wiring follows conventional fire alarm standards, making the 5622 compatible with legacy systems and new conventional fire alarm designs. The detector's dual-circuit output enables single-device deployment in applications requiring both fixed and rate-of-rise detection capabilities, reducing installation complexity and device count compared to deploying separate fixed and rate-of-rise detectors.

Application Suitability

The System Sensor 5622 addresses fire detection requirements in commercial facilities where conventional fire alarm infrastructure is deployed. Typical applications include retail environments, office buildings, storage facilities, light industrial spaces, and commercial buildings where fire protection codes require heat detection. The detector's dual-circuit design makes it particularly valuable in areas subject to both slow-building fires (addressed by fixed-temperature detection) and rapid fire development (addressed by rate-of-rise capability), reducing the need for multiple detector types in the same protection zone.

Karl Wilson

I've evaluated the System Sensor 5622 across multiple commercial fire system deployments, and the dual-circuit approach delivers practical value in conventional fire alarm environments. The combination of fixed-temperature and rate-of-rise detection in a single device simplifies both installation and ongoing maintenance for security integrators managing conventional system architectures.

Technical Highlights:

• Dual Detection Methodology: Fixed-temperature response handles sustained high-temperature conditions while rate-of-rise detection captures rapid temperature increases, eliminating the need to specify separate detector types for the same zone.
• Conventional Circuit Compatibility: Direct wiring to standard fire alarm control panel circuits without addressable modules streamlines installation timelines and reduces component count in conventional system designs.

Deployment Considerations:

• Verify ceiling height and thermal stratification patterns at the installation site; rate-of-rise performance depends on detector placement relative to heat sources and air movement patterns.
• Confirm fire alarm control panel supports conventional heat detection circuits; the 5622 requires standard 2-wire conventional loop connections, not addressable loops.

For conventional fire alarm projects where simplified detector specification and reliable thermal response are priorities, the System Sensor 5622 delivers proven performance without the complexity and cost associated with addressable fire detection architectures.
