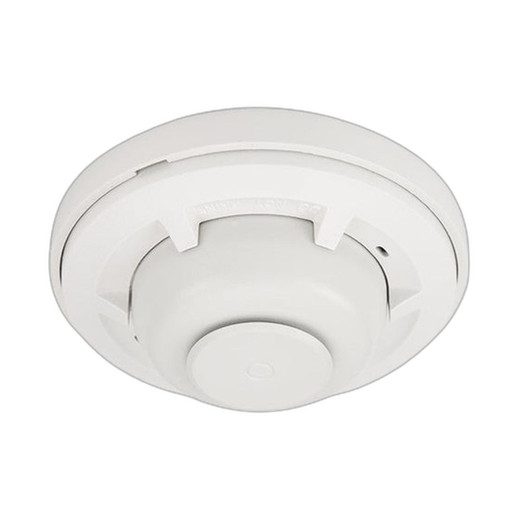

System Sensor 5604 194F Fixed Temperature Mechanical Heat Detector

System Sensor 5604 Fixed Temperature Mechanical Heat Detector

Overview

The System Sensor 5604 is a fixed temperature mechanical heat detector designed for fire detection and alarm system integration. Operating at a fixed activation temperature of 194°F, the 5604 provides reliable thermal detection without requiring power or communication wiring, making it suitable for applications where conventional addressable detectors may not be practical or cost-effective. This mechanical-based design ensures consistent performance and simplified installation across residential, commercial, and industrial fire safety systems.

Key Features

• Fixed Temperature Operation: Activates reliably at 194°F, providing consistent thermal threshold detection
• Mechanical Design: No power supply or communication protocols required; operates purely on thermal expansion principles
• Conventional Wiring: Compatible with standard 2-wire fire alarm circuits, simplifying integration into existing systems
• Compact Profile: Low-profile form factor suitable for ceiling or wall mounting in various facility types
• Durability: Solid-state thermal sensing mechanism provides long-term reliability without moving parts prone to failure
• Cost-Effective: Economical detection option for zones where addressable technology is unnecessary or cost-prohibitive
• Fire Code Compliance: Meets applicable fire detection standards for thermal sensing applications
• Wide Mounting Compatibility: Installs on standard fire alarm system bases and brackets

Integration & Compatibility

The System Sensor 5604 integrates with conventional fire alarm control panels and initiating device circuits (IDCs) that support 2-wire heat detector configurations. Installation does not require network communication protocols or addressable system infrastructure, reducing circuit complexity and associated hardware costs. The detector functions as a passive thermal sensor on standard supervised alarm loops, making it ideal for retrofit applications, small facility coverage, or supplemental detection in larger systems where zoning economics favor conventional devices.

Deployment Considerations

The 194°F activation threshold is appropriate for general-purpose fire detection in office spaces, retail environments, storage areas, and utility zones. The mechanical design eliminates concerns related to power distribution or communication network dependencies, simplifying maintenance and troubleshooting. Standard fire alarm loop supervision and integrity testing apply. The 5604 should be positioned away from known heat sources such as HVAC vents, heating equipment, or direct sunlight to prevent nuisance alarms while maintaining effective coverage of the protected area.

Marty Allison

The System Sensor 5604 represents a straightforward, cost-conscious approach to thermal fire detection. In planning conventional fire alarm systems—particularly for smaller facilities or supplemental detection zones—the 5604 delivers reliable performance without the complexity of addressable infrastructure. We frequently specify mechanical heat detectors like the 5604 in applications where detection coverage requirements don't justify the expense of smart, networked devices.

Technical Highlights:

• Fixed Thermal Threshold: 194°F activation ensures consistent detection across the sensor's operational range, with no configuration or calibration required
• Mechanical Reliability: The absence of electronics means no power dependency, no communication protocols to troubleshoot, and predictable long-term performance

Deployment Considerations:

• The 5604 operates on conventional 2-wire loops; confirm your fire panel supports heat detector circuits and verify loop supervision parameters match the detector's specifications
• Proper spacing and placement are critical—heat detectors require unobstructed air circulation around the sensing element, so avoid installation directly above enclosed equipment or in dead-air pockets

For facilities standardizing on conventional detection, the System Sensor 5604 provides a proven, maintainable solution. Its simplicity and reliability make it particularly valuable in environments where system downtime for addressable device reprogramming or network diagnostics poses operational risk.
