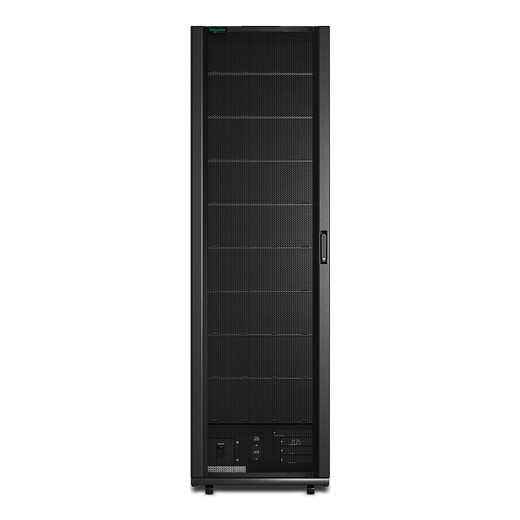

APC by Schneider Electric Symmetra PX96 160 Battery Frame FOR9BAT - SYCFXR9

APC by Schneider Electric SYCFXR9 Symmetra PX Battery Frame

Overview

The SYCFXR9 is a 42U battery frame designed for use with the APC Symmetra PX 96/160 UPS platform, providing structured battery expansion in high-availability power architectures. Built to house nine battery modules in a sealed lead acid (VRLA) configuration, this frame integrates directly into the Symmetra PX infrastructure stack — no separate battery enclosures, no improvised racking. It ships in black to match standard data center and equipment room aesthetics and occupies a full 42U footprint, so plan accordingly when laying out your floor space.

The SYCFXR9 carries a gross shipping weight of 379 kg, which means site logistics require a loading dock, pallet jack, and coordinated delivery — factor that into your installation schedule before the unit arrives. Operating range spans 0–40°C with 0–95% relative humidity (non-condensing), consistent with standard raised-floor and hot-aisle/cold-aisle data center environments. Storage tolerances extend the low end to -15°C, relevant if the unit will sit in an unheated warehouse before installation.

Certifications include CE, EN/IEC 62040-1-1, EN/IEC 62040-2, and EN/IEC 62040-3 — the core IEC standards covering UPS safety, electromagnetic compatibility, and performance classification. For deployments in regulated facilities or those requiring documented compliance, these marks satisfy the most common European and internationally harmonized requirements. If your project has a specific NEC, UL, or North American certification requirement, verify with APC documentation before specifying this frame, as the listed certifications are IEC/CE-based.

As a battery expansion component within the broader APC Symmetra PX line, the SYCFXR9 is not a standalone UPS — it requires the corresponding Symmetra PX 96 or 160 base system and compatible battery modules. Consult the Symmetra PX system architecture documentation to confirm module compatibility and runtime calculations before ordering. For complementary power distribution and switching infrastructure, plan your full rack layout alongside this frame to avoid ceiling height or floor load conflicts.

Key Features

• VRLA Battery Technology: Sealed lead acid chemistry requires no water maintenance and can be mounted in any orientation — reduces service overhead in staffed-light facilities.
• 42U Form Factor: Full-rack height frame integrates flush into standard 42U data center enclosures; no partial-U gaps or custom brackets needed.
• 0–40°C Operating Range: Covers all standard indoor equipment room conditions; no supplemental cooling required beyond what a normal data center provides.
• 379 kg Shipping Weight: Plan for heavy-equipment delivery logistics — raised-floor load ratings and floor reinforcement should be confirmed before installation.
• IEC Certified (CE, EN/IEC 62040-series): Meets UPS safety, EMC, and performance standards — simplifies compliance documentation for regulated or enterprise environments.

Frequently Asked Questions

Q: What UPS systems is the SYCFXR9 compatible with?

A: The SYCFXR9 is designed for the APC Symmetra PX 96 and 160 UPS platforms. It is not a standalone UPS — it requires the corresponding base system and compatible battery modules. Verify compatibility with APC system documentation before ordering.

Q: What battery technology does the SYCFXR9 use?

A: The SYCFXR9 uses sealed lead acid (VRLA) battery technology. VRLA batteries are maintenance-free and do not require water refilling, which reduces ongoing service requirements.

Q: What are the operating environment requirements for the SYCFXR9?

A: The SYCFXR9 operates at 0–40°C and 0–95% relative humidity (non-condensing), at altitudes up to 999.9 meters. These parameters are consistent with standard indoor data center and equipment room environments.

Q: What certifications does the SYCFXR9 hold?

A: The SYCFXR9 is CE certified and meets EN/IEC 62040-1-1, EN/IEC 62040-2, and EN/IEC 62040-3 standards, covering UPS safety, EMC, and performance classification.

Q: How much does the SYCFXR9 weigh?

A: The package weight is 379 kg. Heavy-equipment delivery logistics, including loading dock access and floor load verification, should be confirmed before scheduling delivery and installation.

Marty Allison

The SYCFXR9 is a battery expansion frame, not a UPS — and that distinction matters at the planning stage. At 379 kg gross shipping weight, this unit demands serious pre-installation logistics: confirmed floor load ratings, dock access, and a lift plan before it rolls off the truck. If you are specifying the Symmetra PX 96 or 160 for a new build or a runtime expansion, the SYCFXR9 slots into the system architecture as the nine-module battery carrier that gives the platform its sustained runtime capacity.

Technical Highlights:

• VRLA (Sealed Lead Acid) Chemistry: Maintenance-free battery technology — no electrolyte checks, no topping off, serviceable in sealed equipment rooms without special ventilation beyond standard data center provisions.
• IEC 62040-series Certification: Covers safety (62040-1-1), EMC (62040-2), and performance (62040-3) — three separate compliance dimensions in one frame, which simplifies documentation packages for enterprise or regulated-site procurement.
• 0–40°C Operating Envelope: Aligns with ASHRAE A1/A2 data center thermal classes; no derating or supplemental cooling required in standard raised-floor environments.

Deployment Considerations:

• The SYCFXR9 is a component, not a system — it has no standalone function without the Symmetra PX base unit and compatible battery modules. Confirm the complete BOM with APC before finalizing your order.
• At altitudes above 1,000 meters, operating parameters are no longer covered by the verified specification — derate calculations or APC engineering consultation are required for high-altitude sites.

This frame is the right specification for enterprise data centers and co-location facilities expanding runtime on an existing Symmetra PX 96/160 deployment, where documented IEC compliance and maintainability in a sealed environment are non-negotiable.
