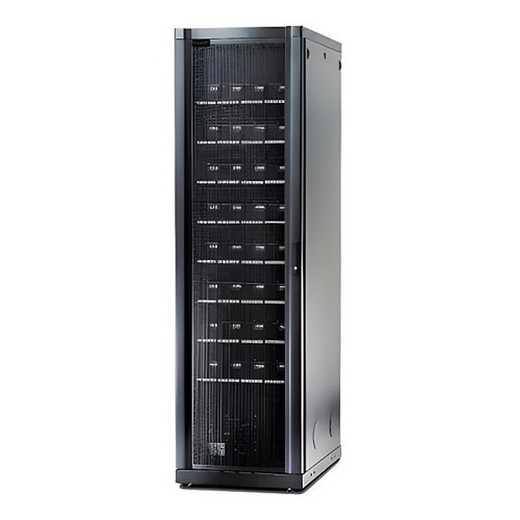

APC by Schneider Electric Symmetra PX Extended RUN Premium Battery Cabinet ( External ) - SYCFXR8

APC by Schneider Electric SYCFXR8 Symmetra PX Extended Run Premium Battery Cabinet

Overview

The SYCFXR8 is an external battery cabinet engineered to extend the runtime of APC Symmetra PX three-phase UPS systems in mission-critical environments — data centers, large server rooms, and industrial power conditioning installations where a brief bridge to generator transfer is not enough. This enclosed cabinet ships with 8 VRLA battery modules sourced from Panasonic and pre-installed at 0 empty slots, delivering a 192V DC string built around 32 battery blocks per string. If your facility runs 208V three-phase input and needs predictable, chemistry-stable extended runtime without field-sourcing batteries from a third party, the SYCFXR8 eliminates that variable at the point of procurement.

At 2,171.56 lb (985 kg) fully loaded and standing 81.5 inches (207 cm) tall, this is a permanent infrastructure commitment — not a device you reposition after installation. Plan your floor loading, seismic anchoring, and clearance requirements before the cabinet arrives. The hard-wire 4-wire input (3PH + G) is a single-connector design, which simplifies the panel connection but requires a licensed electrician and coordinated conduit routing during commissioning.

Key Features

• 8 Panasonic VRLA Modules, 0 Empty Slots: The cabinet arrives fully populated with all 8 battery modules — no staged procurement, no field installation of chemistry-matched batteries required. VRLA (valve-regulated lead-acid) chemistry is maintenance-free under normal operating conditions, eliminating the electrolyte checks associated with flooded-cell alternatives. For facilities with limited in-house battery expertise, this matters operationally.
• 192V Battery String, 32 Blocks per String: The 192V architecture is sized to pair with high-capacity Symmetra PX frames. More battery voltage at the string level means the inverter draws lower current for a given power output, which translates to reduced I²R losses in the battery cabling and marginally longer runtime per kilowatt-hour stored. This is the physics reason APC designs extended-run cabinets around high-voltage strings rather than paralleling low-voltage banks.
• 208V 3-Phase Input, 50/60 Hz Auto-Sensing: The input auto-detects line frequency between 50 and 60 Hz (±5 Hz), making the cabinet compatible with both North American 60 Hz grids and international 50 Hz installations without jumper or configuration changes. The single hard-wire 4-wire (3PH + G) input connection keeps the panel interface clean — one conduit entry, one termination point.
• Enclosed Battery Cabinet Form Factor: The fully enclosed steel enclosure protects battery modules from incidental contact and airborne particulate — relevant in raised-floor data centers where airflow management stirs fine debris. It also presents a professional appearance in co-location and enterprise machine rooms where open battery racks are considered a housekeeping liability.
• Operating Environment: 0–3,333 ft Altitude, 0–95% Relative Humidity: The altitude ceiling of 3,333 ft covers the vast majority of U.S. and European data center locations without derating. The 0–95% RH operating range is standard for sealed lead-acid — but note this does not mean condensing humidity is acceptable. Humidity management at the room level remains the integrator's responsibility.
• Storage Temperature Range -15 to 45°C (5 to 113°F): If the cabinet will sit in a staging warehouse before installation — common on large capital projects where procurement leads construction — the wide storage temperature band gives you flexibility. VRLA batteries stored at the low end of this range will experience reduced self-discharge, extending shelf life before commissioning.
• Eurobat General Purpose Certification: The Eurobat certification confirms the battery modules meet the general-purpose VRLA standard recognized by European grid operators and facility compliance teams. For international deployments or multi-national enterprise rollouts requiring documented battery certification, this is the credential to reference in your commissioning package.
• Black Finish, Enclosed Design: The black enclosure matches the standard Symmetra PX frame aesthetics — relevant for co-location facilities and enterprise data centers where equipment appearance is part of customer-facing SLA documentation.

Integration and Compatibility

The SYCFXR8 is designed as an external extended-run cabinet for the APC by Schneider Electric Symmetra PX three-phase UPS platform. It connects to the UPS frame via a single battery cable (1 cable included per the spec) rather than integrating into the UPS cabinet's internal bus — confirm your Symmetra PX frame's external battery port configuration and cable routing requirements before finalizing the installation layout. This cabinet does not function as a standalone UPS; it requires a compatible Symmetra PX host frame to provide the inverter, bypass, and management intelligence.

For facilities planning a full UPS and battery infrastructure build-out, consider the physical adjacency of this cabinet to the UPS frame — the battery cable length is fixed, so cabinet placement relative to the UPS is a hard constraint, not a preference. Review your data center power planning layout early to avoid conduit rerouting costs during installation.

If your application involves shorter runtime requirements or a smaller UPS footprint, review the broader APC battery module and cabinet line — the SYCFXR8 is the premium extended-run option and may exceed the runtime and budget requirements of smaller three-phase UPS deployments. For installations requiring power distribution coordination upstream of the UPS, engage your electrical contractor early given the 208V 3-phase hard-wire input requirements.

Frequently Asked Questions

Q: What battery chemistry does the SYCFXR8 use, and does it require maintenance?

A: The SYCFXR8 uses VRLA (valve-regulated lead-acid) batteries manufactured by Panasonic. VRLA chemistry is sealed and maintenance-free under normal operating conditions — no electrolyte checks or water additions are required, unlike flooded-cell batteries.

Q: How many battery modules come pre-installed in the SYCFXR8?

A: The SYCFXR8 ships with 8 battery modules fully installed and 0 empty slots — the cabinet arrives completely populated with no field battery installation required.

Q: What is the input power requirement for the SYCFXR8?

A: The SYCFXR8 requires a 208V three-phase input via a single hard-wire 4-wire connection (3PH + G). It auto-senses line frequency between 50 and 60 Hz (±5 Hz), so it operates on both North American and international grids without configuration changes.

Q: What UPS platform does the SYCFXR8 pair with?

A: The SYCFXR8 is an external extended-run battery cabinet designed for the APC Symmetra PX three-phase UPS platform. It does not function as a standalone UPS and requires a compatible Symmetra PX host frame.

Q: What are the physical installation requirements for the SYCFXR8?

A: The SYCFXR8 stands 81.5 inches (207 cm) tall and weighs 2,171.56 lb (985 kg) fully loaded. Plan for adequate floor load capacity, seismic anchoring per local code, and electrical conduit routing by a licensed electrician before delivery. The cabinet connects to the UPS via a single included battery cable — confirm cable length and routing against your floor plan before finalizing placement.

Q: What certification does the SYCFXR8 carry for the battery modules?

A: The SYCFXR8 holds Eurobat General Purpose certification, which is recognized by European grid operators and relevant for international deployments or compliance documentation in multi-national enterprise environments.

Jerry Tildsen

The SYCFXR8 is one of those infrastructure line items that buyers underestimate until they're mid-project and realize a 2,171 lb cabinet requires a structural engineering review of the raised floor — not just a forklift and a spot on the floor plan. What I tell integrators speccing this for a Symmetra PX deployment: the 192V, 32-block-per-string architecture is the reason this cabinet delivers meaningful extended runtime, and it's also the reason you treat it as a permanent installation rather than a flexible one.

Technical Highlights:

• Panasonic VRLA, 0 Empty Slots: Arriving fully populated with 8 modules eliminates the field-battery-sourcing problem on large jobs where procurement lead times on matched chemistry can delay commissioning by weeks.
• 50/60 Hz Auto-Sensing Input: For multi-national enterprise accounts deploying the same Symmetra PX platform across North American and European sites, the auto-sensing input means the SYCFXR8 spec is the same line item across regions — no country-specific SKU required.
• 192V String Voltage: Higher string voltage at the DC bus means lower current draw for a given load — reduced cable heating, reduced I²R losses, and marginally better runtime efficiency compared to lower-voltage parallel battery architectures.

Deployment Considerations:

• At 985 kg, floor loading is a hard constraint. Raised-floor data centers with standard 2,000 lb/tile ratings may require direct-to-slab placement or structural reinforcement — verify with your facilities team before the cabinet ships, not after.
• The single hard-wire 4-wire (3PH + G) input means no plug-and-play commissioning. Budget for licensed electrical work and confirm conduit routing relative to the UPS frame placement, since the single battery cable has a fixed length that constrains cabinet positioning.

The SYCFXR8 is the right call for large Symmetra PX installations where generator transfer time exceeds what internal UPS batteries can bridge — enterprise co-location, hospital data centers, and large industrial control rooms with 208V three-phase infrastructure already in place.
