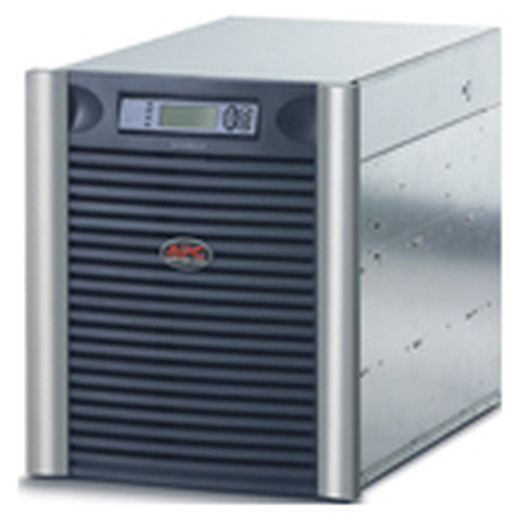

APC by Schneider Electric SYA4K8RMP Power Array

Overview

The APC by Schneider Electric SYA4K8RMP is a 4kVA/3200W rack-mountable Power Array designed to deliver clean, consistent, and reliable power to critical IT infrastructure. Its online double-conversion topology ensures that connected equipment is protected from surges, sags, and noise, providing a stable power source essential for sensitive electronics like servers, network switches, and surveillance systems. This unit is suitable for deployment in data centers and network closets where uninterrupted operation is paramount.

Compatibility

This unit is designed as a modular component within the APC Symmetra LX Power Array system. It is compatible with other Symmetra LX chassis and battery modules (SYBT5) to scale power and runtime. It interfaces with management systems via its Smart-Slot and DB-9 RS-232 port. It is intended to supplement existing APC Symmetra LX power configurations rather than operate as a standalone UPS for typical IT equipment.

Installation Notes

Installation requires a 120/208V 2-phase (2PH+N+G) 4-wire input connection, with specific output connections including 2x NEMA L14-30R and 4x NEMA L5-20R. The operating temperature range is 0-40 °C, with a storage range of -15-45 °C. Relative humidity can range from 0-95% non-condensing for both operation and storage. Battery recharge time is approximately 3 hours. The unit features hot-swap battery capability for continuous power during battery replacement.
