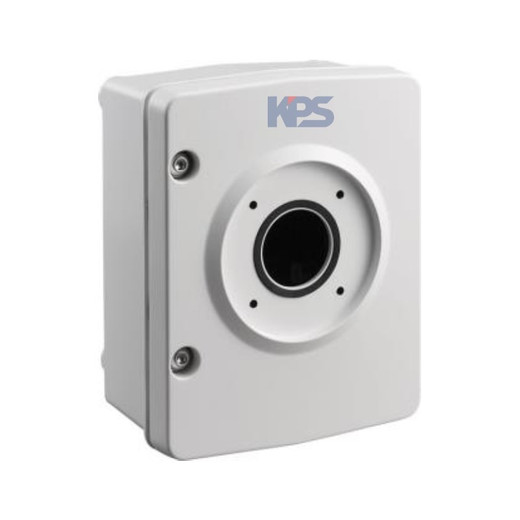

Bosch SURVEILLANCE CABINET 230VAC - NBA-7070-PA2

Bosch NBA-7070-PA2 Outdoor Surveillance Power Cabinet

Overview

The Bosch NBA-7070-PA2 is a hardened outdoor power enclosure built to house and protect surveillance system electronics in the field — particularly in applications where weather, vandalism, salt air, and extreme temperature swings would kill a standard enclosure. At its core it delivers 230 VAC mains input and steps it down to 24 VAC at 4 A (96 VA) for powering connected security devices, while sealing everything inside a steel-and-aluminum shell rated IP66, IK10, and ISO 14933 salt mist. If you're installing cameras or access control hardware in coastal sites, transportation infrastructure, or industrial yards where NEMA TS2 shock and vibration specs matter, the NBA-7070-PA2 is purpose-built for exactly those environments.

The cabinet measures 216.40 mm × 170 mm × 121 mm (8.52 in × 6.69 in × 4.76 in) and weighs 4.11 kg (9.06 lb) — compact enough for pole or wall mounting without requiring heavy structural support, yet substantial enough in its RAL 9003 signal-white steel housing to survive real-world punishment. This is not a plastic utility box repurposed for outdoor use; it is a specification-grade enclosure designed with surveillance deployment constraints in mind. For a broader look at supporting infrastructure, explore network video recorders and surveillance power supplies that pair with field enclosures like this one.

Key Features

• 24 VAC / 96 VA Regulated Output: The NBA-7070-PA2 delivers 24 V AC at up to 4 A — enough to drive multiple 24 VAC PTZ cameras or access control panels from a single cabinet. Stepping down from 230 VAC mains means you can run low-voltage device cabling from the enclosure rather than pulling full mains to each device, which simplifies permitting and reduces cabling cost on multi-camera poles.
• IP66 Environmental Seal: IP66 means sustained high-pressure water jets and total dust exclusion. Rain, pressure washing, and dust storms will not breach the enclosure. Note that IP66 does not cover submersion — if your installation is subject to flooding, you need IP67 or higher. For the vast majority of surface-mounted outdoor deployments, IP66 is the correct spec.
• IK10 Vandal Resistance: IK10 is the highest standardized impact rating, representing 20 joules of impact energy — equivalent to a 5 kg mass dropped from 400 mm. In transportation hubs, parking structures, or any site where deliberate physical attack on infrastructure is a realistic threat, IK10 is the rating to specify. Enclosures rated IK08 or lower will not meet this bar.
• -60 °C to +55 °C Operating Range: An operating temperature floor of -60 °C (-76 °F) is exceptional and covers the most severe cold-weather environments — Arctic logistics, mountain transportation, northern industrial sites — without requiring supplemental heating. The 55 °C ceiling handles direct-sun summer exposure at most latitudes without thermal cutout.
• Surge Protection — 21.4 A / 1500 W Peak: The built-in surge protection handles 21.4 A peak current and 1,500 W peak power (10/1000 µs waveform). On sites with frequent electrical storms or grid instability — common in outdoor utility and transportation deployments — this protects downstream cameras and controllers that have no surge tolerance of their own.
• ISO 14933 Salt Mist Rating: Salt mist certification means the cabinet has been tested for corrosion resistance under salt spray conditions. Coastal installations, marine terminals, waterfront infrastructure, and any site within a few miles of the ocean will degrade unrated enclosures through oxidation within months. The ISO 14933 rating documents that this cabinet is engineered and tested for those environments.
• NEMA TS2 Shock and Vibration: NEMA TS2 is the standard for traffic control and transportation electronics — it defines shock and vibration profiles for pole-mounted and roadside equipment. Specifying NEMA TS2-compliant enclosures on highway, intersection, or transit deployments protects against contract non-compliance and ensures the hardware survives the mechanical environment.
• 50/60 Hz Dual-Frequency Input: The cabinet accepts both 50 Hz and 60 Hz mains, making it deployable across North American (60 Hz) and international (50 Hz) electrical infrastructure without modification. For integrators with multi-region or export project portfolios, this eliminates a separate SKU requirement.
• Steel, Aluminum, and Polypropylene Construction: The mixed-material build — steel structure, aluminum components, polypropylene insulating elements — balances structural rigidity with corrosion resistance and electrical isolation. RAL 9003 signal white is a standard color in traffic and infrastructure installations, easing visual integration on road-side or public-space mounting.
• 0%–100% Relative Humidity Tolerance: Full humidity range means condensation, tropical environments, and pressure-washed enclosures are within spec. Combined with IP66 sealing, the NBA-7070-PA2 does not need supplemental desiccants or humidity management for outdoor installation.

Integration and Compatibility

The NBA-7070-PA2 outputs 24 VAC at up to 4 A, which is the standard supply voltage for a wide range of PTZ cameras, fixed cameras with 24 VAC power input, electromechanical access control hardware, and intercom equipment. Any 24 VAC-compatible device drawing within the 96 VA total output budget can be powered from this enclosure. The 230 VAC input requires appropriately rated mains wiring and circuit protection per local electrical code. For deployments pairing this cabinet with Bosch security cameras or other outdoor IP cameras requiring local 24 VAC, the cabinet consolidates power distribution at the mounting point. Integrators planning multi-camera poles should consult a PoE and power planning guide to determine whether 24 VAC distribution or PoE switching better fits their cable run topology. When hardwired camera installations on poles or walls call for a discreet, weather-sealed power breakout, this enclosure is a natural complement to any camera mount and bracket stack.

Frequently Asked Questions

Q: What output voltage and current does the NBA-7070-PA2 provide?

A: The NBA-7070-PA2 outputs 24 VAC at up to 4 A, for a total output rating of 96 VA. It accepts 230 VAC input at 0.42 A and is compatible with both 50 Hz and 60 Hz mains.

Q: Is the NBA-7070-PA2 suitable for coastal or marine installations?

A: Yes. The cabinet carries an ISO 14933 salt mist rating, which documents tested corrosion resistance under salt spray conditions. Combined with IP66 sealing and the steel-aluminum-polypropylene construction, it is specified for coastal, waterfront, and marine terminal deployments.

Q: What is the operating temperature range of the NBA-7070-PA2?

A: The operating temperature range is -60 °C to +55 °C (-76 °F to +131 °F). The -60 °C floor covers Arctic and severe cold-weather environments without supplemental heating, and the +55 °C ceiling accommodates direct-sun outdoor exposure in hot climates.

Q: Does the NBA-7070-PA2 include surge protection?

A: Yes. The cabinet includes built-in surge protection rated at 21.4 A peak current and 1,500 W peak power (10/1000 µs waveform), protecting connected downstream devices from transient electrical surges.

Q: Is the NBA-7070-PA2 rated for transportation or roadside deployments?

A: Yes. The cabinet meets NEMA TS2 shock and vibration ratings, which is the standard applied to traffic control and roadside electronics. It is an appropriate specification for highway, intersection, and transit pole-mounted installations.

Q: What is the vandal resistance rating on the NBA-7070-PA2?

A: The cabinet is rated IK10, the highest standardized impact rating, representing 20 joules of impact resistance. This is appropriate for public-facing or high-risk-of-physical-tampering locations such as transit hubs and parking structures.

Jerry Tildsen

When I look at the NBA-7070-PA2, the specification that stands out immediately is the -60 °C lower temperature limit. Most outdoor enclosures I see are rated to -40 °C, which is already adequate for the lower 48 states and most of Europe — but northern Canada, Alaska, Scandinavia, and high-altitude mountain installations routinely see colder ambient temperatures during startup conditions. An extra 20 degrees of cold-temperature margin on the NBA-7070-PA2 is not a marketing number; it means the enclosure and its contents will not experience cold-cracking or contraction-seal failures in environments where lesser enclosures fail within the first winter.

Technical Highlights:

• IP66 + IK10 combined: It's common to see enclosures rated for one or the other — IP66 sealing alone, or mechanical IK ratings on vandal-resistant housings. Getting both on a 96 VA power cabinet means you don't have to choose between water protection and physical attack resistance. On transportation and public-infrastructure sites where both are realistic threats, this combination is the right starting point.
• 96 VA / 24 VAC output: The 4 A at 24 VAC output budget is meaningful — at 24 VAC, that's enough for a pair of mid-draw PTZ cameras with margin remaining. The 21.4 A / 1,500 W surge protection on the output side means a lightning-induced transient on the device side won't propagate back into the enclosure electronics or the mains feed.
• ISO 14933 salt mist certification: This is a genuine differentiator for coastal and industrial deployments. Unrated steel enclosures at marine terminals and port facilities typically show measurable oxidation within 12–18 months. The ISO 14933 rating documents that Bosch has tested this unit to a defined corrosion standard — not just coated it and called it outdoor-rated.

Deployment Considerations:

• The 230 VAC input is a European/international standard voltage. Verify mains supply voltage at your installation site before ordering — this unit is NOT a 120 VAC North American mains input device. For North American 120 VAC deployments, a different SKU is required.
• At 9.06 lb (4.11 kg), the cabinet has real mass for its size (8.52 in × 6.69 in × 4.76 in). Pole and wall mounting hardware needs to be specified accordingly, particularly in NEMA TS2 vibration environments where fastener torque and mount rigidity matter for long-term field retention.

The NBA-7070-PA2 is the right specification for coastal highway surveillance poles, maritime port perimeter camera installations, and northern-climate transportation infrastructure sites — anywhere the combination of salt air, extreme cold, physical tamper risk, and 230 VAC mains availability defines the deployment constraint set.
