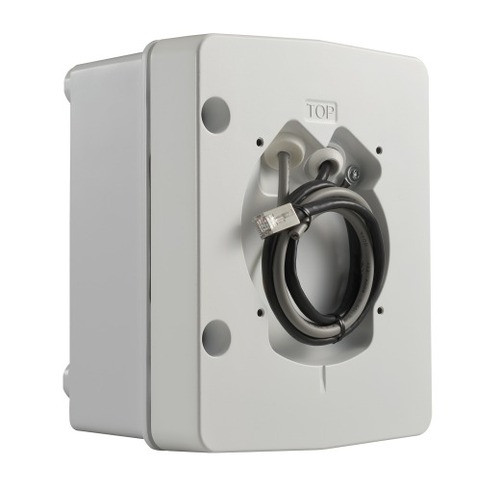

Bosch SURVEILLANCE CABINET 120VAC - NBA-7070-PA1

Bosch NBA-7070-PA1 Outdoor Surveillance Power Cabinet

Overview

The Bosch NBA-7070-PA1 is a hardened outdoor surveillance cabinet designed to house and protect 24 VAC power distribution hardware in deployments where weather, vandalism, and extreme temperatures are genuine engineering concerns. Drawing 120 VAC input at 0.8 A and delivering a regulated 24 VAC output at up to 4 A (96 VA rated), this steel-and-aluminum enclosure is built to the same environmental standards you'd specify for a traffic cabinet — IP66 sealing, IK10 impact resistance, and NEMA TS2 shock and vibration compliance. If you're speccing power infrastructure for outdoor cameras, intercoms, or access readers in a location where the enclosure itself is exposed to the elements, the NBA-7070-PA1 (often searched as NBA 7070 PA1) belongs on your short list.

Key Features

• 24 VAC / 96 VA Output: The 4 A at 24 VAC output rating gives you clean power headroom for multiple cameras or a camera-plus-reader combination on a single run. At 96 VA total capacity, you can budget approximately 3–4 typical 24 VAC PTZ cameras or 6–8 fixed-lens cameras without approaching the ceiling — relevant when you're consolidating field runs to reduce conduit.
• 120 VAC Input at 0.8 A Draw: The unit pulls less than a single amp from your branch circuit, so it drops neatly onto a standard 15 A or 20 A circuit alongside other field devices. No dedicated circuit needed in most installations, which simplifies the electrical scope.
• IP66 Environmental Rating: The enclosure is fully sealed against dust ingress and resists powerful water jets from any direction — meaning rain, hose-down cleaning, and car-wash-style pressure isn't a concern. Do not confuse with IP67 (submersion-rated); this unit is not designed for standing-water or flood-prone installations.
• IK10 Vandal Rating: IK10 is the highest impact protection classification in the IEC 62262 series, meaning the enclosure withstands a 20-joule impact — equivalent to a 5 kg mass dropped from 400 mm. In parking structures, transit hubs, or any location where physical tampering is a documented risk, this matters more than the IP rating.
• -76°F to 131°F Operating Range: The -60°C to 55°C (-76°F to 131°F) thermal envelope covers virtually every above-ground outdoor deployment in North America, including unheated northern equipment rooms in winter and rooftop installations in the Southwest summer. Very few competitive enclosures specify down to -60°C without a heater accessory.
• 1,500 W Surge Protection (21.4 A Peak): The onboard surge suppressor handles a 1,500 W peak at 10/1000 µs pulse shape with 21.4 A peak current — the relevant waveform for indirect lightning and switching transients on outdoor distribution circuits. This is not a marketing spec; it directly reduces the probability of camera damage during storm season in exposed outdoor runs.
• NEMA TS2 Shock and Vibration Compliance: Traffic-signal-grade mechanical qualification means this enclosure is tested for the shock and vibration profiles you encounter on poles, bridges, and structures subject to vehicle traffic loads. If the mounting surface moves, this enclosure is already qualified for it.
• ISO 14933 Salt Mist Compliance: Validated against the salt-fog standard used for coastal and marine-adjacent deployments. If your site is within a few miles of saltwater, this is the certification to look for — corrosion from salt mist will destroy an unrated enclosure within a season.
• 0–100% Condensing Humidity Rating: The sealing is qualified across the full relative humidity range, including condensing conditions. This is critical for enclosures that cycle between cold nights and warm days — the scenario where cheaper gasket systems fail first.
• Compact Form Factor (8.52 × 6.69 × 4.76 in): At under 9 inches tall and weighing 9.06 lb, the NBA-7070-PA1 mounts on a standard pole or wall bracket without requiring structural reinforcement. The aluminum and polypropylene composite construction keeps weight down while the steel chassis maintains the IK10 rating.
• RAL 9003 Signal White Finish: The standard color is signal white, which blends with typical exterior architectural finishes. Note this for installations where enclosure visibility is a site-requirement consideration.

Integration and Compatibility

The NBA-7070-PA1 is designed as a field power node for Bosch surveillance systems and is compatible with any 24 VAC-rated device within its 96 VA output budget. This includes most fixed outdoor IP cameras, 24 VAC access readers, and intercom door stations that accept transformer-supplied AC power. The 50/60 Hz dual-frequency input makes the unit usable in both domestic and international deployments without modification.

When integrating into larger installations, plan your network power distribution strategy carefully: devices drawing PoE from a switch still need 24 VAC for any legacy or hybrid readers on the same run. The NBA-7070-PA1 fills that role cleanly. For full system design guidance, review our security camera selection guide for coverage planning before finalizing field power runs. If your project includes multiple such enclosures, pair with a surge-protected surveillance power distribution panel at the head-end to cover the AC feed to each cabinet.

Frequently Asked Questions

Q: What is the output voltage and current of the NBA-7070-PA1?

A: The NBA-7070-PA1 outputs 24 VAC at up to 4 A, for a total rated output of 96 VA. Input is 120 VAC at 0.8 A draw.

Q: Is the NBA-7070-PA1 rated for outdoor installation in extreme cold?

A: Yes. The operating temperature range is -60°C to 55°C (-76°F to 131°F), which covers virtually all above-ground outdoor environments in North America without a supplemental heater.

Q: What does the IK10 rating mean for this enclosure?

A: IK10 is the highest classification in the IEC 62262 vandal-resistance standard. It means the enclosure is tested to withstand a 20-joule impact — equivalent to a 5 kg mass dropped from 400 mm. This is appropriate for transit, parking, and any site where physical tampering is a concern.

Q: Does the NBA-7070-PA1 include surge protection?

A: Yes. The unit includes onboard surge protection rated at 1,500 W peak power with a 21.4 A peak current at the 10/1000 µs pulse waveform — the standard profile for indirect lightning and switching transients.

Q: Is the NBA-7070-PA1 suitable for coastal or salt-air environments?

A: Yes. The enclosure carries ISO 14933 salt mist compliance, which is the certification relevant to coastal and marine-adjacent installations where salt-fog corrosion is a documented risk.

Q: What is the IP rating, and does it cover submersion?

A: The NBA-7070-PA1 is rated IP66, meaning it is fully sealed against dust and protected against powerful water jets. It is not rated for submersion — installations in flood-prone or below-grade locations require IP67 or higher.

James Everett

The NBA-7070-PA1 earns its place in outdoor surveillance infrastructure based on a spec combination that's genuinely uncommon at this enclosure size: IK10 impact resistance paired with an IP66 seal, a -60°C cold-floor rating, and ISO 14933 salt mist compliance — all in a 9-lb, pole-mountable form factor. Most projects I've reviewed that spec this unit are doing so because a standard NEMA 4X box doesn't carry the IK10 or the salt mist cert, and the site requirements demand both.

Technical Highlights:

• 96 VA Output Headroom: At 4 A / 24 VAC, you have enough capacity to power 3–4 24 VAC PTZ cameras or 6–8 fixed cameras from a single enclosure — reduces the number of field power nodes needed on a multi-camera pole run.
• 1,500 W / 21.4 A Surge Suppression: The 10/1000 µs rated suppressor addresses the indirect lightning transient that kills cameras and readers in exposed outdoor runs. This is the waveform that matters — not the theoretical peak a paper spec might quote.
• -76°F Cold-Floor Rating: The -60°C lower bound means no supplemental heater kit is required in northern climates, which removes a failure point and simplifies the installation. Most competing enclosures spec to -40°C; the extra 20°C margin matters in unheated above-ground structures in cold regions.

Deployment Considerations:

• Input is 120 VAC only — verify your field circuit voltage before speccing this unit. The 50/60 Hz dual-frequency rating covers both domestic and international grid frequencies, but 240 VAC input is not supported.
• IP66 is not submersion-rated. If the enclosure mounting location is in a flood zone or below-grade vault, this unit is the wrong choice — specify IP67 or higher and revisit the enclosure selection entirely.

This enclosure is the right fit for pole-mounted camera and reader clusters at coastal transit stations, bridge toll infrastructure, or northern municipal deployments where the combination of salt air, vandalism risk, and temperature extremes rules out lighter-duty enclosures — and where a 9-lb form factor keeps pole load calculations manageable.
