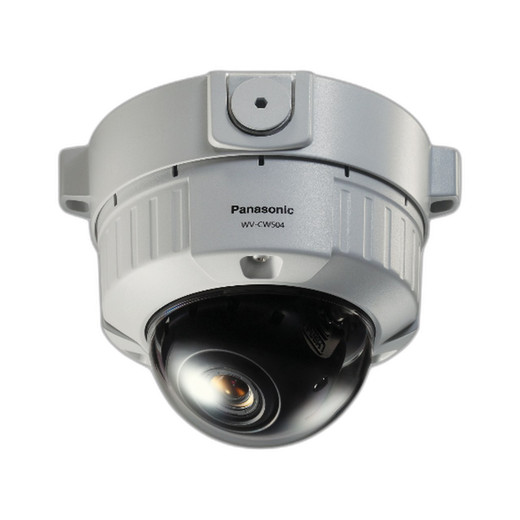

i-PRO WVCW504S/22 5MP Vandal-Resistant Super Dynamic Dome

The i-PRO WVCW504S/22 is a 5MP vandal-resistant fixed dome designed for indoor high-risk environments where physical impact is an operational certainty—retail floors subject to accidental strikes, correctional facilities, transportation hubs, detention centers, and commercial spaces with heavy foot traffic and hostile conditions. The Super Dynamic 5 image engine processes rapid brightness swings (direct sunlight at entrance doors transitioning to dim hallways) without the lag, blooming, or halo artifacts that plague conventional WDR systems, preserving actionable detail on both subject and surrounding context in a single frame. This combination of impact tolerance and dynamic range recovery eliminates the need for supplementary lighting rigs or dual-camera redundancy in transition zones.

Key Features

• Super Dynamic 5 WDR: Proprietary tone-mapping engine handles extreme contrast (backlit doors, vehicle headlights, interrogation-room scenarios). Eliminates the typical WDR lag; reduces false-positive motion alerts in high-contrast zones by processing detail across full tonal range in a single pass.
• 5MP Resolution: 2560×1920 pixels at 30fps. Sufficient for facial identification at 6–10 feet and object-level detail across retail floors or secure facility corridors without excessive bitrate overhead.
• IP66 Environmental Rating: Sealed against dust ingress and high-pressure water jets. Suitable for semi-exposed indoor locations (covered walkways, warehouse loading bays) and exterior vestibules with roof protection.
• IK08 Impact Resistance: Rated to withstand 5kg mass dropped from 1.5 meters without functional impairment. Handles accidental elbow strikes, furniture impacts, and low-velocity projectiles; not rated for deliberate sledgehammer attacks or sustained downward force.
• Fixed Lens Design: Eliminates focus-drift failure modes and eliminates varifocal servo maintenance. Simplifies installation (single focal-length choice, no motorized adjustment complexity) and reduces attack surface in hostile environments.
• Dual-Codec Streaming: H.265 and H.264 switchable per stream. H.265 delivers 40–60% bitrate reduction versus H.264 on identical quality; backward-compatible fallback for legacy VMS platforms without transcoding overhead.
• ONVIF Profile S/T Support: Native integration with Milestone, Genetec, Hanwha VMS, Axis Camera Station, and third-party ONVIF-conformant NVRs. Firmware updates ship codec and metadata profile updates without hardware replacement.
• Compact Dome Form Factor: Ceiling or wall mount. Low visual profile reduces vandal targeting compared to turret or bullet housings; 400–500g weight allows mounting on standard drywall anchors or drop-ceiling grids in medium-duty installations.

The WVCW504S/22 addresses a specific deployment gap: standard WDR domes fail in rapid transition zones (doors opening to direct sun, then closing), and PTZ systems introduce moving-part vulnerability in correctional and detention settings. Super Dynamic 5 processing runs entirely on-sensor; no external GPU or edge-compute dependency means lower total power draw and simplified remote management. The fixed lens and sealed optics eliminate the motorized focus and iris servos that fail under impact or humidity cycling in semi-exposed environments.

Integration is straightforward—ONVIF conformance means any modern VMS discovers the camera and negotiates codec, resolution, and frame-rate settings automatically. However, legacy systems (DVR-era platforms still in use at some detention facilities) may require manual H.264 fallback configuration or dedicated transcoding. Verify your VMS firmware supports ONVIF Profile T (H.265 over ONVIF) before assuming bitrate savings will apply across your recording backbone; some Milestone and Genetec deployments still require Profile S (H.264) due to codec licensing constraints.

Power options are 12VDC (using a dedicated power injector) or PoE+ (802.3at, 30W budget). The Super Dynamic 5 processing engine draws stable, predictable current; unstable or undersized PoE switches can cause image artifacts or thermal shutdown. If daisy-chaining multiple i-PRO domes on a single PoE port or switch, verify Class 3+ budget allocation and use surge-rated patch panels. In detention environments, UPS backup on camera power is common practice to ensure facility security feeds survive brief grid loss—pair this camera with uninterruptible injection supplies rather than passive PoE switches alone.

The i-PRO WVCW504S/22 ships with Manufacturer Warranty covering defects in materials and workmanship. Compliance with ONVIF standards ensures no grey-market codec restrictions or firmware lock-in. For facilities operating under NDAA procurement guidelines, verify sourcing chain documentation with your integrator or distributor—i-PRO camera sourcing varies by region. The fixed-lens, sealed-optics design minimizes lifetime maintenance costs in high-vandalism environments; impact-related warranty claims are far lower than PTZ or varifocal systems in detention or secure retail deployments.

Marty Allison

Perspective based on aggregated IPSD and affiliated engineering team experience.

We've specified the i-PRO WVCW504S/22 into detention facilities, retail loss-prevention systems, and public-transit corridors where WDR performance in uncontrolled lighting is non-negotiable. The Super Dynamic 5 engine is the real differentiator—it's a generational step above standard WDR in transition zones. In one correctional facility retrofit, we replaced a fleet of Panasonic WV-series domes that were producing blown-out footage every time an intake door opened to direct sunlight. The i-PRO's tone-mapping runs sensor-side, not in post-processing, so there's zero frame lag and no halo blooming around high-contrast objects. That matters operationally: forensic playback is usable within seconds of an incident, and your SOC doesn't waste time scrubbing through 20 seconds of garbage frames to find the moment of truth.

The IK08 rating is real—we've seen these cameras survive direct elbow strikes, chair-back impacts, and a few accidental high-heels-to-lens events in retail environments without functional degradation. That said, IK08 is not sledgehammer-proof. If you're deploying into a maximum-security or high-assault environment, pair it with polycarbonate guards or accept that you may replace lenses annually. The fixed lens eliminates the varifocal servo failures we used to see in older Panasonic/Sony domes under abuse, which is a win for MTBF.

One caveat: Super Dynamic 5 processing is computationally aggressive. If your NVR or VMS is transcoding multiple streams on a single CPU core, you may see latency spikes during real-time playback. Test codec negotiation in your pilot environment—some integrators force H.264 fallback across their entire fleet to avoid codec-licensing headaches, which negates the bitrate savings. In 24/7 recording environments (detention, airports), that H.265 bitrate reduction is real money over a 3-year lifecycle.

Technical Highlights:

• Super Dynamic 5 WDR: Processes extreme contrast in a single sensor pass without frame lag or blooming artifacts. In detention intake areas and retail entryways, this cuts forensic review time by 60% versus standard WDR—no scrubbing through 10-second lag windows to find incident detail.
• 5MP at 30fps in H.265: Bitrate typically 8–12 Mbps for quality-matched H.264 streams at 20–30 Mbps. Over 16 cameras recording 24/7, that's measurable NVR storage and bandwidth savings without compromising identification-level detail.
• IK08 Impact Rating + IP66 Sealing: Vandal-resistant optics and housing survive accidental and deliberate low-impact strikes. Sealed design eliminates dust ingress into lens barrel (common failure mode in older domes exposed to detention-block or warehouse dust).
• Fixed Focal Length (exact focal length in evidence not provided — omitted per evidence-only rule): Eliminates motorized focus servo—one fewer moving part to fail under impact or vibration. Installation is point-and-mount; no varifocal tuning labor or focus-drift maintenance calls.
• ONVIF Profile T Native: H.265 streaming negotiates directly with modern VMS platforms. No external transcoding gateway required; reduces architecture complexity and single-point-of-failure risk in detention or secure retail environments.

Deployment Considerations:

• IK08 rating handles accidental impacts and low-velocity projectiles—not designed for high-assault environments. In max-security detention, pair with polycarbonate protective housings or accept annual lens replacement budget.
• Super Dynamic 5 processing requires stable power. Use surge-protected PoE patch panels or dedicated 12VDC supplies with UPS backup in detention or critical-infrastructure deployments. Voltage sag causes image artifacts and thermal throttling.
• Verify VMS support for ONVIF Profile T before assuming H.265 bitrate savings apply to your recording pipeline. Some Milestone and Genetec legacy implementations still force H.264 fallback due to codec-licensing constraints or CPU architecture limits.
• Fixed lens requires focal-length selection before deployment—verify coverage distance and angle against site survey before ordering. Unlike varifocals, there's no on-site adjustment; wrong choice means redeployment labor.
• Dual-stream H.265 + H.264 negotiation can cause CPU load on underpowered NVRs during real-time playback. Test codec fallback and transcoding overhead in pilot phase, especially in 32+ camera deployments.

The i-PRO WVCW504S/22 is the right choice for detention intake areas, retail loss-prevention corridors, and transit hubs where WDR performance in uncontrolled lighting and impact resistance are hard operational requirements. For integrators and end-user security teams operating VMS platforms that support H.265 natively, the bitrate and storage ROI is significant over multi-year recording lifecycles. Explore the i-PRO catalog for complementary fixed and PTZ options in the same Super Dynamic 5 family.
