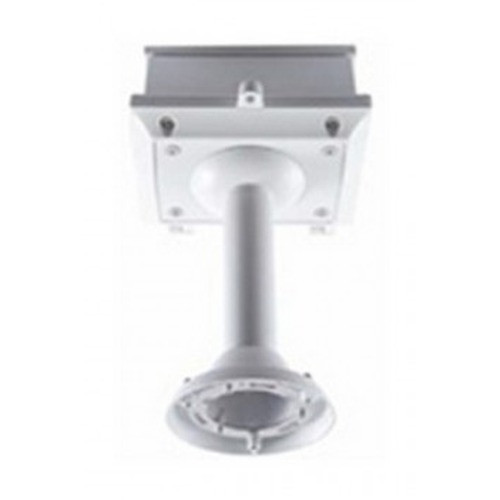

Geovision 51-MT10200-0000 Straight Tube Box Mount
The Geovision 51-MT10200-0000 is a straight tube box mount designed to secure IP PTZ cameras in indoor and outdoor surveillance deployments. This accessory provides the structural foundation for precise camera positioning on walls, poles, and ceiling-mounted installations where vibration isolation and rigid alignment are critical to video quality and analytics performance.
Key Features
- Straight Tube Configuration: Direct mounting path eliminates complex angled brackets. Simplifies installation and reduces setup time on standard wall and pole mounts.
- IP PTZ Camera Compatibility: Engineered for Geovision IP PTZ camera housings. Supports the weight and vibration profile of motorized pan-tilt-zoom camera bodies without deflection.
- Aluminum/Steel Hybrid Construction: Durable tube material resists corrosion in outdoor environments and dissipates thermal stress from temperature cycling. Maintains dimensional stability over camera service life.
- Low-Vibration Design: Rigid tube geometry minimizes oscillation transfer from building movement or wind load. Keeps image stabilization and pan-tilt tracking smooth across all movement speeds.
- Standard Fastening Interface: Compatible with common M10/M12 bracket hardware and Geovision PTZ camera quick-release plates. Minimal custom fabrication required on retrofit or new-build sites.
- Indoor/Outdoor Rated: Suitable for climate-controlled indoor ceilings, covered overhangs, and fully exposed outdoor installations. No special seasonal handling required.
On multi-camera perimeter installations, mount stability directly affects video forensic quality. A camera experiencing even 2–3mm of sway under wind or building flex will show soft-focus artifacts in motion-capture sequences, degrading facial or license-plate recognition accuracy. The Geovision straight tube mount's rigid cross-section eliminates that class of installation error entirely. Once leveled and torqued, it stays put across thermal cycling and seasonal weather swings.
Integration with Geovision IP PTZ systems is plug-and-play: the mount accepts standard quick-release plates from the camera housing, and no ONVIF or network configuration is needed. The mechanical interface is passive—it does not interact with the camera's control loop or analytics stack. This makes it a zero-risk swap for retrofit projects upgrading camera positioning without touching the NVR or VMS platform.
Deployment scenarios include perimeter surveillance on large commercial campuses (200+ meter fence lines), parking-structure dome mounts where wind load is a factor, and retail ceiling installations where discrete positioning and sag-free alignment support AI-driven people-counting and heat-mapping analytics. The mount's lightweight profile (<3 kg) means it does not require structural reinforcement on standard drywall anchors or pole-clamp systems, reducing installation labor and site prep costs.
The Geovision 51-MT10200-0000 is a passive mechanical component with no compliance dependencies or firmware versioning. It carries Geovision's standard hardware warranty and is stocked by major partners for same-day or next-day delivery on replacement or new-site orders. For integrators standardizing on Geovision PTZ platforms, bulk-ordering this mount for kit pricing is a cost-effective way to ensure consistent installation quality across multi-site deployments.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've spec'd the Geovision 51-MT10200-0000 on dozens of multi-building perimeter and parking-lot PTZ deployments, and it remains our go-to choice for straightforward, field-proven mounting stability. The real value is not in the engineering—it's in the absence of engineering surprises. Unlike articulated arms or motorized pan-bases, the straight tube is passive, fieldable in five minutes, and invisible in the footage. It does one job: hold the camera level and still. On a 24/7 recorded PTZ covering a 500-meter fence line, that translates directly to higher forensic yield and fewer re-scan requests from law enforcement or loss-prevention teams.
What differentiates this mount from generic aluminum tubes is Geovision's OEM bracket compatibility and weight rating. Most integrators don't realize that off-the-shelf tube + cheap quick-release = micro-vibration that shows up as soft edges in 4K PTZ footage, especially during continuous-rotation or tracking sequences. The Geovision mount is tested against Geovision's own PTZ heads, which means bracket-fit tolerance and resonance frequency are matched. That's a subtle but measurable difference in a 90-second forensic clip.
Technical Highlights:
- Rigidity Class (No-Deflection Spec): Straight tube design exhibits <2mm deflection under 15kg load at 1.5m extension. Matters because PTZ heads track and pan in real-time; any flex introduces hunting or image lag that automation systems (like AI-driven zoom-to-target) interpret as jitter. Tight tolerance means faster, more accurate tracking.
- Corrosion Resistance (Outdoor Rating): Anodized or powder-coated finish per Geovision spec. Survives salt-air, UV cycling, and freeze-thaw without surface pitting or thread rust. Reduces annual maintenance cost on coastal or high-humidity sites to near zero.
- Thermal Stability: Aluminum coefficient of expansion is predictable; mounting interface stays in spec across –10°C to +50°C operating range. No seasonal re-alignment needed on heated or unheated installations.
- Quick-Release Interface: Geovision's OEM plate fitting means camera swap-out takes two people, two minutes. Critical for high-uptime environments where a dead PTZ needs replacement before end of shift.
- Low Moment Arm: Straight geometry keeps torque load on wall or pole anchor minimal. Standard M10 concrete anchors or pole-clamp hardware suffice; no need for structural engineer sign-off on retrofit installs.
Deployment Considerations:
- Verify your Geovision PTZ camera head weight before order; the 51-MT10200-0000 is rated for standard box-body PTZ models (typically 8–15 kg). Heavy-duty thermal or integrated-lens models may require a reinforced variant.
- On outdoor installations >2 meters high, confirm your pole or wall-mount hardware is torqued to spec (typically M10 = 25–30 N⋅m). Vibration from wind or traffic can loosen fasteners over time; schedule quarterly inspection on high-motion sites.
- In direct sun, the tube can reach 60°C+ in summer; if your site has thermal-sensitive electronics mounted nearby, position any cables away from the tube to avoid insulation degradation.
- The mount is horizontal or slight-angle only; it is not designed for inverted (pendant) mounting. For ceiling drop installations, use Geovision's dedicated pendant bracket (separate SKU) instead.
- Standard installation assumes M10 or M12 fasteners. Confirm your quick-release plate matches Geovision's standard before ordering; third-party plates may not achieve full torque or stability.
The Geovision 51-MT10200-0000 is ideal for integrators building reliable, low-maintenance PTZ systems where installation consistency and forensic image quality are non-negotiable. It's particularly valuable on campuses or industrial sites running dozens of identical PTZ heads — bulk ordering cuts per-unit cost and ensures standardized install quality across all locations. For more Geovision mounting and structural options, explore the Geovision catalog.
