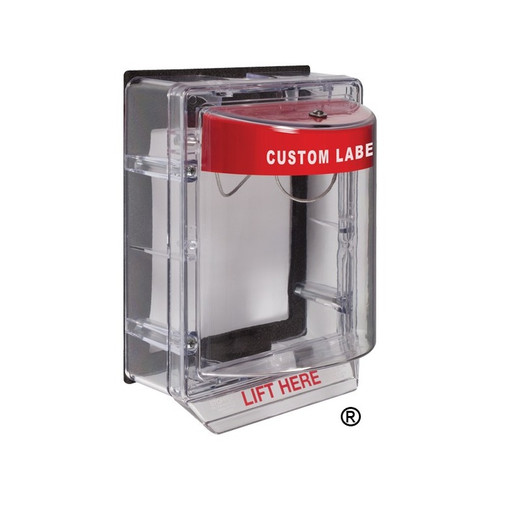

STI STI-1155-FR Stopper II with Horn and Spacer
Overview
The STI-1155-FR is a polycarbonate protective enclosure for manual fire alarm pull stations, designed to prevent accidental or intentional false alarms while permitting legitimate activation. Rated for indoor and outdoor use, this unit houses a piezo horn (9VDC battery-powered) and includes a spacer for accommodating larger or surface-mounted station designs. The clear shield provides visual access to the pull mechanism while the lift-to-break design maintains UL compliance. Deployments span schools, hospitals, nursing homes, retail facilities, and public buildings where false-alarm liability or operational disruption justifies protective coverage.
Compatibility
The STI-1155-FR accommodates most standard manual pull stations. For larger stations or surface-mounted installations, the optional STI-3100 conduit spacer extends the frame depth. The 9VDC battery power source (alkaline, included) is self-contained; no facility wiring required for the horn. Units are UL listed to U.S. and Canadian safety standards, enabling outdoor installation where local fire code permits. French-language labeling supports bilingual facility compliance in North American and European deployments.
Installation Notes
Mounting straightforward: position the frame around the existing pull station and secure per manufacturer template. Polycarbonate construction operates reliably between -40°F and 250°F (-40°C to 121°C), covering typical indoor HVAC ranges and unheated outdoor enclosures. Weather models incorporate closed-cell gaskets to seal against direct rain and humidity. Verify local fire code acceptance before outdoor installation; some jurisdictions require stations to remain unobstructed. The 9V battery (included) powers the piezo horn indefinitely unless the horn option is wired to remote power (available as separate configuration).
What's in the Box
- 1x Stopper II polycarbonate frame and shield assembly
- 1x piezo horn module (9VDC)
- 1x spacer ring
- 1x 9V alkaline battery
- 1x mounting template
- Hardware: fasteners for frame attachment
