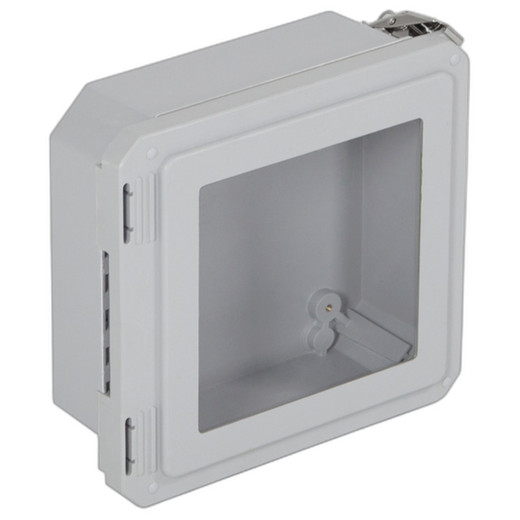

STI EF080804-W EnviroArmour Fiberglass Window Reader
Overview
The EF080804-W is a polycarbonate window enclosure designed to house proximity and NFC credential readers in outdoor and harsh-environment access control deployments. Built from injection-molded polycarbonate with RAL 7035 finish, it provides weather resistance and durability for vestibules, loading docks, and building entries where environmental protection is essential. Rated for 7-door capacity management, this unit functions as a credential reader station integrated into multi-door access control systems. UL/cUL certification (EP242410-O) confirms compliance for commercial installations.
Compatibility
The EF080804-W houses proximity readers with NFC 13.56MHz credential support, compatible with standard HID card formats and NFC-enabled mobile credentials. Integrates into access control systems requiring remote reader stations. Confirm reader hardware and communication protocol requirements with your system integrator before installation to ensure proper wiring and credential database mapping.
Installation Notes
Conduit entry requires precise hole sizing based on hub diameter: ½-inch hub uses 7/8-inch hole; ¾-inch hub uses 1 1/16-inch hole; 1-inch hub uses 1 ¼-inch hole. Use Greenlee Cutter with punch placed inside the enclosure, drawing the punch outward through the exterior wall to prevent enclosure damage. Metallic conduit requires grounding bushings secured with connector locknut; non-metallic conduit does not require grounding bushing but must be aligned to prevent wall stress. Ground wire lugs must be attached over the connector locknut per Canadian Electrical Code requirements. Sound output is 44dB(A), relevant for indoor vestibule placement where audible feedback is desired.
What's in the Box
- 1x EF080804-W fiberglass window enclosure
- Installation guide and technical documentation
