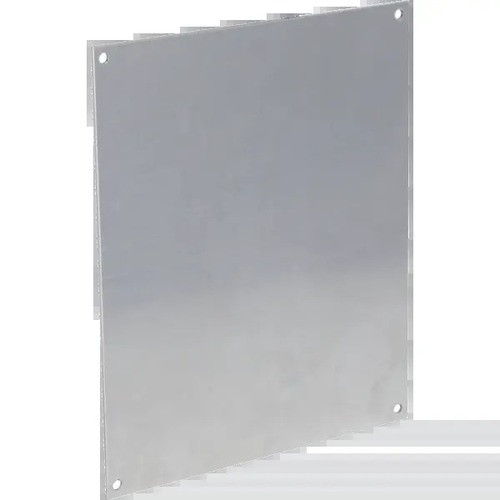

STI BPA2016 Aluminum Back Panel Enclosure
Overview
The STI BPA2016 is a 20-inch by 16-inch aluminum back panel designed as a structural mounting surface for access control reader assemblies and strike hardware. It functions as the foundation enclosure component in custom door access installations, providing a rigid frame for credential readers, control logic boards, and electromechanical strike mechanisms on standard door frames. This accessory is built to support 9VDC powered access control systems in light-duty indoor and sheltered outdoor environments.
Compatibility
The BPA2016 integrates with STI access control systems and compatible 9VDC powered assemblies. It serves as the mounting substrate for reader card slots and strike driver circuits, making it suitable for integrators configuring custom multi-reader or multi-strike door control solutions. Confirm your specific reader and strike models are rated for 9VDC operation before ordering. The panel dimensions (20 x 16 inches) are sized for single-door installations or multi-reader layouts on wider door frames — verify rough opening dimensions before finalizing mount location.
Installation Notes
Mount the back panel directly to the door frame or wall surface using appropriate fasteners for your substrate (masonry, wood, or metal stud). Use 7mm masonry drill bits if securing into concrete or brick. Ensure all reader card slots and strike terminals have clear cable access — route wiring through the aluminum frame knockouts before final panel installation to simplify serviceability. The EnviroArmour aluminum construction resists corrosion in sheltered outdoor conditions; do not use in direct spray or submersion environments. Verify 9VDC power supply capacity matches the total current draw of all readers and strikes before commissioning.
