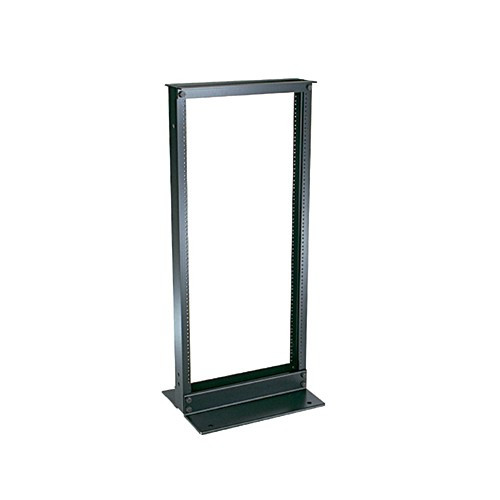

Panduit R2P48 24U Aluminum 2-Post Rack

Panduit R2P48 24U Aluminum 2-Post Rack

The Panduit R2P48 delivers a 24U open-frame mounting solution for telecom and data center equipment where footprint efficiency matters more than full enclosure. Built from extruded aluminum with #12-24 threaded e-rails and UL-rated 136.1 kg capacity, this 48-inch rack handles patch panels, cable managers, and 19-inch equipment up to 300 pounds without requiring floor-to-ceiling bracing. Universal EIA hole spacing, bottom-up RU numbering, and compatibility with Panduit's cable management ecosystem make this the backbone for central equipment rooms, IDF closets, and security head-end installations where wall-mount capacity is exceeded but cabinet cost isn't justified.

Key Features

• 24U height (48 inches / 1219mm) with #12-24 threaded e-rails for standard 19-inch equipment mounting
• Extruded aluminum construction with 76.2mm channel depth and black powder coat finish
• UL-rated 136.1 kg (300 lb) load capacity for high-density patch panel and equipment deployments
• EIA/ECA-310-E compliant with universal hole spacing and bottom-up RU numbering
• 20.3-inch width (516mm) accommodates 48.3cm equipment with integrated cable management pathways
• RoHS compliant aluminum construction for reduced weight vs. steel alternatives
• Compatible with Panduit vertical cable managers, horizontal D-rings, and accessory brackets
• Pre-threaded rails eliminate field tapping and speed equipment installation

The R2P48's #12-24 threaded e-rail design solves the most common 2-post deployment problem: incompatible mounting hardware. Unlike square-hole or round-hole racks that require cage nuts or clip nuts, the R2P48's pre-threaded rails accept standard 12-24 screws directly, eliminating the cage-nut alignment dance when installing heavy patch panels in confined spaces. The 76.2mm channel depth provides front-side cable routing without requiring separate vertical managers for light-density runs, while still accepting Panduit's PatchRunner and NetRunner systems when horizontal density exceeds 48 ports per RU. Bottom-up RU numbering matches EIA/TIA-310-E standards, so your 1U equipment mounts at RU position 1 (not position 24), preventing the documentation mismatches that plague top-down numbered racks. The extruded aluminum construction cuts installed weight by 40% compared to equivalent steel 2-post racks, a meaningful difference when mounting to wood studs or metal studs in retrofit installations where wall load capacity is unknown.

Security integrators deploy the R2P48 in central equipment rooms for NVR arrays, PoE switch stacks, and UPS equipment where the NVR count exceeds wall-mount capacity but doesn't justify a full 42U cabinet. The 136.1 kg UL rating supports four 1U NVRs (6 kg each), a 2U 48-port PoE switch (8 kg), and six 1U 16-port PoE switches (3 kg each) with 50% safety margin remaining—a typical 32-64 camera installation footprint. Datacenter and IT teams use it for IDF closets where fiber patch panels, copper patch panels, and horizontal cable management consume 18-20U, leaving bottom space for UPS or switch gear without the cabinet cost. The open-frame design provides unrestricted airflow for passively cooled equipment and allows front-and-rear access without door removal, critical in telecom rooms where HVAC is limited and service windows are measured in minutes. AV integrators rack DSPs, amplifiers, and matrix switchers in equipment closets where the 20.3-inch width provides mounting stability without the cabinet footprint, and the aluminum construction prevents rust in humid coastal or basement environments. The black powder coat finish matches server-room aesthetics and resists scratching during equipment installation, while the RoHS-compliant aluminum can be recycled at end-of-life in jurisdictions with e-waste metal recovery requirements.

EIA/ECA-310-E compliance ensures compatibility with every 19-inch rack-mount manufacturer's equipment, eliminating the trial-and-error mounting that plagues non-compliant imported racks where hole spacing drifts by 2-3mm over 24U. The pre-threaded #12-24 rails accept both coarse-thread 12-24 screws (standard with most telecom equipment) and fine-thread 10-32 screws via adapter hardware, giving you flexibility when vendor-supplied mounting hardware doesn't match spec. Panduit's cable management accessory line—including PatchLink horizontal managers (2U, 1U), vertical NetRunner channels, and D-ring pass-throughs—mounts directly to the R2P48's channel slots without drilling, so you can add organization as port density grows. For installations requiring seismic bracing, the R2P48's extruded channel accepts Panduit's zone-4 seismic tie-downs, bringing it into compliance with IBC 2021 and California CBC Chapter 16 when combined with proper floor anchoring. This is the rack for the space between "wall-mount bracket" and "full server cabinet"—where you need real capacity, real compliance, and real cable management, but don't need doors, locks, or the $1,800 cabinet price tag.
