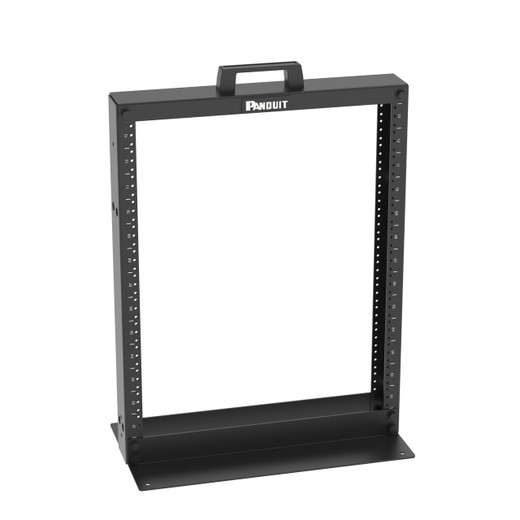

Panduit R2P26 13U 2-Post Rack

The Panduit R2P26 delivers a 13U open-frame mounting platform engineered for telecommunications closets, server rooms, and intermediate distribution frame deployments where space constraints or airflow requirements rule out full 4-post enclosures. Built on extruded aluminum channels with powder-coated black finish, this 26-inch-wide rack accepts standard 19-inch equipment while providing threaded #12-24 e-rails that eliminate the need for cage nuts and speed deployment in high-density patch panel, switch, and media converter installations. Bottom-to-top rack unit numbering follows EIA/ECA-310-E conventions, and the 20.3-inch overall width fits standard 23-inch relay racks or wall-mount configurations. Integrators deploying fiber distribution hubs, voice patch blocks, or network electronics in retrofit telecom rooms gain a code-compliant frame that pairs directly with Panduit's vertical and horizontal cable managers without requiring custom fabrication or offset brackets.

Key Features

• 13U capacity with EIA/ECA-310-E standard hole spacing supports switches, patch panels, media converters, and telecom equipment up to 19 inches wide
• Threaded #12-24 e-rails eliminate cage nuts and allow tool-free equipment repositioning during adds, moves, and changes
• Extruded aluminum construction with 3-inch-deep channels provides structural rigidity while keeping installed weight under 15 pounds for drywall and stud-mount applications
• Powder-coated black finish resists corrosion in temperature-controlled environments and maintains professional aesthetics in customer-facing spaces
• Bottom-to-top rack unit numbering matches industry conventions for consistent documentation across multi-site deployments
• 26-inch width accommodates standard 19-inch rack-mount equipment with clearance for side-mount cable managers and equipment with recessed front panels
• Compatible with Panduit vertical cable managers (WMVSE series), horizontal D-rings (WMPFSE series), and grounding kits for turnkey installations
• RoHS compliant construction meets environmental regulations for federal, healthcare, and education sector projects

The R2P26's extruded aluminum rail design addresses the structural demands of network equipment installations where wall or stud mounting is the only viable option. Each channel measures 3 inches deep and features continuous #12-24 tapped holes on 0.625-inch (5/8-inch) EIA spacing, allowing installers to position equipment at any rack unit without pre-planning hole locations or stocking cage nuts. The threaded rail design supports equipment weighing up to manufacturer-specified limits when properly anchored to building structure, and the aluminum extrusion resists flexing under load better than stamped steel alternatives in the same weight class. The powder-coated finish is applied after extrusion and tapping, ensuring threads remain clean and free of coating buildup that would interfere with screw engagement. This rack ships as a single assembly—no field assembly of rail sections or crossbars is required—and mounts to walls, studs, equipment cabinets, or relay racks using installer-supplied fasteners sized for the substrate and total installed load.

In telecommunications and data center applications, the R2P26 fits deployment scenarios where full-depth 4-post racks are cost-prohibitive or physically incompatible with available floor space. Common installations include fiber distribution hubs in building entrance facilities, where LC or MPO cassettes and patch panels require structured mounting but equipment depth is under 12 inches; telephone system intermediate distribution frames in multi-tenant buildings where 66- or 110-blocks need code-compliant support; network switch stacks in retail or branch office IT closets where shallow-depth switches (Cisco Catalyst, Aruba, Ubiquiti) don't require rear rail support; and media converter or PoE injector farms in camera system head-ends where single-RU devices need organized vertical stacking. The 13U height provides enough capacity for a typical remote site deployment—8U of active equipment, 3U of patch panels, and 2U of cable management—while keeping overall installed height under 28 inches, which fits beneath standard 30-inch desk heights or above suspended ceiling grids in plenum spaces. Integrators working in retrofit environments appreciate that the 20.3-inch width matches legacy 23-inch relay rack footprints, allowing the R2P26 to replace aging equipment frames without modifying wall anchors or cable routing.

The rack's compatibility with Panduit's cable management ecosystem eliminates the integration guesswork common with mixing manufacturers. Vertical managers from the WMVSE series bolt directly to the rack's threaded rails using the same #12-24 pattern, providing front-facing cable routing that keeps patch cords and fiber jumpers organized without obscuring equipment labels or LED indicators. Horizontal managers (D-rings, pass-through panels, or slack spools) mount between rack units to support overhead or underfloor cable entry, and Panduit's grounding kits (if required for TIA-607-C compliance) attach using the existing threaded holes without requiring drilling or additional hardware. The black powder-coat finish matches Panduit's NetRunner and PanZone cable tray systems, allowing the rack to integrate visually with overhead pathway infrastructure in exposed installations. For projects requiring seismic bracing or additional lateral support, the R2P26's aluminum channels accept third-party bracing brackets designed for EIA-standard 12-24 threaded rails, though integrators should verify total installed load remains within anchor and wall substrate capacity when adding bracing hardware.

The Panduit R2P26 ships EIA/ECA-310-E compliant and RoHS certified, meeting baseline requirements for federal government projects (GSA schedules), healthcare facilities (HIPAA-adjacent infrastructure), and education sector deployments (E-rate program installations). The EIA/ECA-310-E compliance ensures rack unit spacing matches the 1.75-inch standard recognized by every major network equipment manufacturer, eliminating compatibility surprises during equipment installation. RoHS certification addresses lead-free and heavy-metal restrictions common in municipal procurement specs and allows the rack to be specified in projects pursuing LEED or similar green building certifications where materials documentation is required. The rack's aluminum construction and powder-coat finish meet NFPA 70 (National Electrical Code) requirements for non-current-carrying metal parts in electrical installations, and the material is inherently non-combustible, which simplifies fire marshal inspections in jurisdictions enforcing strict telecom room material standards.
