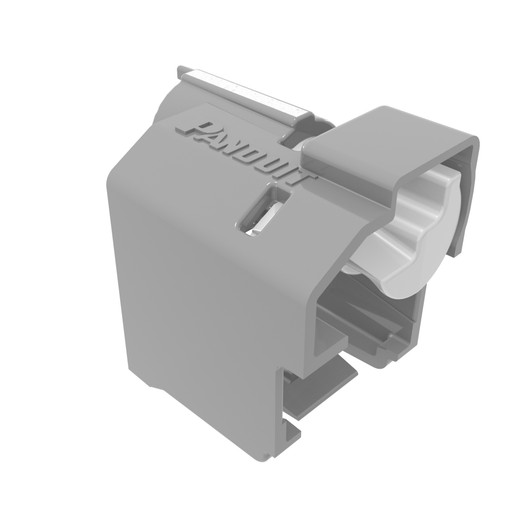

Panduit PSL-DCPLE-IG RJ45 Patch Cord Port Lock

The Panduit PSL-DCPLE-IG is a standard-profile port locking device engineered to secure RJ45 patch cord connections against unauthorized removal and accidental disconnection in mission-critical network infrastructure. Molded from impact-resistant polycarbonate with an extended protective cover, this 10-pack includes a dedicated removal tool and addresses physical-layer security requirements in data centers, telecom closets, healthcare IT environments, and secure facilities where network uptime and access control directly impact operations and compliance posture.

Key Features

• Prevents unauthorized patch cord removal and accidental disconnection of RJ45 connections
• Standard profile design for surface-mounted modular jacks and patch panels
• Extended protective cover shields the locking mechanism from damage during daily access
• Impact-resistant polycarbonate construction withstands handling in high-density rack environments
• Tool-free installation—locks snap onto RJ45 plugs without additional hardware
• Includes dedicated removal tool for authorized maintenance and moves-adds-changes
• 10 gray locks per package for systematic deployment across critical infrastructure zones
• Compact 0.74" x 0.55" footprint maintains density in congested patch fields

The PSL-DCPLE-IG uses a snap-on mechanical retention design that engages the RJ45 plug body once inserted into a modular jack, creating a physical barrier against both intentional tampering and accidental pullout. The standard-profile variant is engineered for jacks mounted flush or protruding from patch panels, wall plates, and equipment faceplates—the most common mounting configuration in commercial structured cabling. The extended cover design differentiates this model by fully enclosing the locking clip mechanism, preventing damage from adjacent cable bundles, tie-wrap edges, or repeated hand contact during routine maintenance. Polycarbonate construction delivers impact resistance and dimensional stability across the 0°C to 60°C operating range typical of telecom rooms and network closets. Installation requires no tools: align the lock body with the inserted RJ45 plug and press until the retention features engage. Authorized removal requires the included extraction tool, which disengages the internal clip without damaging the lock or patch cord—critical for environments where network changes follow change-control procedures and physical access logs.

Physical-layer security remains a foundational control in defense-in-depth network architectures, particularly in sectors where regulatory frameworks mandate access restrictions and audit trails. The PSL-DCPLE-IG addresses scenarios where logical access controls (VLANs, port security, 802.1X) must be reinforced with physical protections: healthcare networks under HIPAA requirements, financial services infrastructure subject to SOX or PCI-DSS audits, government facilities with NIST 800-53 physical security mandates, and industrial control systems where unplanned disconnections can trigger safety interlocks or process interruptions. Beyond intentional threats, the locks mitigate operational risks in multi-tenant data centers (preventing customer cross-connects), co-location facilities (isolating tenant patch fields), and campus networks (preventing well-intentioned but unauthorized moves by non-IT staff). The gray colorway provides discrete visual blending with standard network hardware while still allowing visual confirmation of lock presence during compliance walk-throughs. The 10-pack sizing supports targeted deployments—core switch uplinks, firewall WAN connections, storage network fabrics, out-of-band management interfaces—without over-purchasing for environments where only critical circuits require locking. Carton quantities of 20 packages provide volume pricing for systematic campus or enterprise rollouts.

The standard-profile form factor accommodates the majority of commercial-grade structured cabling installations where jacks are mounted in surface-style patch panels, telecommunications outlets, and equipment I/O plates. The included removal tool ensures maintenance teams can execute authorized changes without cutting locks or damaging terminations, preserving the integrity of warranty-grade cabling infrastructure and allowing lock reuse after circuit decommissioning. Polycarbonate material selection balances cost with performance in daily-access environments, offering better impact resistance than ABS alternatives while maintaining UL94 flame rating compatibility with plenum and riser pathway requirements.
