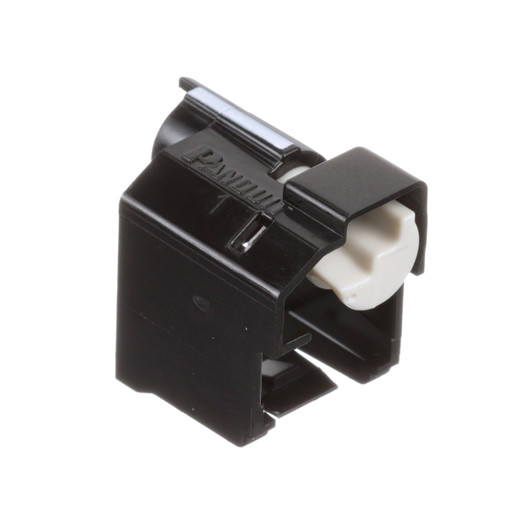

Panduit PSL-DCPLE-BL Standard Port Locking Device

The Panduit PSL-DCPLE-BL port locking device secures RJ45 patch cord connections against unauthorized disconnection and accidental removal in datacenters, network closets, and server rooms. Designed for surface-mounted jack installations, this standard-profile locking clip features an extended polycarbonate cover that protects the locking mechanism from damage during routine maintenance. Each package includes 10 black devices and a dedicated removal tool, providing a complete physical security solution for critical network infrastructure where uptime requirements or regulatory compliance mandate positive retention of patch cord connections.

Key Features

• Standard profile for surface-mounted RJ45 jacks and patch panels
• Extended polycarbonate cover shields locking tab from accidental release
• Black finish maintains professional appearance in visible installations
• Compact footprint: 0.74" H × 0.55" W (18.8 × 13.9 mm) fits dense patch fields
• Includes removal tool for authorized disconnection without damage
• 10-device pack covers critical connections per rack or cabinet
• Polycarbonate construction resists impact and temperature cycling

The PSL-DCPLE-BL uses a positive-retention design that engages the RJ45 plug's locking tab, preventing withdrawal without the included removal tool. The extended cover is the key differentiator: in high-density environments where fingers or tools brush against connections during adjacent work, the polycarbonate shield prevents inadvertent tab depression that would release a standard plug. The standard profile is engineered for jacks that protrude from the mounting surface—patch panels, wall plates, and surface-mount boxes—where the device seats flush against the panel face. Installation is tool-free: slide the device over the plug body until it clicks into place. The low 0.74-inch height ensures compatibility in 1U patch panel arrays with minimal vertical clearance between ports. Polycarbonate was selected for its balance of rigidity and durability; it maintains retention force through hundreds of thermal cycles common in enclosed cabinets and resists cracking from accidental impacts during cable management work.

Deploy PSL-DCPLE-BL devices on uplink connections, cross-connects to critical systems, and any patch cord that terminates to equipment where unplanned downtime triggers SLA penalties or safety concerns. Common applications include securing connections in colocation facilities where multiple tenants access the same cabinet, locking down surveillance network uplinks in secure areas, and protecting POS system backhaul connections in retail environments where non-IT staff work near network gear. The black color code integrates cleanly with most structured cabling color schemes and doesn't draw attention in customer-facing telecom rooms or executive floor IDFs. The 10-pack quantity aligns with typical rack deployment: secure the two uplinks, the management connection, and reserve seven devices for future critical additions. The included removal tool is a non-destructive release mechanism—insert the tool tip to disengage the lock without prying or applying force that could damage the plug's locking tab or the jack's retention clip.

This locking device is a direct-fit solution for Panduit-standard surface-mount jacks and is broadly compatible with industry-standard RJ45 plugs that feature a molded strain relief body. For flush-mount jack installations—where the connector sits recessed into the panel—Panduit offers low-profile variants; confirm the jack mounting style before ordering to ensure the standard-height cover clears the panel surface. The PSL-DCPLE-BL provides verifiable compliance with physical security requirements in HIPAA, PCI-DSS, and NIST 800-53 frameworks that mandate controls against unauthorized network access, making it a low-cost, high-impact addition to access control programs in healthcare, finance, and federal environments.
