Viking Electronics E-30-PT-EWP Push-To-Talk Entry Phone with Enhanced Weather Protection
Overview

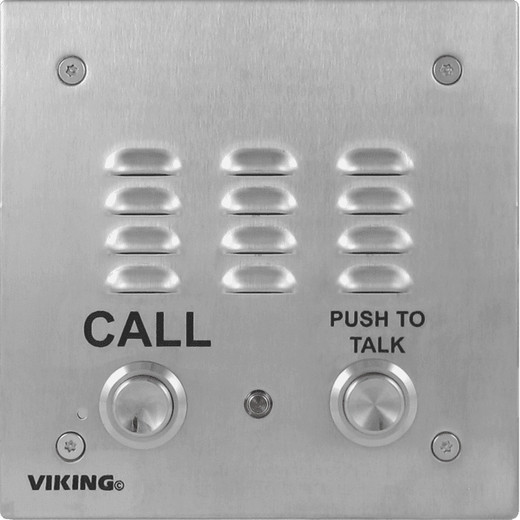

The Viking Electronics E-30-PT-EWP is a telephone-line-powered, handsfree push-to-talk entry phone designed for demanding outdoor and high-ambient-noise environments. Built on a 14-gauge louvered 316 brushed stainless steel faceplate with permanent laser-etched graphics, this unit delivers vandal-resistant communication at loading docks, parking structures, building entries, and industrial facilities where conventional intercom mic sensitivity would pick up constant background noise. The E-30-PT-EWP (often searched as E 30 PT EWP) adds Enhanced Weather Protection (EWP) for installations exposed to direct precipitation or condensing humidity up to 100% — covering the applications that standard enclosures cannot handle.
Telephone-line power means no separate power supply, no low-voltage circuit, and no power-over-Ethernet infrastructure. If there is a POTS loop or PBX extension with at least 24V DC talk battery and 20mA loop current, this phone operates. That simplicity is its primary advantage in retrofit or remote-site deployments where pulling additional power runs is expensive or impractical. For wiring guidance in multi-device entry environments, see the PoE switches and entry power planning section for hybrid infrastructure comparisons.
Key Features
- Push-To-Talk Mic Architecture: The mic sensitivity is held at a low level until the TALK button is pressed — critical for noisy industrial, transit, or exterior environments where open-mic designs would transmit constant background clutter to the answering station. This is not a software setting; it is the fundamental operating mode of the E-30-PT platform.
- 14-Gauge 316 Brushed Stainless Steel Faceplate: 316-grade stainless resists chloride corrosion, making it the correct choice for coastal installations or facilities using chlorine-based cleaning agents (food processing, healthcare exteriors). Louvered design with laser-etched graphics maintains legibility without adhesive labels that weather and peel.
- Enhanced Weather Protection (EWP): The EWP variant is rated for humidity up to 100% condensing — not just splash resistance. This covers installations in car washes, covered parking entries, or industrial wash-down zones where moisture ingress is a recurring failure mode on standard-grade phones.
- -30°F to 150°F Operating Temperature: That lower bound is meaningful in northern climates and unheated parking structures. Upper limit of 150°F handles metal enclosures in direct sun in hot climates without thermal shutdowns.
- Up to 5 Programmable Numbers: Supports touch-tone or pulse dialing with up to five stored destinations — useful for facilities with a security desk, backup dispatch, and emergency contact all reachable from a single entry point without requiring a keypad by the visitor.
- 6-Digit Security Code: Restricts programming access to authorized personnel. On sites with multiple entry phones, this prevents field tampering with stored dial sequences without a full service call.
- Blue LED Off-Hook Indicator: Provides clear visual confirmation that a call is active — critical at noisy sites where audio alone may not communicate call status to the user.
- Flush Mount or Surface Mount Options: Ships with a rough-in box for flush mounting. Surface mounting is supported with the optional VE-5x5 enclosure. Both paths keep the 5" x 5" faceplate footprint consistent, which matters for replacement or upgrade projects where the rough-in is already set.
- Telephone-Line Powered (No Separate Supply): Requires minimum 24V DC talk battery and 20mA loop current from the connected line or PBX. Minimum ring voltage of 90VAC RMS ensures compatibility with standard CO and most PBX ring generators. Zero additional power infrastructure required.
Integration & Compatibility
The E-30-PT-EWP connects to any analog telephone line, PBX analog station port, or VoIP ATA that presents a standard POTS interface with sufficient talk battery (≥24V DC) and loop current (≥20mA). It is not an IP device and does not require network configuration. This also means it operates independently of network outages — a useful property for emergency call stations at building entries. Pair with Viking Electronics entry and emergency phone accessories for enclosures, door strikes, and flush-mount hardware within the same product family. For sites building out a broader access control deployment, the E-30-PT-EWP can function as the audio communication layer at controlled entry points while a separate access reader handles credential verification.
Frequently Asked Questions
Q: What is the difference between the E-30-PT and the E-30-PT-EWP?
A: The E-30-PT-EWP adds Enhanced Weather Protection (EWP), which extends the humidity rating to 100% condensing. This is required for outdoor installations with direct precipitation exposure, car washes, or high-condensation environments. The base E-30-PT is suited for sheltered or indoor locations.
Q: Does the E-30-PT-EWP require an IP network connection or PoE?
A: No. The E-30-PT-EWP is telephone-line powered and operates entirely on a POTS loop or PBX analog extension. It requires a minimum of 24V DC talk battery and 20mA loop current. No Ethernet, no PoE switch, and no network configuration are needed.
Q: Can the E-30-PT-EWP be surface mounted, or is it flush-mount only?
A: Both options are supported. The unit ships with a rough-in box for flush mounting. For surface mounting, use the optional VE-5x5 enclosure accessory. The faceplate dimensions are 5" x 5" in both configurations.
Q: How many phone numbers can be programmed into the E-30-PT-EWP?
A: Up to 5 numbers can be stored. The phone supports both touch-tone and pulse dialing. Programming is protected by a 6-digit security code to prevent unauthorized changes in the field.
Q: What is the operating temperature range of the E-30-PT-EWP?
A: The E-30-PT-EWP is rated from -30°F to 150°F (-34°C to 66°C), covering cold-climate outdoor installations and sun-exposed enclosures in hot regions.
Q: Why does the E-30-PT-EWP use a push-to-talk button instead of open-mic handsfree operation?
A: The push-to-talk design intentionally holds mic sensitivity low until the button is pressed. This prevents ambient noise — machinery, traffic, wind — from flooding the call at noisy industrial or exterior sites. It is an architectural choice for intelligibility in high-ambient environments, not a cost reduction.
The E-30-PT-EWP is one of the few entry phones I'd specify without hesitation for an outdoor industrial application — specifically because of how the push-to-talk mic architecture works. Most open-mic handsfree phones fail in loading dock or manufacturing entry deployments not because of hardware failure, but because the answering station hears a wall of ambient noise and can't distinguish the caller. The PTT design on this unit suppresses mic sensitivity at the hardware level until the button is pressed, which solves that problem structurally rather than through DSP tricks that vary by environment.
Technical Highlights:
- 316 Stainless, 14-Gauge: 316-grade (not 304) is the spec to ask for at coastal sites or facilities using chlorinated cleaning agents — 304 will show corrosion within a year in those environments. The 14-gauge construction resists casual vandalism without requiring a separate anti-vandal housing.
- EWP Humidity Rating (100% Condensing): Standard entry phones are rated for splash or rain. EWP means the unit survives full condensation cycling — relevant in refrigerated warehouse entries, covered parking with temperature swings, and car wash facilities where moisture intrusion is persistent rather than incidental.
- Telephone-Line Powered, 24V DC Minimum: The power requirement is low enough that most PBX analog ports and ATAs supply sufficient talk battery without modification. That said, verify loop current at the terminal before installation — a long cable run or undersized wire gauge can drop below the 20mA minimum and cause intermittent operation that's difficult to diagnose after the fact.
Deployment Considerations:
- For flush mounting, the included rough-in box sets the depth at 2.25 inches — verify wall cavity depth before cutting, particularly in prefab or metal-stud construction where cavity depth varies. Surface mount with the VE-5x5 avoids this constraint entirely.
- The 90VAC RMS minimum ring voltage is standard for CO lines but verify on VoIP ATAs — some budget ATAs generate lower ring voltages that will fail to trigger the ring detect circuit reliably.
This unit is the right call for refrigerated distribution center entry points, covered parking structure call stations, and outdoor kiosks at facilities where open-mic phones have already failed — the combination of PTT noise isolation, 316 SS construction, and 100% condensing humidity tolerance addresses the three most common failure modes in those environments simultaneously.
