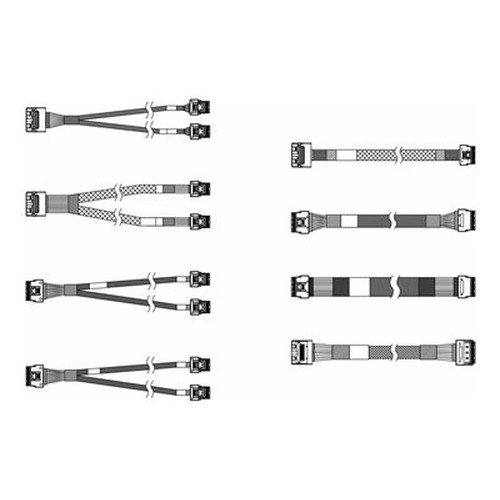

Lenovo 4Z57A82409 Raid/hba Cable Kit

Lenovo 4Z57A82409 RAID/HBA Cable Kit

Overview

The Lenovo 4Z57A82409 is a hardware RAID/HBA adapter cable kit designed to facilitate an upgrade path from onboard SATA ports to a RAID configuration within compatible Lenovo servers. This kit provides the necessary cabling to connect a dedicated RAID controller or Host Bus Adapter (HBA) to your server's storage devices, enabling enhanced data redundancy and performance management for critical applications.

Compatibility

This cable kit is specifically engineered for the Lenovo ThinkSystem ST650 V3 Server. It enables the integration of a hardware RAID or HBA adapter, allowing you to move beyond basic onboard SATA connectivity and implement a more robust storage solution. Ensure your server is configured with a compatible RAID/HBA adapter to utilize this kit effectively.

Installation Notes

Installation requires opening the server chassis and physically connecting the provided cables between the chosen RAID/HBA adapter and the server's drive bays. Refer to the ThinkSystem ST650 V3 server documentation and the documentation for your specific RAID/HBA adapter for detailed wiring diagrams and installation procedures. Proper cable management is recommended to ensure airflow and prevent strain on connectors.
