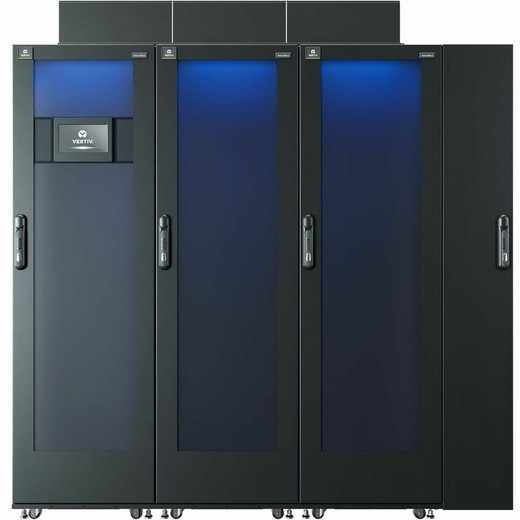

Vertiv SR2N02010NAA1 2-Rack 10kW Integrated Row Cooling System

Overview

The Vertiv SR2N02010NAA1 is a factory-configured, two-rack integrated row cooling solution engineered for edge deployments and compact server rooms where 10kW total IT load is the design target and a single active cooling unit is operationally acceptable. The system ships as a pre-integrated pod — two 42U x 600mm x 1400mm racks, one cooling unit, two 30A PDUs, and a 10kW PMC distribution unit — all in a 2,100mm linear footprint. That pre-integrated architecture eliminates field-assembly variables that routinely create problems in edge site deployments where on-site mechanical expertise is limited.

This configuration carries the Vertiv SR2 designation and sits at the entry point of the SR2 family — the smallest two-rack, base-redundancy SKU in the lineup. Understanding where it sits in the matrix matters before ordering: if your load profile or reliability requirements are different, several sibling configurations exist within the same family.

Key Features

• 10kW Total Capacity, 5kW Per Rack: The 10kW envelope divided evenly across two 42U racks gives you 5kW per rack — appropriate for mid-density compute loads. If you're running blade chassis or high-core-count servers that push 8–10kW per rack, this SKU is undersized; move to a higher-capacity variant in the SR2 family before the deployment is in.
• 42U x 600mm x 1400mm Rack Form Factor: The 600mm width is the narrower standard footprint, which fits most enterprise server rooms and edge closets. The 1,400mm depth accommodates full-depth 1U and 2U servers without front/rear clearance compromises. At 42U, you have full standard rack height — no need to sacrifice density for the integrated cooling architecture.
• Single Cooling Unit — No Redundancy: The
