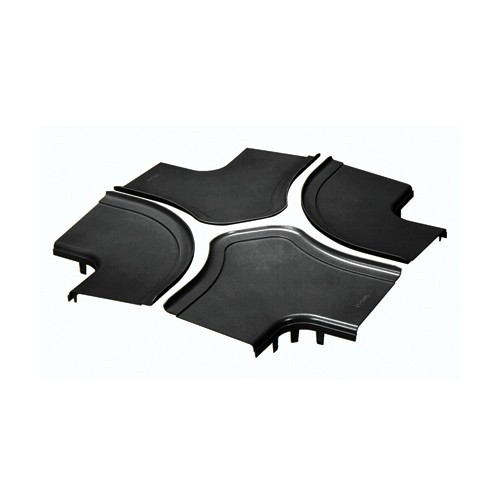

Panduit FRFWCSC12LBL FiberRunner 4-Way Cross Split Cover

Overview

The Panduit FRFWCSC12LBL is a 4-way cross split cover engineered for the FiberRunner 12x4 fiber routing system — the purpose-built solution for managing optical fiber at cross-pathway intersections in data centers and central telecommunications offices. Where four fiber runs converge, this cover snaps over the cross fitting to enclose and protect cables while leaving the pathway accessible for adds, moves, and changes. If you're building or extending a FiberRunner 12x4 infrastructure, this cover is the correct mating component for every 4-way cross junction in the run.

Constructed from a polycarbonate/ABS blend, the cover balances impact resistance with the dimensional stability needed in dense, thermally variable data center environments. At 22.25 inches in length and 2.88 inches in height (73.2 mm), the FRFWCSC12LBL is sized to span the full profile of the 12x4 cross fitting without gaps that could allow cable sag or ingress of debris at the junction point.

Key Features

• 4-Way Cross Configuration: Designed specifically for 4-way cross intersections in the FiberRunner 12x4 system — not a universal cover. Each opening aligns precisely with the cross fitting's four pathways, so technicians can route fiber in any of the four directions without bending radius violations at the junction.
• Split Cover Design: The split construction allows installation and removal without pulling fiber out of the pathway — a meaningful time saver during MACs (moves, adds, changes) in live rack environments where taking a fiber run offline is not an option.
• Polycarbonate/ABS Material: This material combination provides higher impact resistance than pure ABS alone and better dimensional stability than polycarbonate alone under temperature cycling — appropriate for data center hot aisle/cold aisle environments where temperature swings occur regularly.
• RoHS Compliant: Meets the Restriction of Hazardous Substances directive, which matters for deployments in regulated industries and for organizations managing environmental compliance across their infrastructure procurement.
• UL Listed — Optical Cable Guidance Assemblies to 2024A: UL certification to standard 2024A confirms the assembly meets safety requirements for optical cable guidance, giving AHJs (authorities having jurisdiction) a clear approval path and simplifying inspection in commercial and carrier facilities.
• Telcordia GR-63-CORE Compliant: GR-63-CORE covers physical protection requirements for network equipment in carrier environments — seismic, thermal, fire, and airborne contaminants. This cover's compliance means it's validated for central office (CO) and carrier hotel deployments where Telcordia qualification is a procurement requirement.
• NEBS Level 3 Compliant: NEBS (Network Equipment Building System) Level 3 is the most stringent tier, required for equipment installed in operating telephone company (OTC) central offices. Specifying NEBS Level 3 components avoids costly re-qualification when deploying into carrier or colocation facilities with strict equipment standards.
• Black Finish: The black color is standard for data center and telecom infrastructure aesthetics and reduces visible dust accumulation compared to lighter covers — practical in high-density environments where visual cleanliness matters during audits or customer walkthroughs.

Integration and Compatibility

The FRFWCSC12LBL is designed exclusively for the Panduit FiberRunner 12x4 system. It will not fit FiberRunner 4x4, 6x4, or other channel sizes — verify your installed FiberRunner channel dimensions before ordering. The cover mates with the 4-way cross fitting (not tee, elbow, or straight sections); ordering the wrong cover type for a tee or elbow junction is the most common procurement error on FiberRunner builds.

For broader fiber optic cable management planning, the FiberRunner system pairs with Panduit's full line of cross, tee, elbow, and end-cap covers, plus the underlying channel assemblies. If you're specifying a complete run, confirm cover types for every fitting type in the pathway — cross, tee, and elbow covers are each distinct SKUs. See the full Panduit cable management catalog for complementary components.

In data center infrastructure builds, the FiberRunner system is commonly deployed above ladder rack or integrated into overhead cable management zones. For high-density fiber installations, pair with appropriate fiber optic patch panels and trunk cable assemblies to complete the structured cabling architecture. When planning fiber routing in carrier or CO environments, NEBS Level 3 compliance of this cover aligns with the qualification requirements of the broader FiberRunner system — confirm the full pathway assembly's compliance documentation before finalizing a carrier-grade spec.

What's in the Box

• 1x Panduit FRFWCSC12LBL FiberRunner 4-Way Cross Split Cover (Black, Polycarbonate/ABS)

Frequently Asked Questions

Q: Is the FRFWCSC12LBL compatible with FiberRunner channels other than 12x4?

A: No. The FRFWCSC12LBL is sized and designed exclusively for the FiberRunner 12x4 system. It will not fit 4x4, 6x4, or other FiberRunner channel sizes. Check your installed channel dimensions before ordering.

Q: Does this cover require tools to install or remove?

A: The split cover design is intended to allow installation and removal in live environments without disturbing routed fiber — no tools are required for the cover itself. However, access to the cross fitting may be constrained by adjacent cable density in high-fill pathways.

Q: Is the FRFWCSC12LBL RoHS compliant?

A: Yes. The FRFWCSC12LBL meets RoHS (Restriction of Hazardous Substances) compliance requirements as stated in its listed standards.

Q: What does NEBS Level 3 compliance mean for my deployment?

A: NEBS Level 3 is the highest tier of the Network Equipment Building System standard, required for equipment installed in operating telephone company central offices. Specifying NEBS Level 3 components simplifies qualification in carrier and colocation environments with strict equipment requirements.

Q: How many covers come per package and per carton?

A: Each package contains 1 cover. Cartons ship in quantities of 5.

Q: What fitting type does this cover match — cross, tee, or elbow?

A: This cover is specifically for 4-way cross fittings in the FiberRunner 12x4 system. Tee, elbow, and other fitting types require their own distinct cover SKUs.

Ted Perry

The FRFWCSC12LBL is one of those components that looks simple on the surface but causes real project delays when it's ordered wrong or omitted from the BOM. I've seen FiberRunner builds stall because the integrator specified straight covers for every fitting type and didn't account for distinct cross, tee, and elbow SKUs — this cover's 22.25-inch length and 4-way opening geometry are specific to the cross fitting, not interchangeable with any other position in a FiberRunner 12x4 run.

Technical Highlights:

• NEBS Level 3 + Telcordia GR-63-CORE: Both certifications together signal that this cover is validated for carrier central office environments — not just data center commercial grade. If your project involves a CO or carrier hotel, these are the compliance checkboxes the facility manager will ask for.
• UL 2024A Listed: UL listing for optical cable guidance assemblies gives inspectors and AHJs a clear approval path. In jurisdictions where the AHJ scrutinizes fiber pathway components, this listing eliminates back-and-forth during inspection.
• Polycarbonate/ABS Construction: The material blend handles the thermal cycling of data center environments without the brittleness that can develop in pure polycarbonate over time — relevant in high-density zones where covers are regularly removed and reinstalled during MACs.

Deployment Considerations:

• Confirm the installed FiberRunner channel is 12x4 before ordering — the cover dimensions are not adjustable and will not fit narrower or wider channel profiles. A 6x4 cross fitting requires a different cover SKU entirely.
• In very high-fill fiber runs, the split cover may be difficult to seat cleanly if cables are already at or near channel capacity — plan cover installation before the channel reaches maximum fill, not after.

For carrier central office and NEBS-qualified colocation builds where compliance documentation is part of the acceptance package, the FRFWCSC12LBL's GR-63-CORE and NEBS Level 3 ratings make it the defensible specification choice at every 4-way cross junction in a FiberRunner 12x4 pathway.
