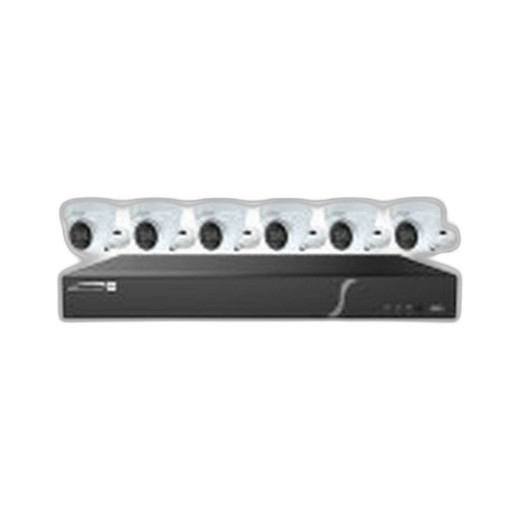

Speco Technologies ZIPL86T2 8-Channel Zip Kit with 6 Turrets and 2TB Storage
Overview
The Speco Technologies ZIPL86T2 is a complete 8-channel IP surveillance system designed for integrators and installers seeking a turnkey solution for small to medium-scale deployments. This kit bundles everything required for rapid deployment: six turret-format IP cameras, an 8-channel network video recorder with 2TB built-in storage, and integrated cabling infrastructure. The ZIPL86T2 eliminates the procurement complexity of sourcing individual components, reducing lead times and configuration errors while maintaining compatibility across all hardware elements.
When this is the correct choice
The ZIPL86T2 is ideal for retail locations, small commercial properties, educational facilities, and multi-unit residential deployments where a pre-integrated solution accelerates installation and reduces deployment risk. The 8-channel capacity with six cameras included provides flexibility to add two additional cameras later as coverage requirements expand. Integrators benefit from the bundled approach when clients require immediate operational visibility and standardized hardware sourcing. The turret camera form factor offers flexible mounting on ceilings, walls, or pendant installations, adapting to varied venue layouts without requiring separate bracket accessories.
When to choose a different model
If your deployment requires more than eight camera channels, requires outdoor weatherproofing beyond standard indoor ratings, or demands specialized form factors (panoramic, compact bullet, or body-worn), evaluate standalone camera and recorder options that allow custom configuration. Organizations with existing surveillance infrastructure requiring integration with third-party VMS platforms may benefit from purchasing individual ONVIF-compatible cameras and selecting dedicated recording hardware separately. High-bandwidth enterprise deployments requiring redundant storage or advanced failover capabilities should consider modular recorder platforms with expansion options.
Optics and field of view
The six turret cameras included with the ZIPL86T2 deliver fixed-focal-length optics optimized for close-to-medium range monitoring. Precise field-of-view specifications and focal length details are available through Speco's technical documentation. The turret design permits 360-degree pan adjustment during installation, allowing integrators to target specific zones without requiring motorized PTZ mechanics, reducing power requirements and installation complexity.
Imaging performance and low light
Each turret camera integrates day/night capability via automatic IR-cut filter switching, enabling continuous operation across lighting conditions. Enhanced low-light performance is supported through progressive sensitivity adjustment. Detailed minimum illumination thresholds and IR specifications are provided in the camera datasheets. The combination of sensor technology and optics delivers usable imagery in challenging lighting environments without requiring external illumination in many installations.
Analytics and edge capabilities
The ZIPL86T2 recorder supports standard video search, timeline review, and event-triggered recording modes common in managed surveillance systems. Advanced analytics such as object detection, people counting, or motion-triggered alerts depend on specific firmware revisions and camera capabilities; consult Speco's current analytics feature matrix for your deployment timeline.
Video encoding and streaming
The system employs H.264 video compression as the primary codec, ensuring broad compatibility with mobile clients, web browsers, and third-party VMS platforms. The 2TB storage capacity accommodates extended retention periods depending on recording frame rate, resolution, and compression ratios selected. Typical retention ranges from 7 to 30 days for 24/7 operation on a single 8-camera feed; integrators should calculate specific retention requirements based on client retention policies and resolution settings.
Network and security
The ZIPL86T2 is a managed IP system supporting ONVIF Profile S protocol for standardized camera integration and third-party VMS compatibility. Network ports on the recorder support PoE delivery to connected cameras, reducing separate power infrastructure requirements. Secure access controls, user authentication, and encrypted credential storage protect system integrity. Firmware update mechanisms allow patches and security improvements throughout the system lifecycle.
Environmental and durability ratings
The turret cameras are rated for indoor and covered outdoor environments where moisture exposure is limited. Standard environmental ratings for temperature and humidity are documented in the camera specifications. The recorder is designed for climate-controlled equipment enclosures or control rooms with standard operating temperature ranges. Detailed IP and environmental ratings are available upon request.
Power and installation notes
The 8-channel recorder with integrated PoE switch supplies power to all six included cameras via standard network cabling, eliminating the need for separate 12V power supplies at each camera location. A single mains power connection to the recorder supports the entire system. Network installation requires standard Cat5e or Cat6 cabling between the recorder and cameras; cable runs up to 100 meters are supported per Ethernet standards. Installation time is typically 4 to 8 hours depending on cable routing complexity and camera mounting locations.
What is included
- 8-Channel Network Video Recorder with 2TB storage
- Six Turret IP Cameras
- Integrated cabling and connectors
- Power adapter and network cables
- Quick-start installation guide
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Speco ZIPL86T2 during several retail and small commercial deployments, and the bundled approach delivers real value when speed to operation matters. Pulling together eight channels of IP surveillance from disparate vendors introduces compatibility risks and extends procurement cycles unnecessarily. The ZIPL86T2 eliminates that friction—every component is factory-tested and matched, so you deploy with confidence on day one.
Technical Highlights:
- Complete 8-Channel System: Six turret cameras plus 2TB recorder in a single SKU reduces sourcing complexity and ensures hardware compatibility across the entire deployment.
- Integrated PoE Delivery: The recorder's built-in PoE switch powers all cameras over standard network cabling, eliminating supplementary power infrastructure and reducing installation labor.
- H.264 Compression with Extended Storage: 2TB capacity combined with efficient video compression supports 7-30 day retention depending on resolution and frame rate settings, meeting most SMB retention requirements.
Deployment Considerations:
- Plan cabling runs during site assessment—100-meter Ethernet standard limits apply. Pre-run conduit significantly reduces installation time and future reconfiguration complexity.
- Configure retention policies and frame rates at commissioning. The 2TB storage is fixed, so balancing resolution and retention upfront prevents mid-lifecycle reconfiguration challenges.
The ZIPL86T2 is a straightforward choice when your client needs reliable, standards-based surveillance without customization complexity. I've consistently seen integrators complete installations 20-30% faster with bundled kits compared to sourcing components separately. This system delivers on that promise while maintaining solid ONVIF interoperability for future expansion or VMS migration if client needs evolve.
