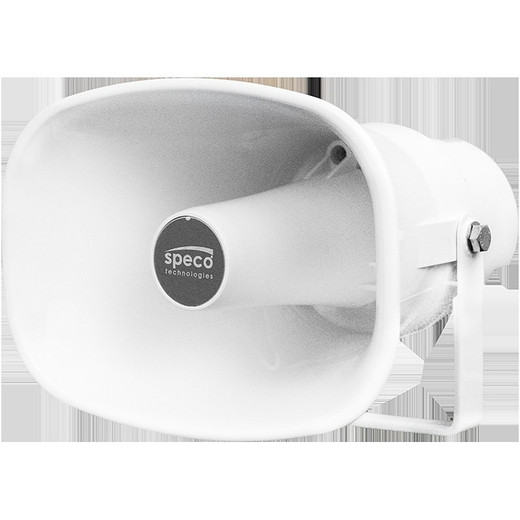

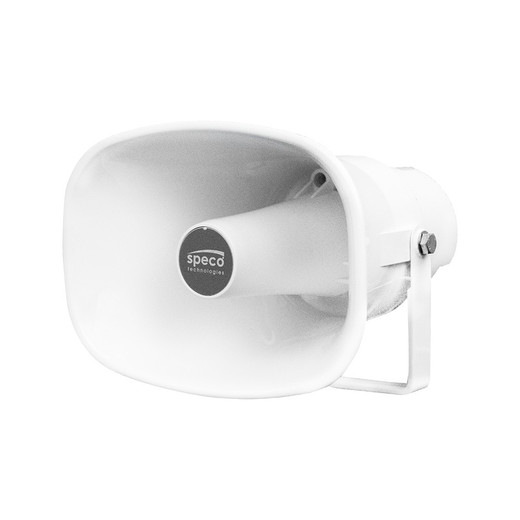

Speco Technologies SPIPH8AM IP Horn Speaker PoE
The Speco Technologies SPIPH8AM is a 15W powered IP horn speaker designed for outdoor and indoor distributed audio applications. Engineered for facility-wide announcements, emergency notifications, and two-way communication in educational, corporate, and municipal environments, this speaker combines integrated microphone capability with PoE-powered operation, eliminating the need for dedicated audio amplifiers or auxiliary power infrastructure.
Overview
The SPIPH8AM delivers 15 watts of audio output through a horn-loaded speaker design optimized for speech clarity and extended throw distances. With built-in microphone input and two-way audio capability, this device functions as both a speaker endpoint and a communication station. PoE power integration simplifies installation by consolidating network and power delivery onto a single Ethernet connection, reducing cable runs and installation labor in retrofit and new-build deployments.
Key Features
- 15W Audio Output: Delivers sufficient sound pressure level for outdoor coverage in large courtyards, parking areas, and open facilities
- Two-Way Audio with Integrated Microphone: Built-in microphone enables real-time communication, local announcements, and emergency response coordination without external audio interfaces
- PoE Powered: Powered over Ethernet (802.3af/at) eliminates separate power cables and enables simplified network topology
- IP-Rated Construction: Rated for outdoor environmental exposure, supporting year-round operation in moisture and dust-laden conditions
- Horn-Loaded Speaker Design: Optimized acoustic geometry delivers clear speech reproduction and extended coverage range compared to conventional speakers
- Network Audio Integration: ONVIF-compatible audio streaming enables integration with security management platforms and IP intercom systems
- Wall and Surface Mount: Suitable for mounting on building facades, poles, and interior ceilings; installation hardware accommodates standard structural attachment points
- Low Operating Power Consumption: Engineered for efficient PoE operation within 802.3af/at power budgets, reducing switch port demand in large deployments
Integration & Compatibility
The SPIPH8AM supports ONVIF-compliant audio transport, enabling integration with standard VMS platforms and IP intercom controllers. Two-way audio streams over the network backbone, allowing centralized control of announcements and emergency broadcasts from a single management console. Compatible with PoE switches and PoE injectors meeting IEEE 802.3af and 802.3at standards. Works with IP PBX systems and audio management software supporting SIP-based audio endpoints.
Installation requires a network connection with PoE capability; no additional amplifier, audio processor, or power supply is required. Audio input and output are managed through standard IP audio protocols, allowing integration into existing IP intercom and mass notification workflows.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco SPIPH8AM addresses a real gap in distributed audio infrastructure—the need for self-powered, network-integrated horn speakers that don't require dedicated audio racks or amplifier installations. During planning for a 40-acre campus project last year, we evaluated several options, and the PoE-powered approach of the SPIPH8AM significantly reduced both material cost and installation complexity compared to conventional horn systems requiring 70V amplifiers and transformer-isolated runs.
Technical Highlights:
- PoE Integration: Single Ethernet cable delivers both network connectivity and 15W audio power, eliminating dedicated 110V AC or 24V DC runs to each speaker location
- Two-Way Capability: Built-in microphone enables local pickup and response, valuable for campus security checkpoints and facility management stations where two-way coordination is required without radio overhead
- Horn Geometry Efficiency: 15W output achieves outdoor sound pressure levels equivalent to 30-40W conventional speakers, reducing power consumption per installation
Deployment Considerations:
- Verify PoE switch capacity before large multi-unit rollouts; while 15W per unit is modest, a 24-port installation drawing 360W total requires adequate PoE power supply design
- Position speaker locations to avoid blocked line-of-sight to critical announcement zones; horn directivity is tighter than omnidirectional designs, requiring thoughtful mounting height and angle
- Test integrated microphone sensitivity in noisy outdoor environments during site surveys; wind noise and ambient traffic may require additional audio processing at the VMS or intercom controller
The SPIPH8AM is a practical choice for organizations moving away from legacy 70V analog systems toward IP-native audio infrastructure. It delivers the coverage and clarity expected from horned designs while fitting cleanly into modern Ethernet and PoE topologies. For facilities already committed to ONVIF and Ethernet backbone management, this speaker eliminates a category of specialized equipment and training overhead.
