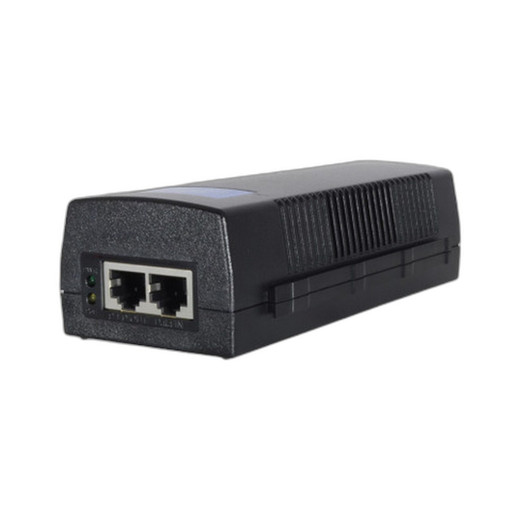

Speco Technologies POEINJ60 60W PoE Injector
Overview
The Speco Technologies POEINJ60 is a 60-watt midspan PoE injector designed to deliver reliable power to networked security cameras, access control devices, wireless access points, and other IP endpoints where a PoE-capable network switch may not be available or where additional power capacity is required. Unlike switch-based PoE solutions, the POEINJ60 installs inline between an existing non-PoE network port and your powered endpoint, eliminating the need for expensive switch upgrades or running separate power cables to camera locations. The 60-watt budget accommodates either multiple simultaneous PoE and PoE+ devices or a single high-power endpoint, providing deployment flexibility across mixed-device installations.
Key Features
- 60-Watt Power Budget: Continuous 60W output means you can run multiple standard PoE cameras (typically 5–15W each) from a single injector, or allocate full power to a demanding single device like a high-end PTZ or access control reader. This avoids the undersizing that forces costly switch replacements in retrofit scenarios.
- 802.3af and 802.3at (PoE+) Support: Both standard PoE and PoE+ device classes are supported, so you're not locked into low-power endpoints. High-draw cameras or powered dome units that require 25–30W work reliably without additional power supplies.
- Gigabit Ethernet Pass-Through (10/100/1000 Mbps): Data rates are unaffected — full 1Gbps throughput on both input and output ports means the injector introduces no network bottleneck or latency, critical for uninterrupted video streaming and real-time command responsiveness.
- Passive Midspan Design: No configuration, no software, no drivers required. Simply connect AC power and existing Ethernet to the input, then connect your powered device to the output. The injector transparently overlays DC power on standard Ethernet cabling without any active management layer.
- Thermal Management: Built-in thermal protection prevents damage and system shutdown when sustained high-power loads approach maximum capacity. Longer device lifespan and reduced field service calls in continuous-duty deployments.
- LED Status Indicators: Power and device connection LEDs provide immediate visual feedback for troubleshooting in the field — no need to trace cables or access a management console to verify operation.
- Universal AC Input (100–240V): Single injector works across North American, European, and international voltage standards, simplifying spare inventory and supporting global multisite rollouts.
Integration and Compatibility
The POEINJ60 operates transparently in any Ethernet network. It requires no VLAN configuration, no IP address assignment, and no integration with your management software — it simply passes data frames while injecting power. Any ONVIF-compliant camera, access control system, or networked device that accepts standard PoE input will operate without modification. The passive design means there is no single point of software failure: if the injector loses power, the data path remains intact and your network continues operating normally.
When deploying multiple POEINJ60 units in larger facilities, you can cascade them or position them near camera clusters to create distributed power delivery nodes. Each unit is independent, so a failure in one injector does not affect others. This approach is especially practical in warehouse automation and large-format retail environments where camera locations are spread across multiple zones and running a single centralized PoE switch would require prohibitively long cable runs.
Deployment Guidance
The POEINJ60 excels in retrofit installations where existing network infrastructure uses non-PoE cabling or where camera sites are beyond the practical distance limits of a centralized PoE switch. Install the injector near the powered device to minimize voltage drop over long cable runs — Cat6 or higher-grade cabling is recommended when operating at or near the 60W maximum. In outdoor or harsh environments, mount the injector in a network cabinet or weatherproof enclosure to protect against dust and moisture. For multi-camera deployments, confirm total device power draw does not exceed 60W; if it does, provision a second POEINJ60 unit on a separate power and data path.
Frequently Asked Questions
Q: Can the POEINJ60 power multiple cameras simultaneously?
A: Yes. The 60-watt budget supports multiple standard PoE cameras (typically 5–15W each) running in parallel, or a single high-power device. Calculate your total endpoint draw and confirm it does not exceed 60W.
Q: Does the injector require configuration or a management interface?
A: No. The POEINJ60 is a passive device — simply connect AC power input and Ethernet, then attach your powered endpoints to the output port. No software, drivers, or network management required.
Q: Will the POEINJ60 work with any IP camera?
A: Any ONVIF-compliant camera or networked device that accepts standard PoE (802.3af) or PoE+ (802.3at) input will operate with the POEINJ60. Non-standard or proprietary power interfaces are not supported.
Q: What happens if I exceed the 60-watt budget?
A: The injector's thermal protection will trigger, shutting down power delivery to prevent device damage. Confirm your total endpoint wattage before deployment. If necessary, provision a second POEINJ60 on a separate circuit.
Q: Does the injector introduce latency or affect network performance?
A: No. The POEINJ60 passes data transparently at full gigabit speeds with no protocol overhead, latency, or bandwidth reduction.
Q: Can I mount the POEINJ60 outdoors?
A: The injector itself is not rated for outdoor exposure. Mount it in a network closet, equipment rack, or weatherproof enclosure. Keep the AC input dry and protected from direct rain.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The POEINJ60 solves a real problem: you've got non-PoE network infrastructure, cameras are scattered across your site, and a centralized PoE switch upgrade is not in the budget. This injector delivers 60 watts of continuous power inline, so you can retrofit an existing gigabit Ethernet run without pulling new cable or replacing your network backbone.
Technical Highlights:
- 60W Continuous Power Budget: Covers 3–4 standard PoE cameras (5–15W each) or a single PoE+ device. Do the math on your endpoints before deploying — oversizing here is cheap insurance against field service calls.
- Gigabit Pass-Through: No data bottleneck. Full 1Gbps throughput maintains real-time streaming and command latency at acceptable levels, especially important for analytics-heavy or motion-triggered recording systems.
- Passive Design, No Management: No software to patch, no IP address to assign, no dashboard to monitor. Power loss does not break the network path. This simplicity is an advantage in unstaffed or remote deployments where you do not want another device requiring oversight.
- Thermal Cutoff Protection: If total connected load creeps above 60W, the injector shuts down rather than cooking itself. It is not graceful, but it is safer than a silent failure.
Deployment Considerations:
- Confirm your total endpoint wattage before field deployment. A miscalculation forces a second site visit. Use a power meter if devices are not clearly rated.
- Mount the injector indoors in a cabinet or closet. The unit itself has no weatherproof rating — rain and dust will damage the AC input and internal components. Do not tempt it.
- For long cable runs (50m+), use Cat6 or higher-grade cabling to minimize voltage drop. Undersized cable at maximum power load can starve your endpoint of the last 1–2 volts it needs.
- In cascaded or multi-unit deployments, each POEINJ60 is independent — a failure in one does not affect others. This is a genuine advantage for fault tolerance.
The POEINJ60 is the right choice for retrofit camera installs, warehouse zones, and retail environments where camera locations exceed a single PoE switch's practical reach and you need to avoid a major infrastructure redesign. It is not a substitute for a real PoE switch in large centralized deployments — if you have 20+ cameras and a dedicated network closet, a managed PoE switch is simpler and more scalable. But for distributed installs, scattered endpoints, and sites where the network backbone is already in place, this injector pays for itself in avoided switch upgrades and cable pulls.
