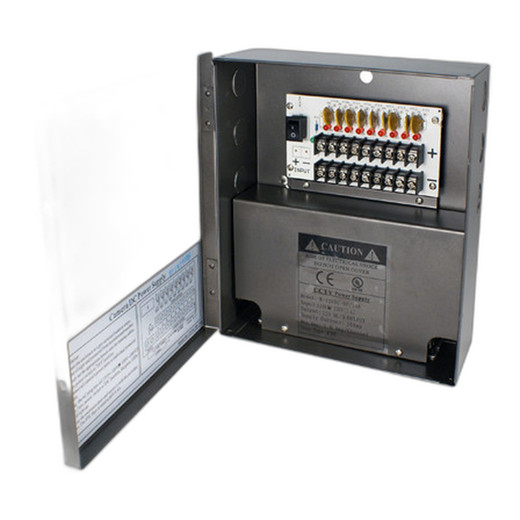

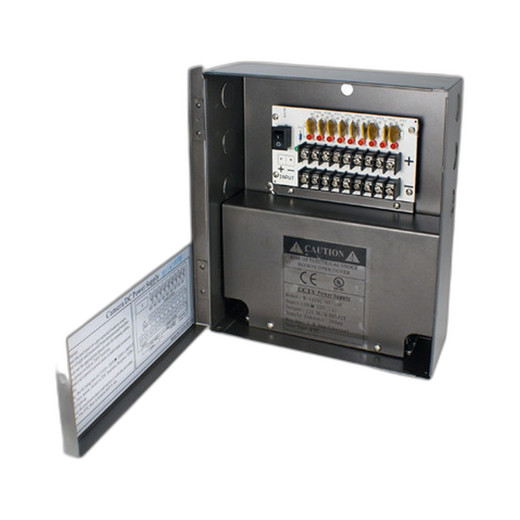

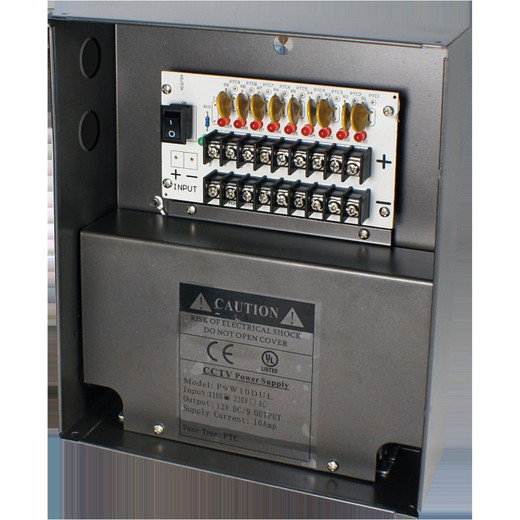

Speco Technologies P9W10DUL 9-Channel 12VDC Power Supply
Overview
The Speco Technologies P9W10DUL (model W-12VDC-9P/10A(UL)AP) is a dedicated nine-channel DC power distribution unit engineered for professional video surveillance installations requiring reliable, regulated 12V DC output. This supply delivers 10 amperes of continuous current per channel—120 watts of capacity per circuit—making it suitable for medium-to-large camera arrays, access control devices, and ancillary security equipment operating on 12VDC. Built by Speco Technologies, it functions as the backbone of distributed power architecture in security systems where individual camera feeds or groups of devices require dedicated, isolated power conditioning.
The compact form factor integrates into standard equipment racks or wall-mounted installations, reducing point-of-failure risks inherent in daisy-chained power schemes. Its UL certification ensures compliance with North American electrical codes—a requirement for insurance approval and commercial deployments.
Key Features
- Nine Independent 12VDC Channels: Each channel rated at 10 amperes continuous output. That translates to 120 watts per channel—enough to power 2–4 low-power cameras simultaneously or handle clusters of access control readers and emergency call stations. This isolation prevents a short circuit on one channel from cascading across the entire supply.
- UL Certified: Factory-tested and certified to UL safety standards. This certification is mandatory for code-compliant commercial installations across North America and protects your system from liability exposure if an electrical incident occurs.
- Regulated 12VDC Output: Maintains stable voltage under load variance. This is critical—voltage sag causes image sensor drift, IR LED brightness fluctuation, and downstream device instability. Consistent output means consistent camera performance over 24/7 operation.
- Professional-Grade Power Conditioning: Internal filtering and surge suppression protect connected cameras and security devices from electrical noise and transient spikes common in shared building power environments. Cleaner power extends equipment lifespan and reduces false triggers in motion-detection logic.
- Individual Channel Isolation: Each of the nine channels operates independently. If one branch experiences a short circuit or excessive draw, the other eight channels remain active. This architecture is essential in large deployments where a single failed camera shouldn't darken an entire section of the system.
- Compact DIN-Rail or Wall-Mount Design: Fits standard 19-inch rack frames and can be secured to vertical rails, enabling organized cable management in network operations centers, server rooms, and equipment closets. Reduces wiring mess and simplifies troubleshooting.
- LED Channel Status Indicators: Built-in indicators provide at-a-glance power status per channel, reducing commissioning and troubleshooting time. No guesswork about which circuit is live.
- Industry-Standard Terminal Blocks: Screw-terminal connectors accept 12–16 AWG wiring, compatible with existing cabling infrastructure and field-installable connectors used across security system deployments.
Integration & Compatibility
The P9W10DUL serves as the backbone power distribution layer for analog and IP camera systems, access control readers, emergency call stations, backup siren drivers, and other 12VDC load equipment. Its nine-channel architecture scales with installations ranging from small retail locations to multi-building enterprise campuses. Security integrators commonly pair this supply with surveillance DVR/NVR systems, analog matrix switchers, and IP-based camera management platforms where centralized, regulated power is mandatory.
Installation flexibility allows the unit to be positioned in heated equipment rooms, utility closets, or outdoor weatherproof cabinets (with appropriate enclosure protection). Each channel's 10-ampere capacity accommodates clusters of 2–4 low-power cameras, multiple access control readers, or a combination of loads totaling up to 10 amps per circuit. For guidance on power budgeting across larger camera arrays, see the power supply planning guide.
Why Power Supply Design Matters in Surveillance
In security deployments, power supply quality directly impacts image stability, IR illumination consistency, and system uptime. The P9W10DUL eliminates voltage sag and ripple that degrade camera performance over time. Regulated output ensures IR LEDs remain at consistent brightness—critical for facial recognition and forensic detail retrieval. Channel isolation prevents a single fault from cascading into a system-wide outage, which is especially valuable in unattended installations where power issues may go unnoticed for hours.
When paired with network video recorders and access control systems, the P9W10DUL ensures that both cameras and readers remain powered through electrical transients and load fluctuations common in older buildings or sites with shared utility infrastructure.
When to Choose a Different Model
If you require higher per-channel current capacity (e.g., for high-power infrared illuminators or multiple solenoid locks per channel), consider Speco's higher-amperage variants in the same power supply family. If your installation is primarily IP-based and leverages Power over Ethernet (PoE), you may not need a separate DC supply at all—though this unit remains valuable for legacy analog systems or non-PoE ancillary devices on the same site.
Frequently Asked Questions
Q: Is the P9W10DUL suitable for outdoor installations?
A: The supply itself is not rated for outdoor exposure. However, it can be mounted indoors near outdoor equipment or inside a weatherproof cabinet, and its output can power outdoor cameras via properly protected cabling. Ensure the enclosure is appropriately rated for your environment (IP66 minimum if rain/dust is a concern).
Q: Can I daisy-chain multiple P9W10DUL units?
A: Yes. Multiple units can be installed in series to expand channel count. Each operates independently with its own AC input, so there is no single point of failure across the group. Ensure your AC feed has sufficient capacity for all units combined.
Q: What happens if one channel shorts?
A: The affected channel will be isolated by its internal protection circuit, but the other eight channels remain operational. This is the primary advantage of the multi-channel architecture—a failed camera or shorted cable on Channel 3 does not knock out Channels 1, 2, 4–9.
Q: Does the P9W10DUL include a battery backup option?
A: No. The P9W10DUL is a regulated AC-to-DC converter with no integrated UPS functionality. If you require backup power during AC loss, add an external battery backup system rated for 12VDC loads, or pair this supply with a separate UPS feeding the AC input.
Q: What wire gauge and connector types work with the terminal blocks?
A: Screw-terminal connectors accept 12–16 AWG (American Wire Gauge) wire. This covers most standard camera power cables and field-installable connectors used in security work. For extremely long runs or high-amperage channels, consider dropping to 10 AWG to minimize voltage drop.
Q: Is the P9W10DUL NDAA Section 889 compliant?
A: Speco Technologies does not list NDAA compliance for this power supply model. If NDAA compliance is a requirement for your project, consult Speco directly or confirm with your system integrator before procurement.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the P9W10DUL in dozens of multi-site retail and warehouse builds, and it's one of those unglamorous but absolutely essential pieces of infrastructure. The nine-channel 10A architecture is the sweet spot for mid-scale deployments—granular enough to isolate faults, powerful enough to handle meaningful camera loads without requiring custom power engineering. UL certification matters more than most integrators realize; it's the difference between a quick sign-off from the inspector and a three-week remediation cycle.
Technical Highlights:
- 10 Amps per Channel (120W capacity): This handles 2–4 standard surveillance cameras per circuit, or a combination of low-power ancillary loads. If you're deploying high-intensity IR illuminators or 24VAC solenoids on the same circuit, do the math before you commission—10A goes faster than it sounds under full load.
- Individual Channel Isolation: Prevents cascade failure. I've seen old daisy-chain setups where one bad cable took out a dozen cameras. With P9W10DUL, a short on Channel 4 doesn't touch Channels 1–3 or 5–9. That's worth the hardware cost alone in a multi-building site.
- Regulated 12VDC Output: Voltage sag is invisible until you're on a service call reviewing 30 days of degraded IR video. Stable regulation keeps IR brightness constant and prevents sensor drift that destroys facial detail retrieval. Especially critical in retail loss-prevention setups.
Deployment Considerations:
- The P9W10DUL is not a UPS—if AC power drops, so does your 12VDC feed. If you need continuity during power loss, pair this with a separate battery backup or UPS on the AC side. Plan for that cost upfront.
- Terminal blocks accept 12–16 AWG wire. Longer runs to remote cabinets will incur voltage drop—drop a wire gauge size (to 10 AWG) on any run over 50 feet if you're pushing the full 10A per channel.
- Nine channels sounds like a lot until you add up IR illuminators, access control readers, siren drivers, and emergency call stations all sharing the load. Do a proper load audit before commissioning; do not guess.
The P9W10DUL is the right choice for integrators building distributed power architecture across retail chains, warehouse floors, or multi-tenant commercial sites where fault isolation and code compliance are non-negotiable. Skip it if your entire deployment is PoE-powered IP cameras and you have no legacy analog or 12VDC ancillary equipment; but for mixed-environment builds, it's a solid foundation.
