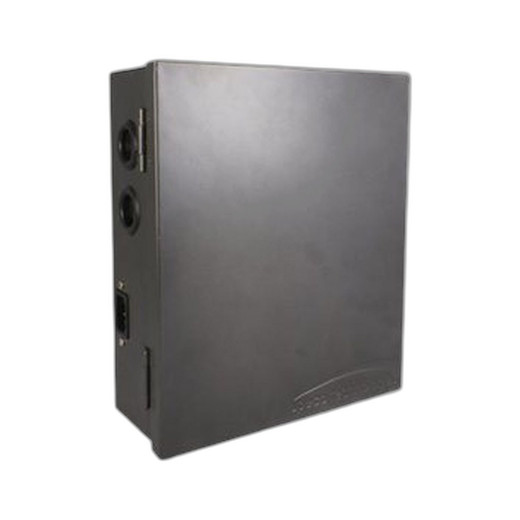

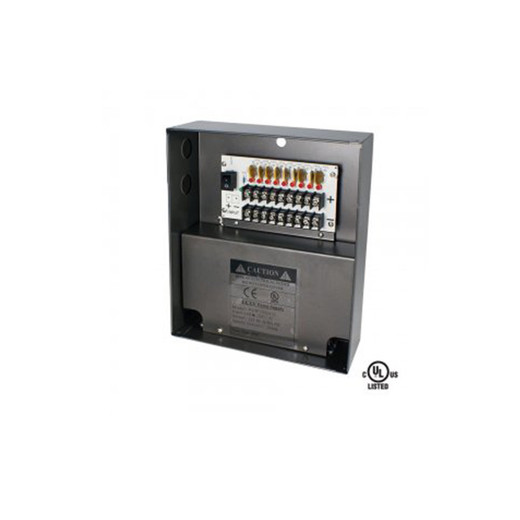

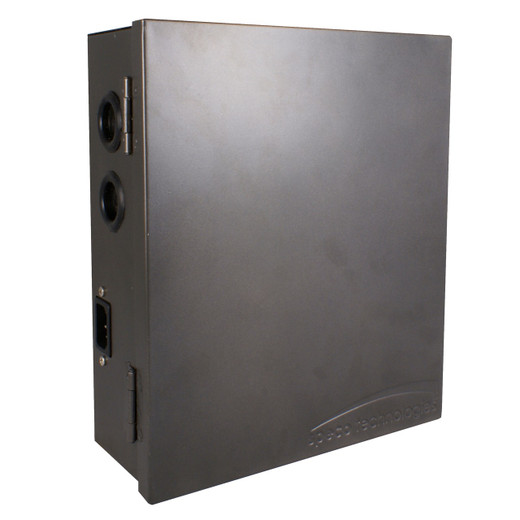

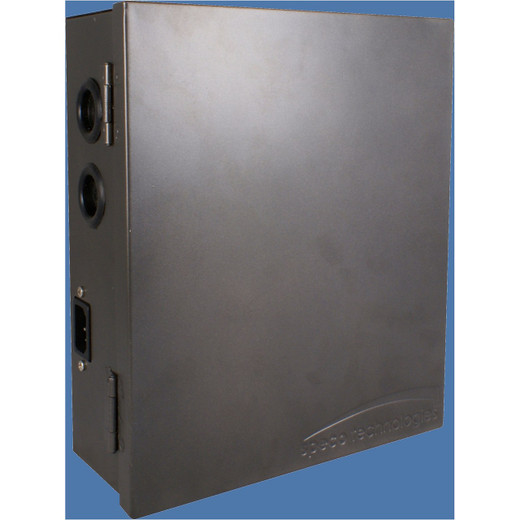

Speco Technologies P4W5DUL 4-Channel DC Power Supply

Overview

The Speco Technologies P4W5DUL is a dedicated 4-channel DC power supply rated for 5 amps per channel output, purpose-built for security camera and access control system installations. This unit delivers +12VDC regulated power to multiple camera feeds simultaneously, with UL certification ensuring safety compliance for professional security integrations. The P4W5DUL model provides the centralized power distribution required for mid-scale analog and hybrid camera deployments where individual power supplies prove impractical or cost-prohibitive.

Key Features

• 4-Channel Output Configuration: Supplies independent +12VDC power to up to four separate security cameras or peripheral devices
• 5 Ampere Per-Channel Rating: Each channel rated at 5A DC output, supporting higher-power camera models and infrared illuminators
• UL Certification: Tested and certified to Underwriters Laboratories standards, meeting electrical safety and performance requirements for North American installations
• Regulated +12VDC Output: Stable voltage delivery minimizes power-related camera issues including IR flicker, lens hunting, and video signal degradation
• Compact Form Factor: Wall-mounted or rack-mounted installation compatible with standard security infrastructure layouts
• Professional Integration: Screw terminal connectors facilitate reliable field connections without proprietary adapters

Integration and Deployment

The P4W5DUL integrates directly into analog CCTV, TVI, CVI, and AHD camera systems where centralized power distribution is required. Security integrators commonly deploy this unit in retail chains, small-to-medium commercial sites, and multi-building campuses where running individual power supplies to each camera location creates installation complexity. Per-channel current limiting provides protection against short circuits and accidental overloads, extending equipment lifespan and reducing warranty claims. The 5-amp per-channel specification supports turret cameras, PTZ units with motor drives, and external IR illuminators that draw higher current than standard fixed-dome installations.

Technical Specifications

Output voltage is +12VDC nominal with regulated delivery across all four channels. The unit is designed for indoor installation environments and operates across standard commercial temperature ranges. UL certification confirms compliance with NEC (National Electrical Code) standards and fire-rating requirements, a critical requirement for insurance-backed installations. Screw-down terminal blocks accept 14 to 12 AWG wire for input and output connections, standard in security panel construction.

Installation Considerations

Integrators should verify total system current draw against the 5-amp per-channel limit when mixing camera types on a single supply. Backup battery configurations can be implemented via separate UPS integration if redundancy is required. The P4W5DUL does not include battery backup internally; it serves as a regulated AC-to-DC conversion point in the power distribution chain. Proper strain relief and cable management during installation prevent mechanical damage to output connectors.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I evaluated the Speco P4W5DUL during a multi-location retail integration where we needed reliable power distribution across analog turret and dome cameras. The 4-channel, 5-amp architecture met our current requirements without oversizing the installation, and UL certification streamlined our compliance paperwork with the site's insurance carrier.

Technical Highlights:

• Per-Channel Amperage: 5A per channel allows simultaneous powering of standard cameras and higher-draw peripherals like external IR illuminators without daisy-chaining or auxiliary supplies
• Regulatory Compliance: UL certification confirms safety testing and fire-rating compliance, eliminating additional third-party inspection requirements
• Voltage Regulation: Stable +12VDC output prevents the IR flicker and lens hunting issues often seen with undersized or non-regulated supplies

Deployment Considerations:

• Verify total system draw against 5A per-channel limits when mixing camera types; undersizing power will trigger protection circuits and create nuisance downtime
• Install the P4W5DUL near the main camera distribution panel to minimize voltage drop over long cable runs to edge cameras
• Plan for future camera additions within the 4-channel footprint; if growth exceeds four feeds, a second unit can be deployed in parallel

For mid-scale analog and hybrid installations where per-camera supplies create cost and installation overhead, the P4W5DUL delivers solid integration performance and regulatory confidence. It's a straightforward, purpose-built component that does one job well.
