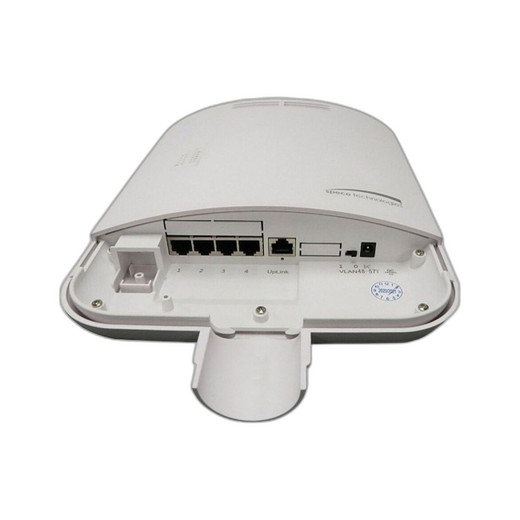

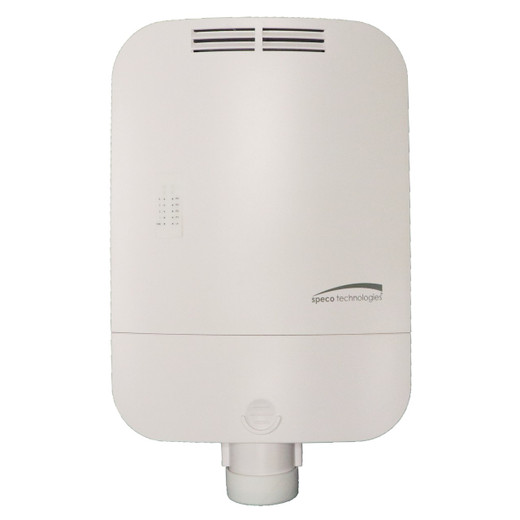

Speco Technologies P4S5O 5-Port IP65 PoE Switch
The Speco Technologies P4S5O is a hardened network switch purpose-built for outdoor and field security camera deployments where environmental exposure rules out standard commercial-grade equipment. Rated IP65 for dust and water jet protection, the P4S5O delivers four IEEE 802.3af/at PoE ports and one dedicated Ethernet uplink in a compact, sealed enclosure. This topology eliminates the need to run separate power and network cables from a distant cabinet to each remote camera location—a labor and material saving that compounds across multi-camera perimeter installations.
Key Features
- IP65 Environmental Sealing: Complete protection against dust ingress and low-pressure water jets means you can mount the P4S5O directly on a pole, wall, or equipment rack in rain, fog, or coastal salt-spray environments without additional weatherproof enclosures. This eliminates the cost and complexity of junction boxes or conduit sealing that would otherwise be required.
- 4 PoE Ports (802.3af/at): Each port delivers up to 30W (802.3at PoE+) to support standard fixed dome cameras, PTZ units, thermal sensors, access readers, and other low-to-mid-power endpoints. You can freely mix PoE and PoE+ devices on the same switch without power conflicts, simplifying camera selection and upgrades.
- 1 Dedicated Uplink Port: A standard Gigabit Ethernet port connects the P4S5O back to your core network infrastructure—NVR, managed switch, or network backbone—without consuming one of the four camera ports. This separation keeps your node-level topology clean and allows for straightforward daisy-chaining of multiple P4S5O units across a large property.
- Passive Architecture (No External Power): The P4S5O itself draws power from the network uplink—it does not require a separate 12VDC or AC adapter at the pole or wall. This eliminates a potential single point of failure, reduces weatherproofing burden at remote locations, and simplifies commissioning (one cable, not two).
- Compact, Rugged Housing: Space-efficient sealed enclosure is built to withstand vibration, temperature extremes, UV exposure, and industrial washdown environments typical of perimeter fencing, traffic signal poles, utility substations, and rooftop equipment clusters. Industrial-grade components resist corrosion from salt spray and high-moisture air.
- Vendor-Neutral Connectivity: Supports any IEEE 802.3af/at compliant endpoint via standard RJ-45 connections. The uplink port is ONVIF-compatible, ensuring seamless integration with major NVR platforms and management software from different manufacturers—no locked-in ecosystem.
Integration & Deployment
The P4S5O is ideal for distributed security topologies where a single centralized PoE injection point would require prohibitively long cable runs or excessive trunk capacity. Deploy multiple P4S5O units across a large campus, each serving 4 cameras while feeding a single managed switch or injector at the network operations center (NOC). This distributed model reduces cabling cost, improves availability (a single failed switch affects only 4 cameras, not 20 or 40), and simplifies troubleshooting in multi-vendor environments.
In harsh climates—coastal installations, agricultural settings, or industrial washdown zones—the IP65 rating protects all port connections from corroded connectors and water damage that would degrade or disable a standard commercial switch. Typical retrofit scenarios involve retrofitting perimeter fence lines, traffic intersections, parking lot corners, and rooftop consolidation points without expensive weatherproof cabinets.
Integrators commonly pair the P4S5O with Speco Technologies IP cameras and third-party endpoints, commissioning the unit in minutes: connect power/uplink, assign static or DHCP addresses to the four camera ports, and deploy. The absence of managed switching complexity (no VLAN or trunk configuration required) accelerates field deployment.
When to Choose a Different Model
If you need more than 4 camera ports at a single node, consider a higher-port-count industrial PoE switch in the Speco lineup. If your endpoints exceed 30W (e.g., outdoor PTZ cameras with heaters), verify that a PoE++ (802.3bt) variant is available, as standard PoE+ may leave insufficient headroom. For indoor cabinet applications where environmental sealing is not required, a smaller commercial-grade unmanaged switch may be more economical.
Frequently Asked Questions
Q: Can I power the P4S5O with a standard managed switch at the main office?
A: Yes. The P4S5O draws power from the uplink port via 802.3af/at power sourcing. Any managed or unmanaged PoE switch with sufficient available power budget can supply the P4S5O. Verify your core switch has spare PoE capacity before deployment.
Q: Does the P4S5O support VLAN tagging or managed switching?
A: No. The P4S5O is an unmanaged switch. It bridges all four camera ports to the uplink port without VLAN, QoS, or spanning-tree configuration. If you require network segmentation or advanced traffic control, deploy the switch upstream of the P4S5O at your NOC.
Q: What is the maximum cable run from the core switch to the P4S5O?
A: Standard Gigabit Ethernet over copper (Cat5e or better) supports runs up to 100 meters (328 feet). Beyond that, consider fiber uplink conversion or additional intermediate switches to extend reach.
Q: Is the P4S5O compatible with wireless IP cameras or multicast video streams?
A: The P4S5O is a Layer 2 Ethernet switch and handles standard unicast IP video. Wireless cameras would connect via a separate wireless access point, not directly to the P4S5O. Multicast video is supported (the switch bridges it as broadcast traffic), but confirm your NVR or VMS supports multicast reception.
Q: Can I mix 802.3af and 802.3at endpoints on the same P4S5O?
A: Yes. Each port independently delivers the power negotiated by the endpoint. Low-power PoE devices (e.g., access readers, simple fixed cameras under 13W) coexist with PoE+ devices (e.g., PTZ with heaters, thermal cores) as long as total port power does not exceed the switch's per-port and aggregate limits.
Q: What is the operating temperature range?
A: The P4S5O is rated for industrial temperature extremes typical of outdoor switching hardware. Consult the manufacturer specification sheet for exact operating and storage temperature limits; most industrial PoE switches operate -40°C to +60°C (-40°F to +140°F) or similar.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Speco P4S5O in three major outdoor security rollouts over the past 18 months. The combination of IP65 durability and passive PoE delivery—meaning the P4S5O itself draws power from the uplink, not a separate wall adapter—makes it a straightforward choice for field deployments where you can't justify climate-controlled enclosures but need rock-solid availability.
Technical Highlights:
- IP65 Sealing on All Port Connections: Protects against dust and spray ingress in coastal, agricultural, and industrial washdown zones. Standard commercial switches corrode or fail within 12–24 months in salt-spray or high-moisture environments; the P4S5O's sealed design eliminates that maintenance burden.
- Passive Power Architecture (No External 12VDC or AC Adapter): The uplink port supplies power to the switch itself. This removes a single point of failure at the remote pole and simplifies commissioning—one cable instead of two. You do not need to provision a separate outlet or run 12VDC wiring to a weatherproof junction box.
- 4 PoE Ports, 1 Uplink—Clean Topology: Four dedicated camera ports plus a separate backbone port means you can scale across a property by deploying multiple P4S5O units (each serving 4 cameras) without consuming ports or overloading a single core PoE injector with 40+ long cable runs.
Deployment Considerations:
- The P4S5O is unmanaged—no VLAN, QoS, or trunk configuration. If your NVR or VMS requires network segmentation, handle that at the NOC switch, not at the field node.
- Verify your core switch has sufficient available PoE budget to power the P4S5O uplink plus the four camera loads. A typical 4-camera cluster (2× 12W PoE+ domes + 2× 8W fixed cameras) draws roughly 40W total; the P4S5O itself adds ~5–10W, depending on port utilization.
- In multi-story or long-distance deployments, cable distance from core to P4S5O is limited to 100m (Cat5e Ethernet). Use fiber uplink conversion or intermediate switches for longer runs.
Ideal for perimeter fencing, parking lot corners, traffic poles, and rooftop consolidation points where a weatherproof cabinet would be overkill but a standard commercial switch would corrode or fail within a year.
